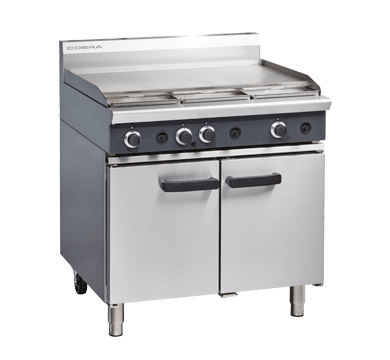

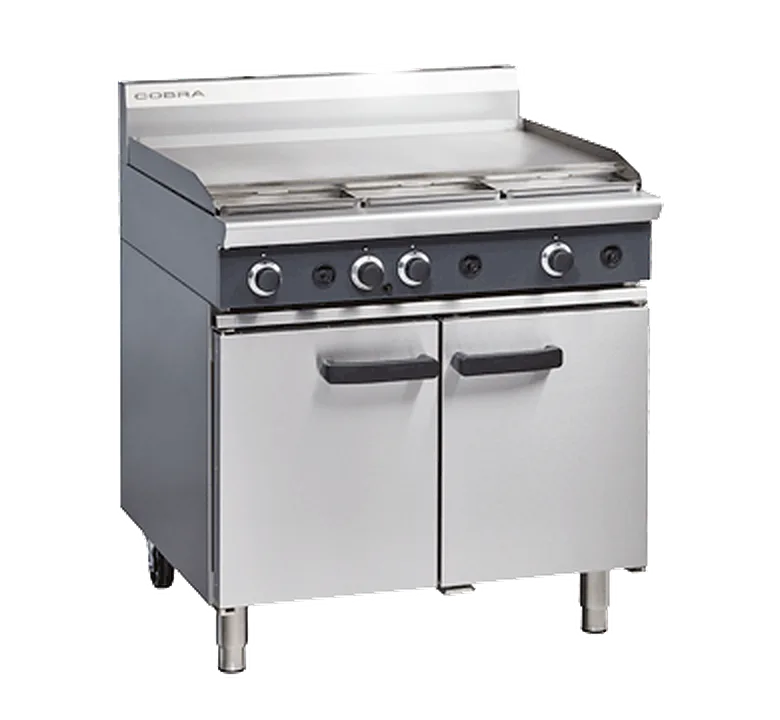

Cobra CR9A – 900mm Griddle Gas Range with Static Oven
Updated:
The Cobra CR9A is a 900mm gas range featuring a full-width griddle plate and a
high-crown static oven, engineered for busy commercial kitchens that require
reliable, high-output grilling and roasting performance. With a 12mm machined steel plate,
powerful burners and a durable stainless-steel frame, it delivers consistent cooking results
across breakfast, grill and prep service.
Why Chefs Choose Cobra
Designed and manufactured by the Moffat Group under the internationally
recognised ISO9001 quality management system, the CR9A is AGA certified and built
for long-lasting daily commercial use. Its modular design integrates seamlessly with the
entire Cobra cookline.
- Full 900mm grilling surface for high-volume service
- Three 20MJ/hr burners delivering even, powerful heating
- High-crown oven with GN 2/1 capacity for fast roasting
- 12mm griddle plate retains heat for consistent results
- Moffat Australia-wide support ensures long-term value
Full-Width Griddle + High-Crown Oven
The CR9A’s 900mm griddle is heated by 3 × 20MJ/hr burners, each with pilot, flame
failure protection and piezo ignition. Below, the 28MJ/hr static oven includes a
French-door system for improved workflow and loading efficiency.
Key Features & Specifications
- Griddle Burners: 3 × 20MJ/hr = 60MJ/hr
- Oven Burner: 28MJ/hr
- Total Gas Input: 88MJ/hr
- Griddle Plate: 900mm wide • 12mm machined mild steel
- Ignition (griddle): Pilot, flame failure & piezo
- Oven Capacity: 1 × GN 2/1 (750×590mm) or 2 × GN 1/1
- Oven Temperature: 100–310°C, thermostatically controlled
- Oven Interior: Vitreous enamelled liner + spill tray
- Oven Doors: Stainless steel French-door design
- Rack Positions: 4-position racking
- Construction: Stainless front, sides & splashback
- Feet/Rollers: 63mm stainless legs (front) + rear rollers
- Dimensions (W×D×H): 900 × 800 × 915mm (1085mm incl. splashback)
- Nett Weight: 136kg
- Packed Weight: 176kg
- Packed Volume: 1.21m³
- Gas Connection: R 3/4″ BSP (130mm from RH side • 20mm rear • 655mm floor height)
- Gas Types: NG & LP available
- Certification: AGA 7225G • ISO9001
- Warranty: 12 months parts & labour
Compliance & Safety (AU)
- Installation by licensed gas fitter required
- Complies with AS/NZS 5601.1 gas installation standards
- Pilot + flame failure on griddle; oven pilot with flame failure
Convenience & Usage Benefits
- Wide griddle ideal for grill menus, breakfast items & production cooking
- French doors improve workflow in tight cooklines
- High-crown oven supports roasting, finishing & batch work
- Easy-clean exterior with removable trays & enamel surfaces
Ideal Applications
- Restaurants & grill venues
- Pubs and bar kitchens
- Hotel & café cooklines
- Food trucks needing high-volume griddle output
- Production kitchens
Smart Energy & Sustainability (Gas)
Total Gas Input
88MJ/hr combined (60MJ/hr griddle + 28MJ/hr oven).
Estimated Running Cost
At ~$0.03 per MJ → approx. $2.64 per hour.
Efficiency Highlights
- 12mm plate improves heat stability & reduces burner cycling
- French-door oven reduces heat loss during loading
- Oven thermostat prevents unnecessary gas consumption
Eco Badges: 🔥 Efficient Heat Retention | 🧼 Easy Clean | 🔧 Long-Life Components
At a glance
- 900mm griddle with static oven
- 88MJ/hr total input
- 12mm machined plate
- 2/1 GN or 1/1 GN oven capacity
