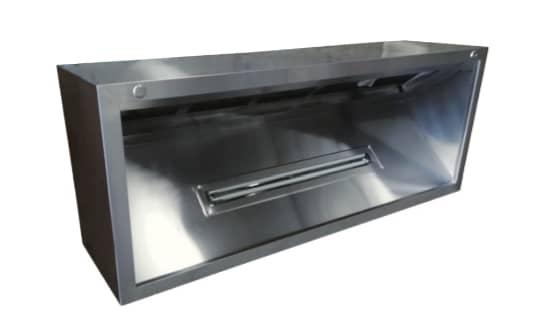

Simcohood SH3700 SH Series Exhaust Canopy – 3700×1000mm
Updated:
At KW Commercial Kitchen, the Simcohood SH3700 delivers
high-capacity ventilation performance with AS 1668 compliant design,
a tapered plenum for faster grease drainage and a durable 3700×1000 mm stainless
construction—ideal for expansive restaurants, hotels and large commercial kitchens needing immediate
installation and reliable exhaust capture over wide cooklines.
Built for Australian large-scale commercial kitchens
The SH3700 SH Series combines fully welded stainless steel,
vapour-proof LED lights, toughened glass panels and
ready-to-use honeycomb filters for dependable daily ventilation.
Key features & specifications
- Capacity: Large canopy footprint for expansive cooklines
- Temperature range: N/A (exhaust canopy without motor)
- Power / Voltage / Fuel: N/A — canopy only; motor/exhaust fan not included
- Dimensions (W×D): 3700 × 1000 mm
- Weight: 222 kg (approx. packaged)

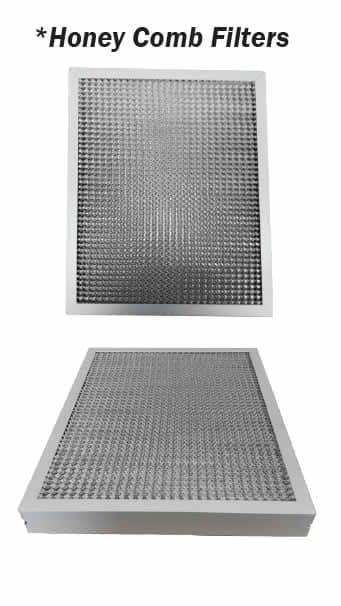

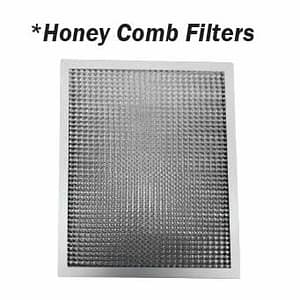

- Construction: Stainless body, galvanised steel top, tapered plenum, fully welded corners, vapour-proof LED lights, Madera toughened glass, honeycomb filters included
Compliance & safety (AU)
- Ventilation: Designed to meet AS 1668 requirements when installed with correct ducting and exhaust fan sizing.
- Installation: Must be installed by qualified mechanical/ventilation trades; comply with council and building code requirements.
Convenience & usage advice
- Enhanced hygiene: Tapered plenum reduces grease retention for faster daily cleaning.
- Operational visibility: Vapour-proof LED lighting improves safety and workspace clarity.
Ideal applications
- Restaurants, cafés, clubs & pubs
- Quick service restaurants, petrol stations & supermarkets
- Hospitality venues, aged care, bakery & pastry kitchens
At a glance
- 3700 × 1000 mm oversized canopy footprint
- AS 1668 compliant design
- Tapered plenum for improved grease control
- LED lighting, toughened glass & honeycomb filters included
Frequently Asked Questions
1) How do I clean it daily without harming finishes?
Use warm water with a pH-neutral cleaner; avoid abrasives or chlorine. Remove and wash honeycomb filters and grease tray daily for optimal airflow and hygiene.
2) What routine maintenance keeps performance stable?
Degrease filters frequently, inspect LED covers and seals quarterly, and schedule annual mechanical servicing for the connected exhaust fan system.
3) What are the power or gas requirements and typical energy use?
The canopy is nonpowered. Actual energy use depends on the external fan/motor selected for your ventilation system.
4) What about installation and Australian compliance?
Install via qualified mechanical contractors. Ensure correct airflow rates, duct sizing and capture efficiency in line with AS 1668 and local regulations.
5) Are spare parts and accessories available?
Yes — filters, lights, trays and glass components can be supplied. Quote SH3700 for exact spare parts.
Running Cost: N/A (nonpowered canopy – fan/motor specified separately).
