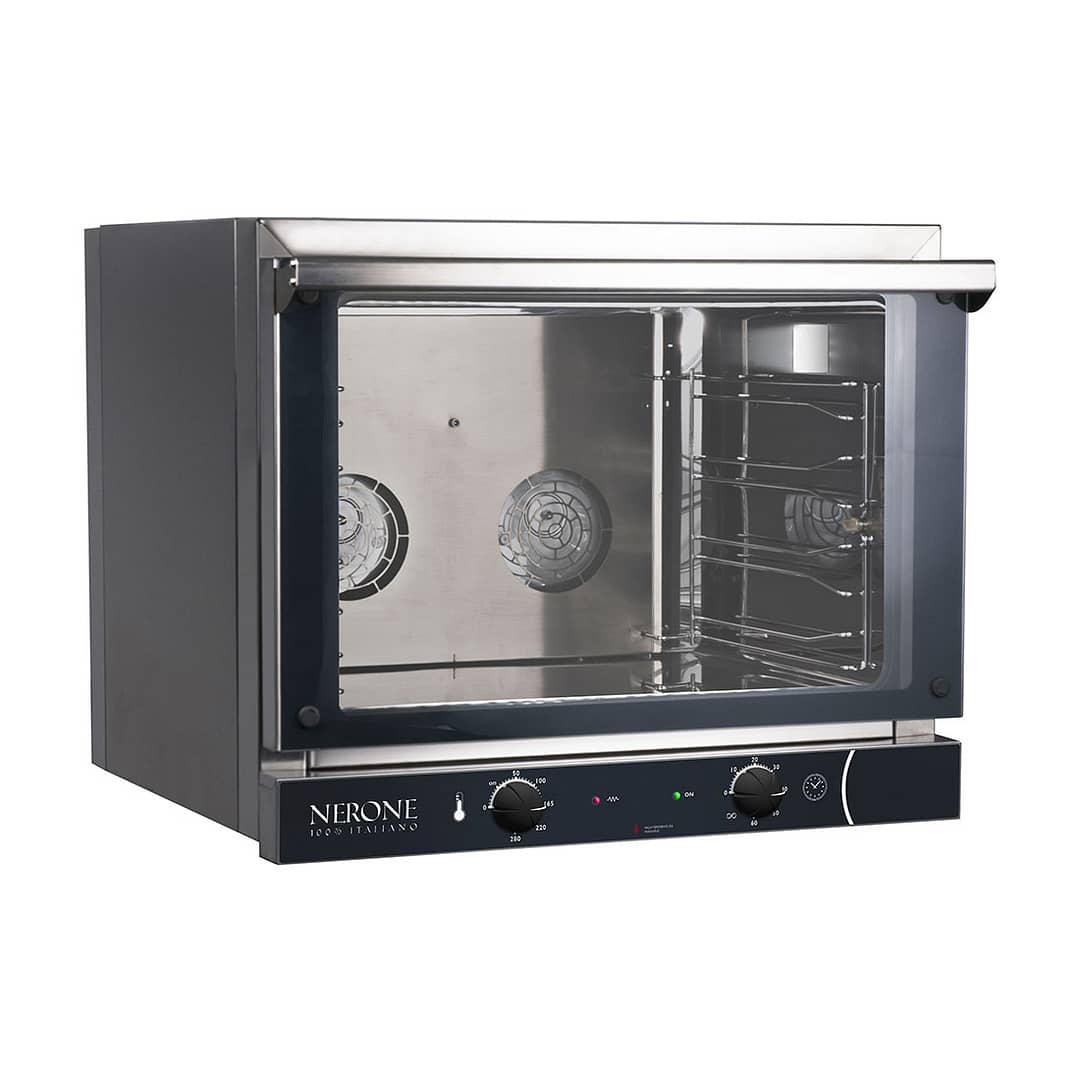

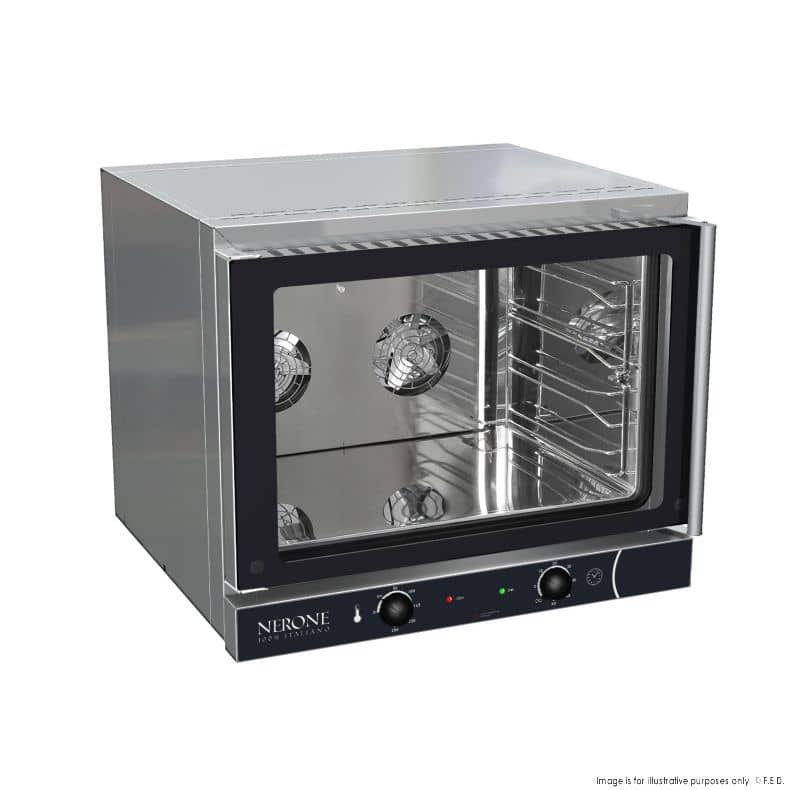

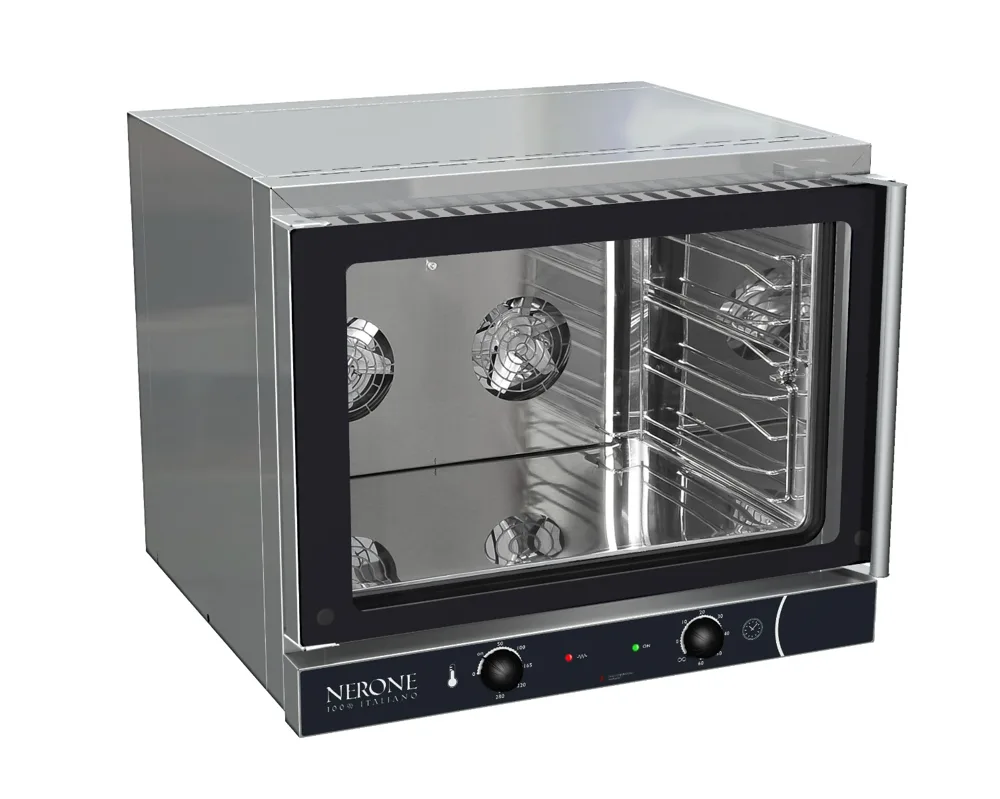

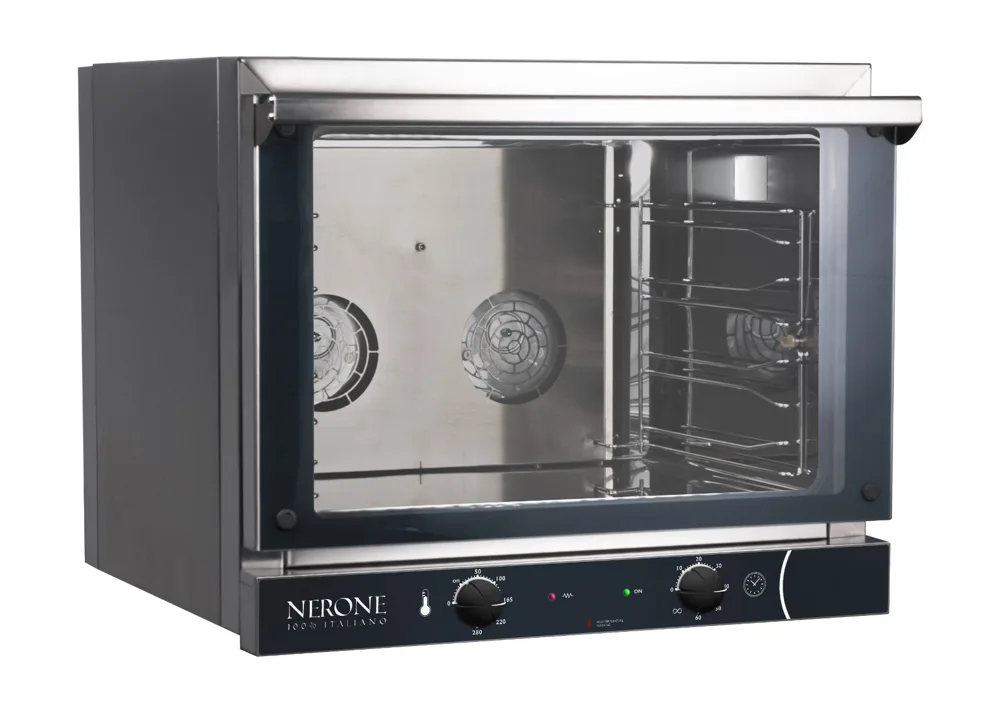

Tecnodom TDE-4CGN Nerone EKO Convection Oven – 4× GN 1/1 Trays
Updated:
At KW Commercial Kitchen, we supply the Tecnodom TDE-4CGN Nerone EKO—a compact 4-tray GN 1/1 convection oven designed for consistent, even results from 50–280°C. Its stainless chamber with rounded corners, tempered low-E glass and fold-down door make daily use and cleaning simple for busy service.
Built for Australian cafés, bakeries & catering kitchens
The TDE-4CGN pairs 84 mm tray spacing, mechanical 2-knob controls with timer and IPX3-rated build for reliable daily performance. Supplied with 1 solid tray + 3 wire racks for immediate flexibility.
Key features & specifications
- Tray capacity: 4 × GN 1/1
- Temperature range: 50°C – 280°C
- Controls: Mechanical; 60-minute or infinite timer; LED alarms
- Power/Voltage/Current: 3.1kW, 240V single phase, ~14A total draw
- Dimensions (W×D×H): 686 × 660 × 580 mm
- Chamber (W×D×H): 560 × 420 × 370 mm; 84 mm between trays
- Weight: 37 kg
- Construction: Stainless steel chamber (rounded corners), tempered low-E glass door, high-resistance hinges, interlocking gasket; IPX3
- Warranty: 1 year parts & labour
Compliance & safety (AU)
- Electrical: RCM compliant.
- Food safety: FSANZ-aligned hot food preparation.
Convenience & usage advice
- Even airflow: Leave a shelf gap for uniform convection colour and texture.
- Easy cleaning: Clean cool glass and ceramic-coated surfaces with a pH-neutral cleaner; avoid abrasives.
Ideal applications
- Cafés & coffee shops
- Bakeries & patisseries
- Catering and canteen kitchens
Frequently Asked Questions
1) How do I clean it daily without harming finishes?
Use a pH-neutral cleaner and microfibre cloth on stainless and glass; avoid chlorine and abrasives. Clean when cool.
2) What routine maintenance keeps performance stable?
Wipe chamber after service; check the door gasket; inspect fan and lamp monthly; annual safety check recommended
3) What are the power requirements and typical energy use?
Connect to a dedicated single-phase 240V circuit; total draw ~14A at 3.1kW; consumption varies by temperature and duty cycle
4) What about installation and Australian compliance?
Maintain 10 cm clearance at sides and rear; place on a level, non-flammable surface; RCM complian
5) Are spare parts and accessories available?
GN trays, racks, lamps, fans and gaskets are available. Quote the model when ordering
Specs source: Tecnodom Nerone user & maintenance manual (GN-4 model data incl. dimensions, chamber size, 3.1kW and 14A; tray spacing 84 mm
