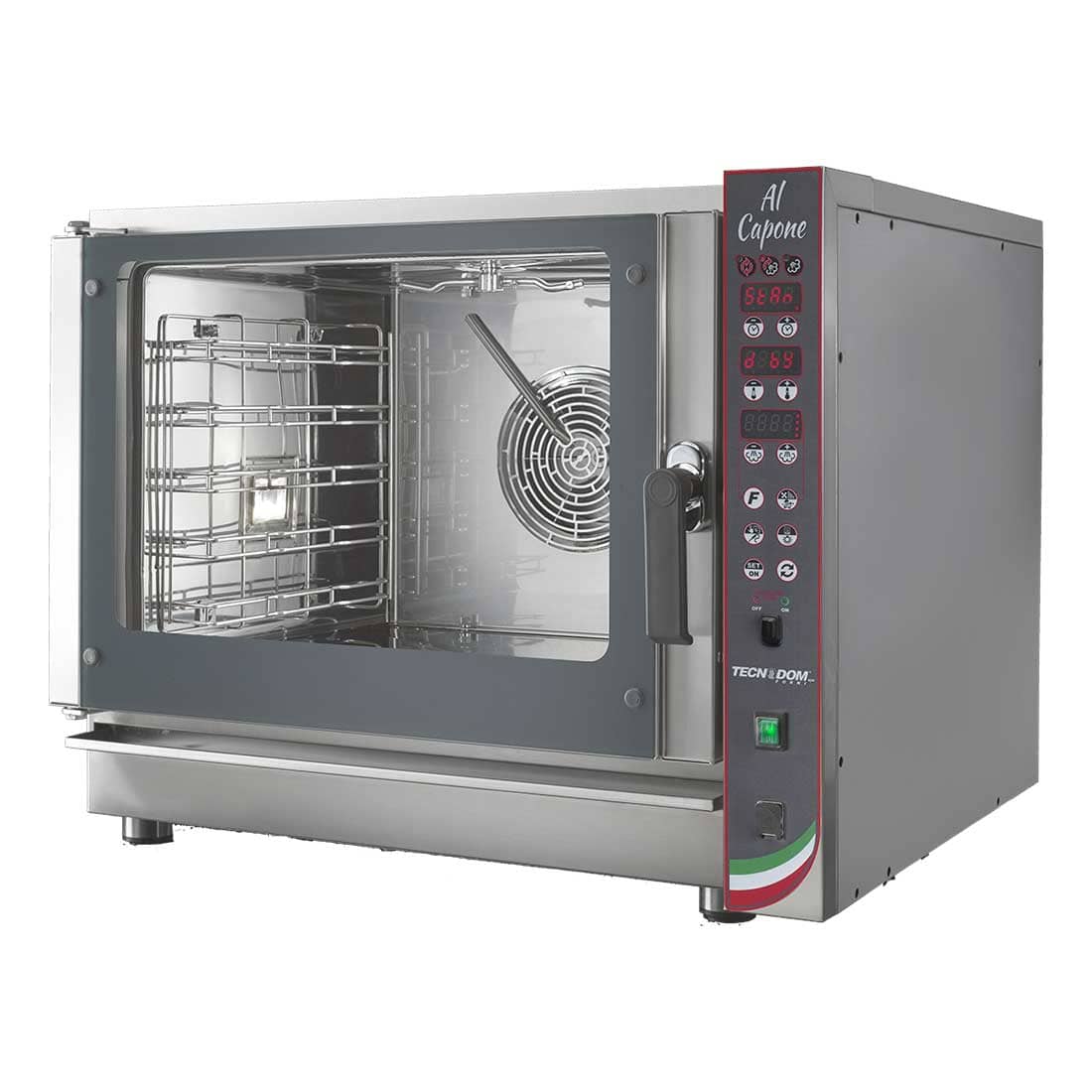

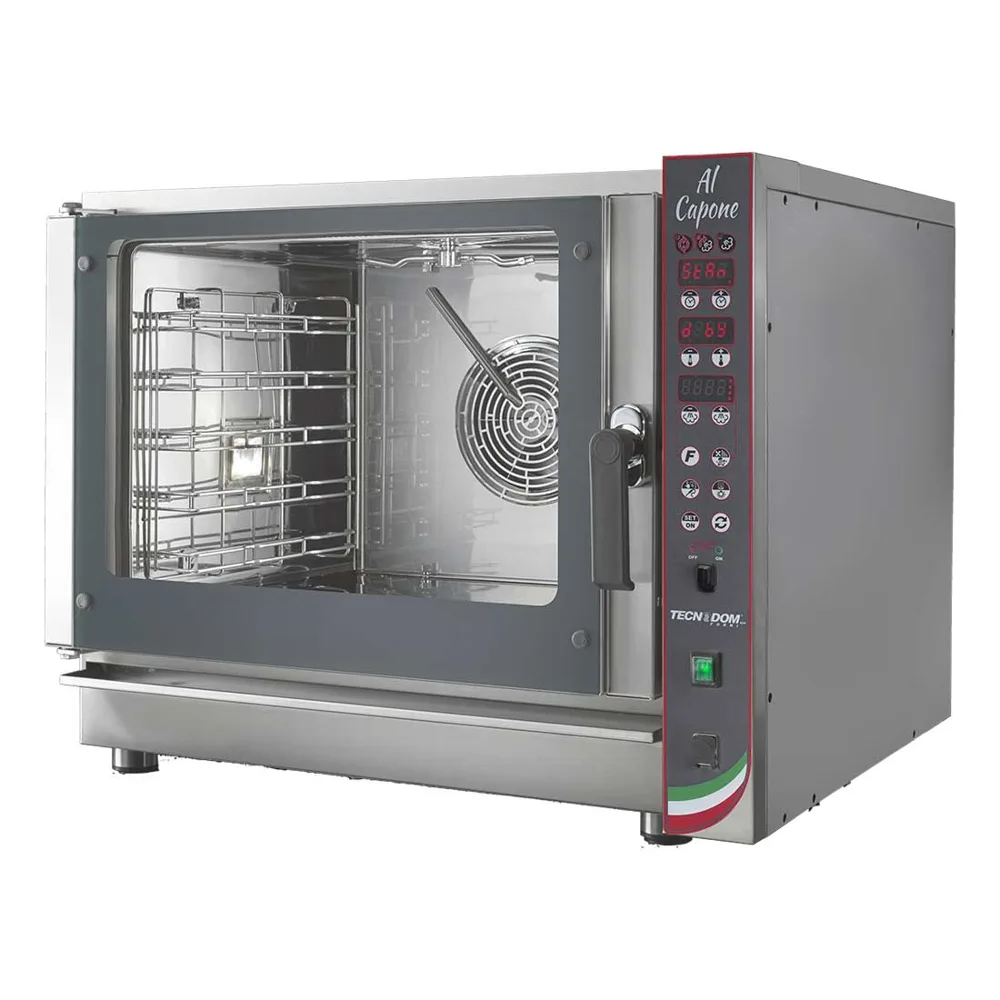

Tecnodom TDC-5VH Nerone CL Digital 5 Tray Combi Oven

The Tecnodom TDC-5VH Nerone CL is a digital five-tray combi oven for commercial batch cooking. It accepts 600 × 400mm or GN trays and includes a core probe, 99 editable recipes and automatic four-stage cleaning; pans and trays are purchased separately.

For commercial kitchens planning five-tray batches and wanting convection, steam and programmable recipes in one oven. The choice of 600 × 400mm or GN trays helps match existing cookware, while the standard multi-sensing core probe supports cooking by food temperature. Plan the oven, pans, electrical supply and installation together.

• Kitchens whose batch sizes fit a five-tray oven.
• Teams wanting to save and edit cooking recipes with up to five stages each.
• Operators using 600 × 400mm or GN trays and wanting a standard core probe and automatic cleaning.

• Kitchens needing ten trays per batch: consider the TDC-10VH Nerone CL instead.
• Sites limited to a single-phase supply: choose an oven suited to the available electrical service.
• Buyers wanting a complete pan package: allow for pans and trays separately.

Start with the largest batch you need to cook at once and the pans you already use. Choose this five-tray model when that capacity fits the menu; compare the six-tray TD-6NE or ten-tray TDC-10VH when you need more tray positions.

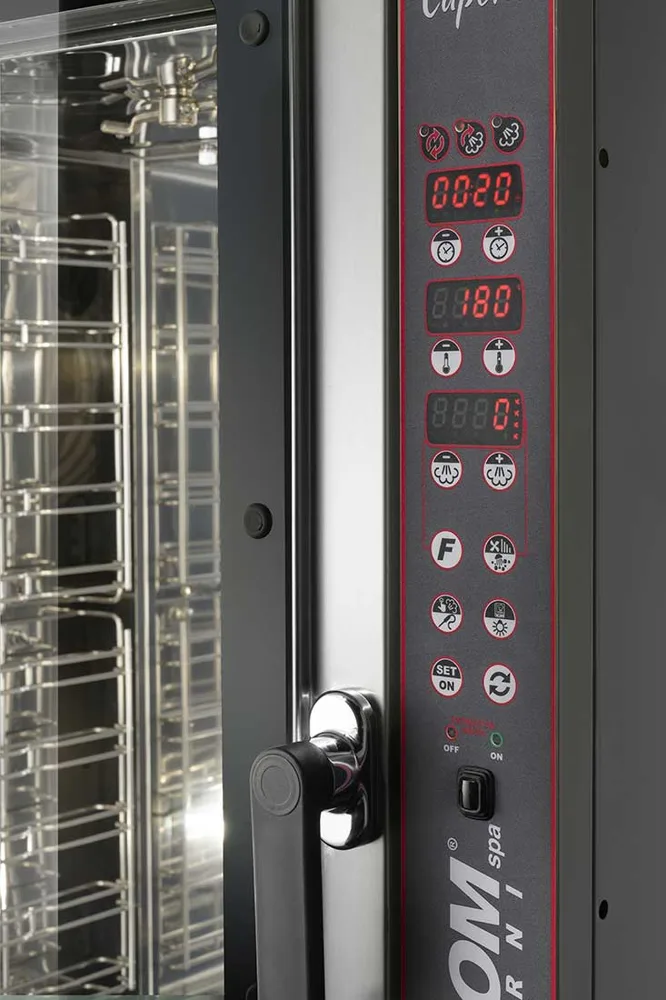

Decide whether your menu calls for convection temperature settings, the 100°C steam function, core-probe cooking or saved multi-stage recipes. The TDC-5VH includes all of these controls, with up to 99 editable recipes and five stages per recipe.

Before ordering, check the dimensions in Key Specifications above against the access route, support position and working space. Have the installer assess the 415V three-phase supply with neutral, water and drainage arrangements, cleaning-liquid lines, ventilation and hood choice for the site.

• Accepts both 600 × 400mm and GN trays.
• Includes a multi-sensing core probe and 99 editable recipes with up to five stages each.
• Four fan speeds, automatic reversing and continuous-operation infinity mode.
• Automatic four-stage cleaning with liquid lines is standard.

• Five tray positions limit the size of a single batch compared with the ten-tray TDC-10VH.
• Requires a 415V three-phase supply with neutral and a site installation assessment.
• Pans, trays and optional hoods add to the equipment you need to select.

• Tecnodom TDC-10VH Nerone CL Digital 10 Tray Combi Oven: TDC-10VH provides ten trays in the Nerone CL range and uses 12.7kW, compared with five trays and 6.45kW for TDC-5VH; both use a 415V three-phase supply.
• Tecnodom TD-6NE Nerone MID Digital 6 Tray Combi Oven: TD-6NE is a six-tray Nerone MID digital combi oven rated at 7.65kW, compared with this five-tray Nerone CL at 6.45kW; both use a 415V three-phase supply.

• Electrical connection. Arrange a qualified electrician to assess and connect the 415V, 6.45kW three-phase supply with neutral. Confirm the circuit and connection arrangements for the installation before ordering.
• Steam, cleaning and extraction. Plan water, drainage and cleaning-liquid connections with the installer, together with ventilation, service access and the optional hood configuration. Follow the installation instructions for the oven supplied.

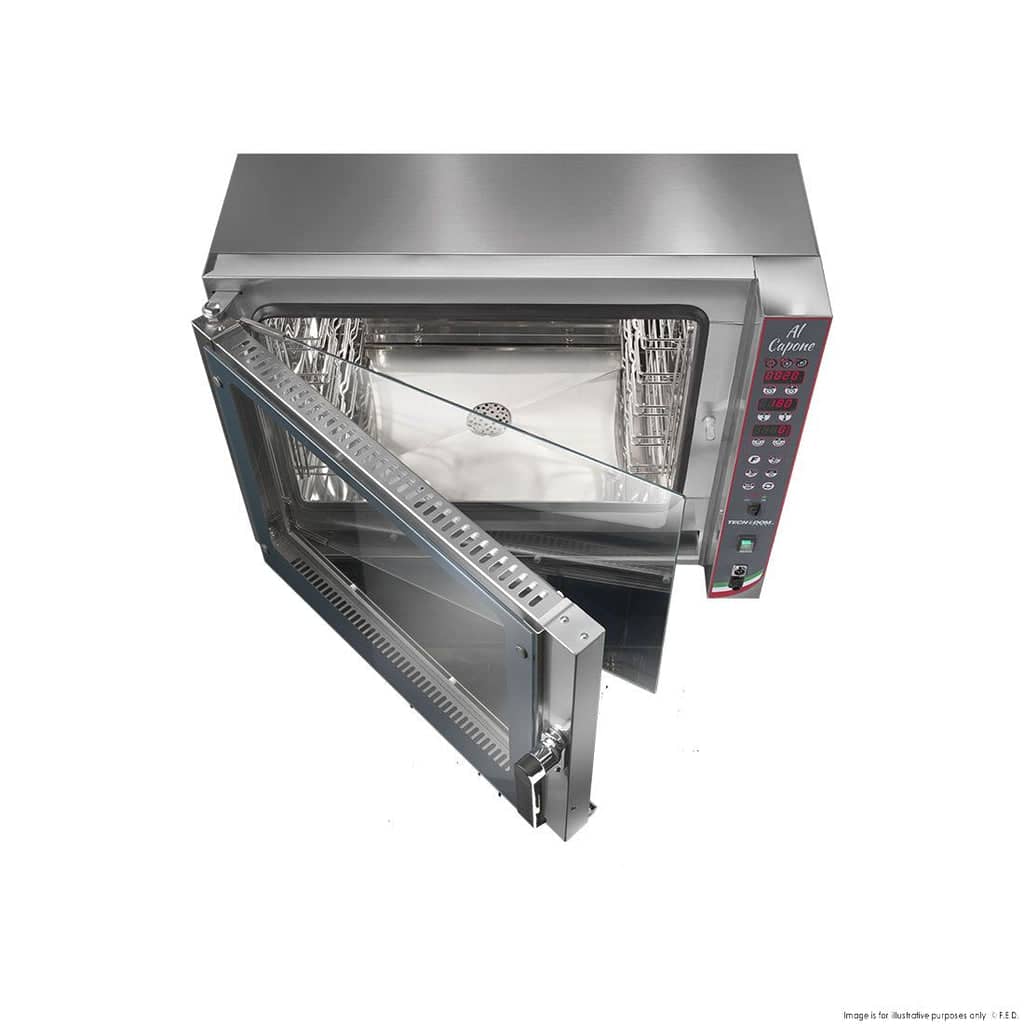

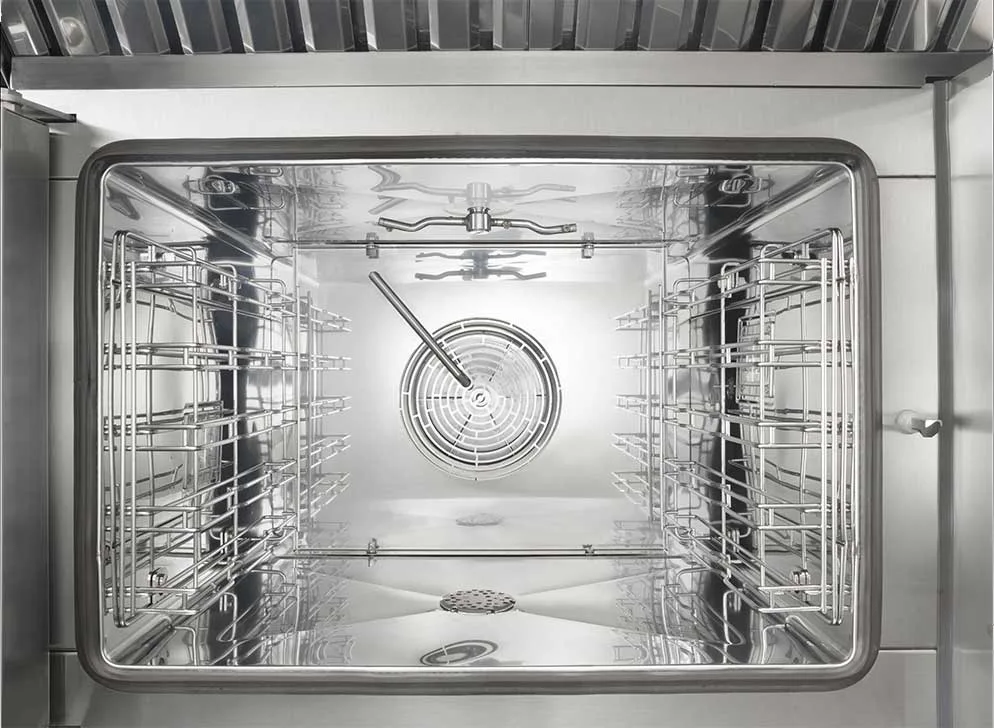

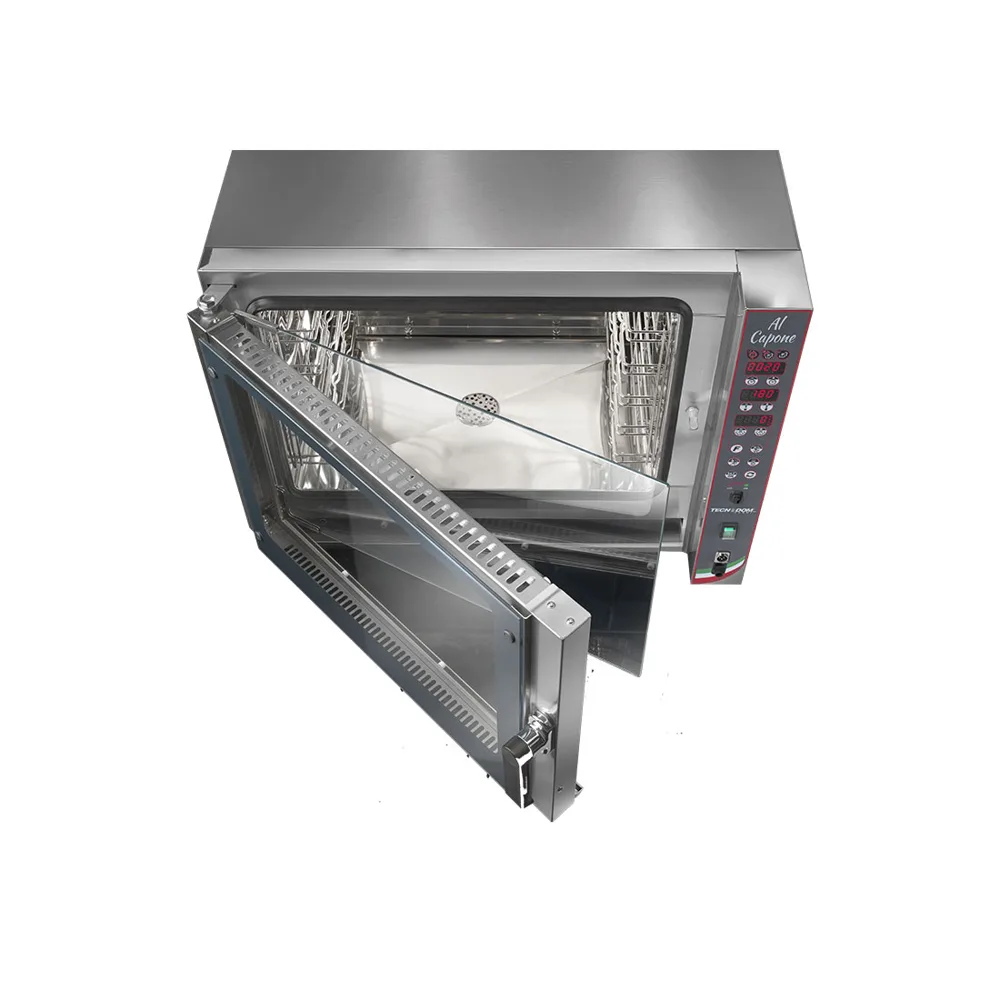

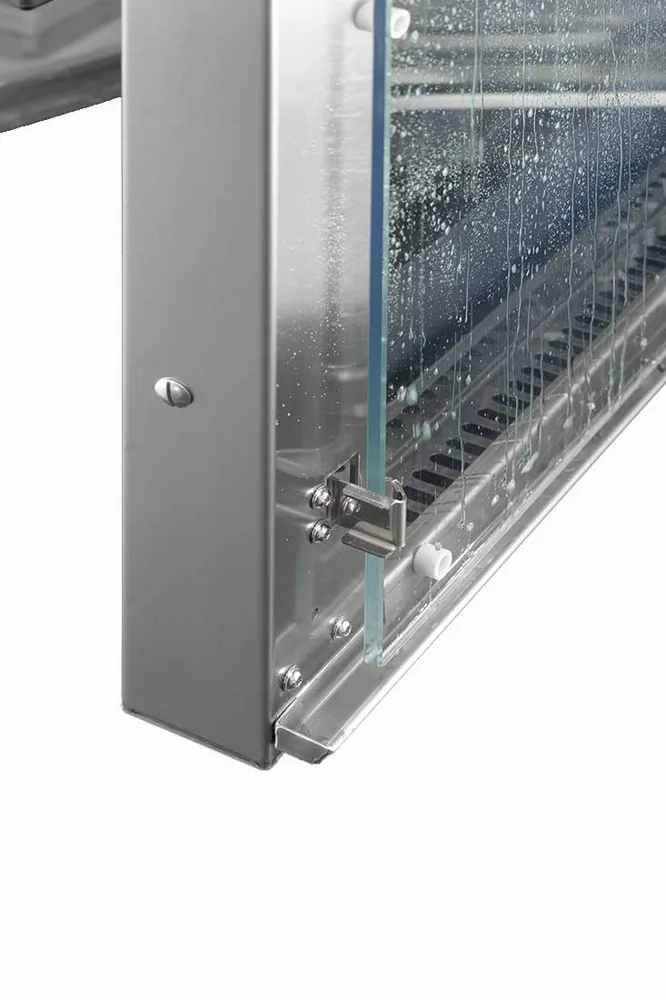

• Positioning and access. Check the dimensions in Key Specifications above and allow working room for the two-stage door opening and removable tray supports. Plan handling and the support position for the oven's 89kg net weight.
• Trays and daily care. Order suitable 600 × 400mm or GN pans and trays separately. Follow the operating instructions for commissioning, loading, core-probe use, automatic cleaning and routine maintenance.

For body dimensions, see Key Specifications above.
