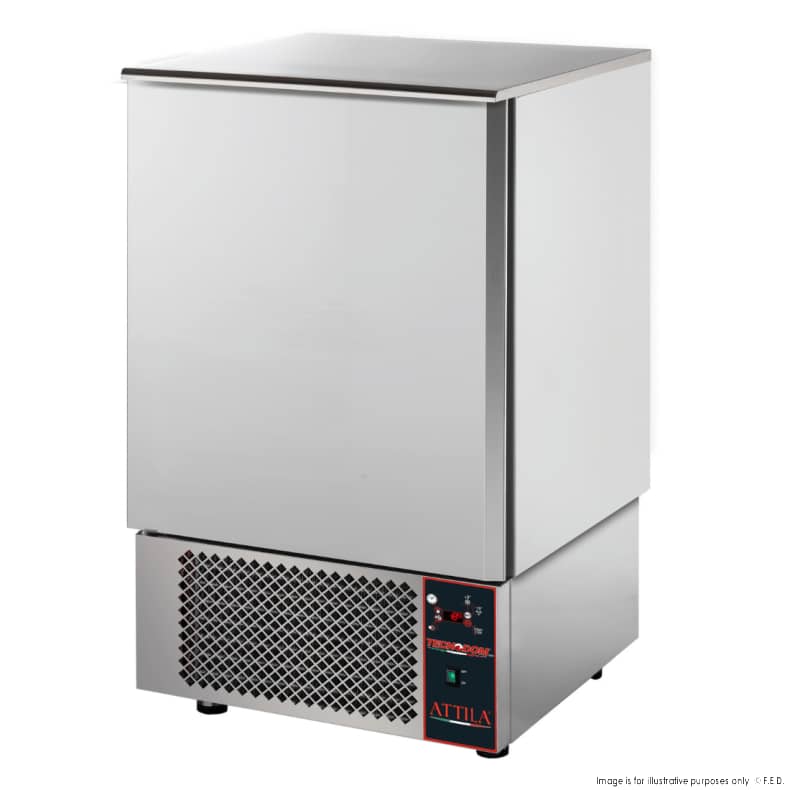

Tecnodom DO10 Blast Chiller & Shock Freezer – 10×GN 1/1, 25kg, 240V
Blast Chill & Freeze with Italian Precision and Compact Efficiency
The Tecnodom DO10 Blast Chiller & Shock Freezer is engineered in Italy for professional kitchens, bakeries, restaurants, and aged care facilities requiring fast cooling and HACCP compliance. Capable of chilling or freezing 25kg of cooked food quickly and safely, the DO10 accommodates 10×GN 1/1 or 600×400 pans (40mm deep). Its built-in digital control panel, stainless steel construction, and compact footprint make it a go-to choice for efficient food preservation and operational flexibility.
Key Features
- Made in Italy: Trusted engineering with HACCP compliance
- Blast Chill: +70°C to +3°C in under 90 minutes (25kg)
- Shock Freeze: +70°C to -18°C in under 240 minutes (25kg)

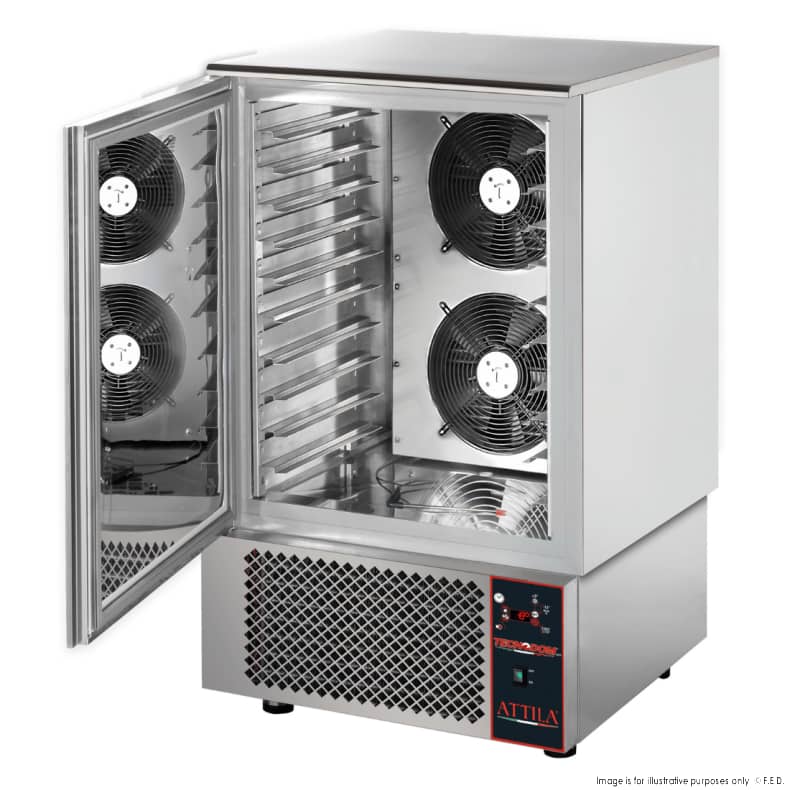

- Tray Capacity: 10×GN 1/1 or 600×400 pans (40mm deep), 70mm spacing

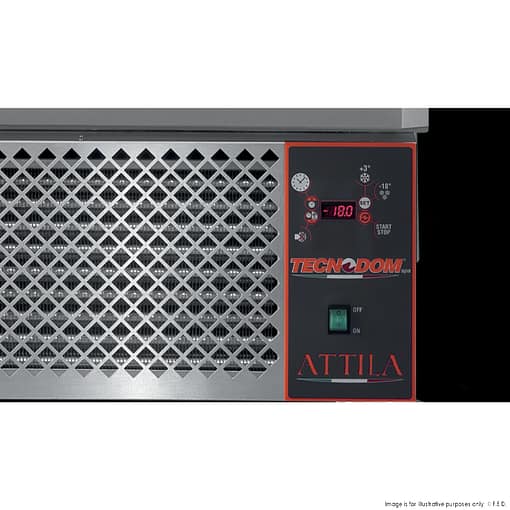

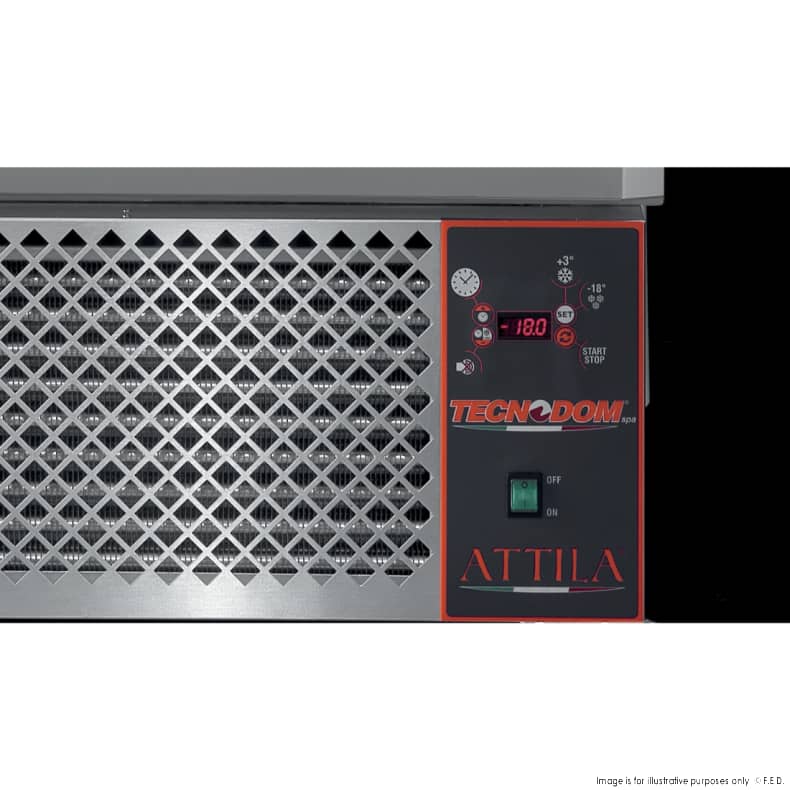

- Digital Control Panel: Includes core and chamber probes with LED temperature readout
- Interior Volume: 190L with rounded corners for easy cleaning
- Construction: Full stainless steel body, galvanized steel external base
- Ventilated Cooling: Built to perform in ambient temps up to 43°C
- Self-Evaporating Drainage and auto defrost for reduced manual maintenance
- Door: Left-hinged, self-closing with magnetic gasket
- Power: 240V / 1490W / 10A plug
- Warranty: 2 years parts and labour
Ideal For
- Commercial Kitchens
- Bakery & Pastry Operations
- Aged Care & Institutional Catering
- Food Service & Hospitality Businesses
Why Choose the Tecnodom DO10?
Built to meet high performance and hygiene standards, the DO10 combines professional-grade chilling and freezing capacity with an energy-efficient 240V design. Ideal for small to mid-size operations, it helps reduce food waste, improve prep time, and maintain HACCP safety compliance—all in a compact, Italian-made unit.
Specifications
- Model: DO10
- Chilling Capacity: 25kg (+70°C to +3°C)
- Freezing Capacity: 25kg (+70°C to -18°C)
- Tray Capacity: 10×GN 1/1 or 600×400 pans (40mm deep)
- Internal Volume: 190L
- Dimensions: 750mm (W) × 740mm (D) × 1260–1290mm (H)
- Internal Dimensions: 610mm (W) × 410mm (D) × 760mm (H)
- Packing Dimensions: 770mm (W) x 780mm (D) x 1390mm (H)
- Net Weight: 150kg
- Power: 240V / 1490W / 10A
- Warranty: 2 years parts and labour
Frequently Asked Questions (FAQ)
How is the Tecnodom DO10 installed?
Install in a ventilated space on a level surface. Plug into a 240V / 10A outlet. Ensure clearance for rear air vents. Professional installation is recommended.
Can this unit fit in tight kitchen spaces?
Yes. With a compact 750mm width and 1290mm height, the DO10 is ideal for under-hood or corner installations, as long as airflow and access are maintained.
What maintenance is required?
Wipe down interior weekly, check the door seal monthly, and clear condenser coils every 4–6 weeks. Annual service by a technician is recommended.
Need help with sizing, ventilation, or HACCP planning? Contact our team or browse our Blast Chiller Range.
