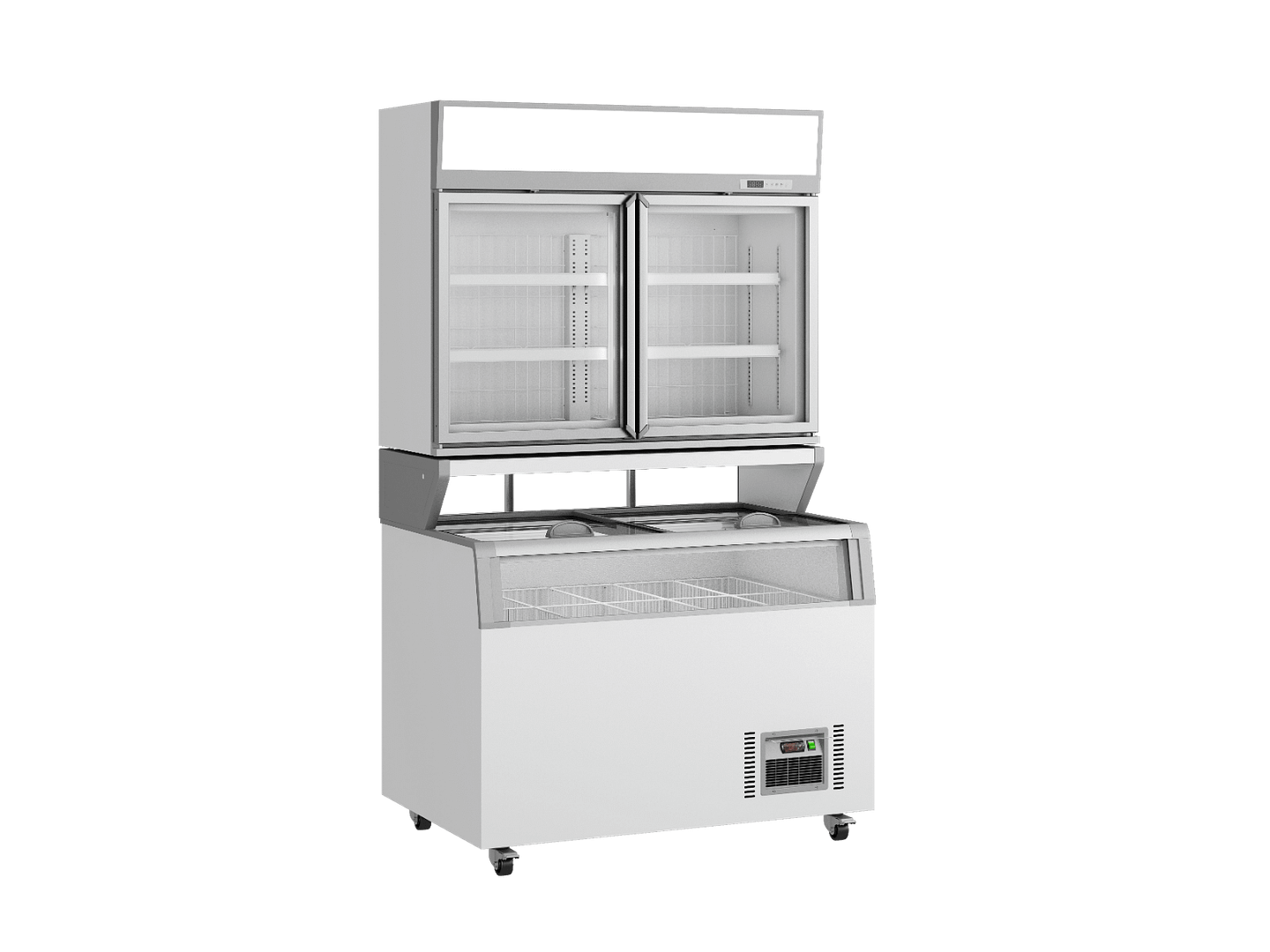

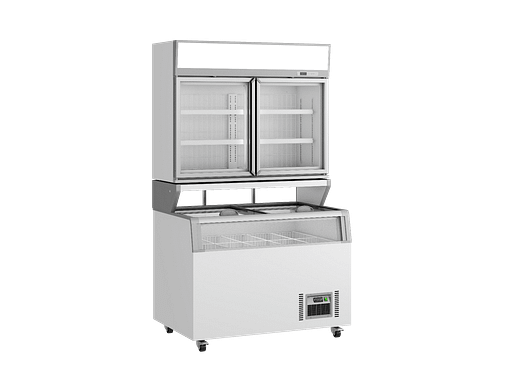

Thermaster ZCD-TD125 Supermarket Combined Freezer – Space-Saving Upright Display

Updated: 22 Sep 2025

At KW Commercial Kitchen, the Thermaster ZCD-TD125 is a modern supermarket combined freezer designed to maximise floor space while showcasing products in an aesthetic LED-lit display. With a 316–470 L capacity, auto-defrost and digital temperature control, it’s perfect for ice cream, frozen goods and high-visibility merchandising.

Built for Australian supermarkets & convenience stores

The ZCD-TD125 combines a top freezer with hinged glass doors and a bottom sliding glass chest, both running on R290 natural refrigerant. Its illuminated canopy allows in-store advertising, while sturdy construction ensures reliable operation in high-traffic retail environments.

Key features & specifications

• Capacity: 316–470 L
• Temperature range: Frozen storage (-18°C to -22°C typical)
• Power/Voltage: Bottom 285 W, 240 V; two 10 A plugs
• Dimensions (W×D×H): 1254 × 850 × 2110 mm
• Net weight: 233 kg
• Construction: Colourbond body; stainless steel inner base; hinged triple-glazed self-closing top doors with heat film; bottom sliding Low-E tempered glass lids with baskets
• Cooling system: Fan-cooled top; static cooling bottom with auto-defrost (optional manual defrost for ice cream)
• Lighting: LED canopy for advertising; internal LED illumination
• Warranty: 2 Years Parts & Labour + 2 Years Parts Only (with registration within 14 days)

Compliance & safety (AU)

• Electrical: RCM compliant.
• Energy: GEMS/MEPS (where applicable).
• Food safety: FSANZ-aligned frozen storage; follow HACCP and council guidelines.

Convenience & usage advice

• Boost sales: Use the illuminated canopy for branding or promotions to attract customer attention.
• Flexible operation: Optional manual defrost model available for ice cream storage.

Ideal applications

• Supermarkets & grocery stores
• Convenience stores & petrol stations
• Specialty food retailers

Frequently Asked Questions

1) How do I clean it daily without harming finishes?

Wipe down doors and panels with a neutral detergent; avoid abrasives; dry glass to prevent streaks.

2) What routine maintenance keeps performance stable?

Weekly gasket checks; monthly condenser clean; defrost as required; inspect LED canopy and fan motors quarterly.

3) What are the power requirements and typical energy use?

Runs on 240 V; bottom compressor 285 W; two 10 A plugs; energy use varies with ambient and load.

4) What about installation and Australian compliance?

RCM certified; provide ventilation and clearance; installation and assembly not covered under warranty.

5) Are spare parts and accessories available?

Baskets, doors, gaskets and controllers are available; provide model and serial when ordering.

Specs source: supplier datasheet for Thermaster ZCD-TD125 combined freezer.
