Thermaster ZCD-TD145 Supermarket Combined Freezer – High-Impact Display & Space-Saving Storage
Updated:
At KW Commercial Kitchen, the Thermaster ZCD-TD145 is engineered to maximise floor space while showcasing frozen goods in a bright, LED-illuminated display. With a 373–575 L capacity, auto-defrost and digital temperature control, it’s the ideal merchandising freezer for supermarkets, convenience stores and specialty retailers.
Built for Australian supermarkets & retail venues

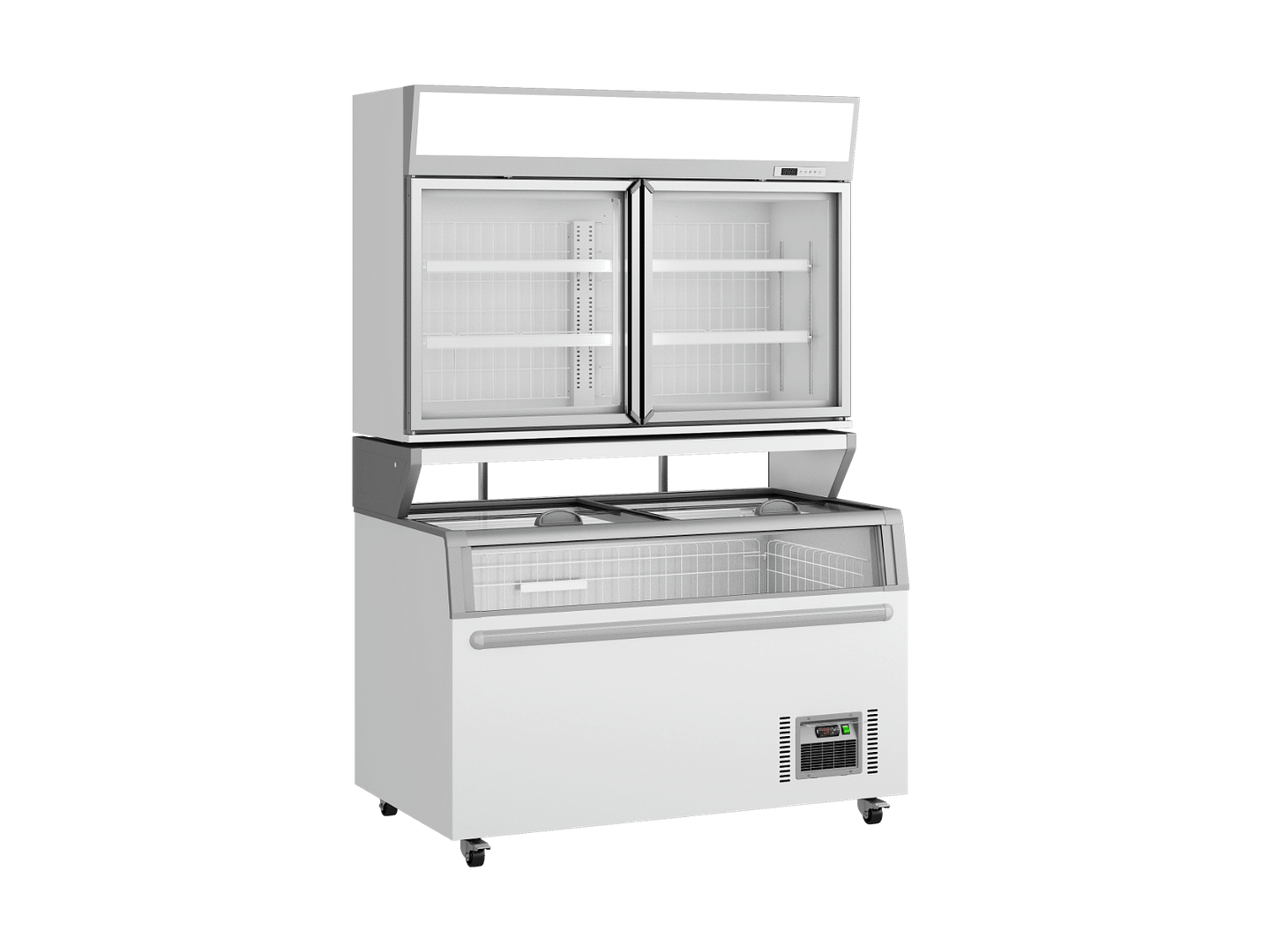

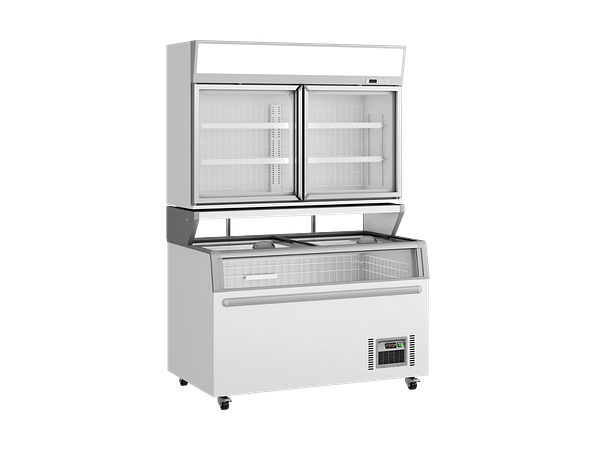

The ZCD-TD145 features a top hinged-glass freezer with triple-glazed self-closing doors and an illuminated advertising canopy, paired with a bottom sliding-glass chest freezer. Powered by eco-friendly R290 refrigerant, it combines fan cooling up top with static cooling below for reliable operation.
Key features & specifications
- Capacity: 373–575 L
- Temperature range: Frozen storage (-18°C to -22°C typical)
- Power/Voltage: Top 650 W, 240 V; two 10 A plugs
- Dimensions (W×D×H): 1454 × 850 × 1080 mm
- Net weight: 243 kg
- Construction: Colourbond body; stainless steel inner base; hinged triple-glazed top doors with heat film; bottom sliding Low-E tempered glass lids with baskets
- Cooling system: Top fan cooling; bottom static cooling with auto-defrost (manual defrost option for ice cream)
- Lighting: LED canopy illumination and internal LED lighting
- Warranty: 2 Years Parts & Labour + 2 Years Parts Only (with registration within 14 days)
Compliance & safety (AU)
- Electrical: RCM compliant.
- Energy: GEMS/MEPS (where applicable).
- Food safety: FSANZ-aligned frozen storage; HACCP-friendly design.
Convenience & usage advice
- Advertising ready: Use the illuminated canopy for branding or promotional graphics.
- Flexible defrost: Optional manual defrost model available for ice cream storage.
Ideal applications
- Supermarkets & grocery retailers
- Convenience stores & petrol stations
- Specialty frozen food shops
Frequently Asked Questions
1) How do I clean it daily without harming finishes?
Wipe doors and panels with neutral detergent and soft cloth; avoid abrasives; dry glass to prevent streaks.
2) What routine maintenance keeps performance stable?
Weekly gasket inspection; monthly condenser cleaning; defrost as required; quarterly check of fans and canopy LEDs.
3) What are the power requirements and typical energy use?
Runs on 240 V; top freezer 650 W; two 10 A plugs; energy depends on load and duty cycle.
4) What about installation and Australian compliance?
RCM certified; provide ventilation and clearance; installation and assembly not covered under warranty.
5) Are spare parts and accessories available?
Yes—baskets, doors, gaskets and controllers are available. Quote model and serial when ordering.
Specs source: supplier datasheet for Thermaster ZCD-TD145 combined freezer.
