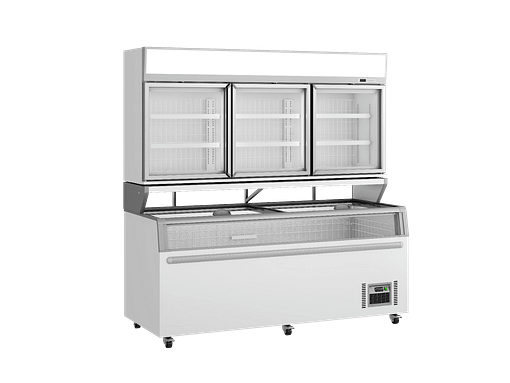

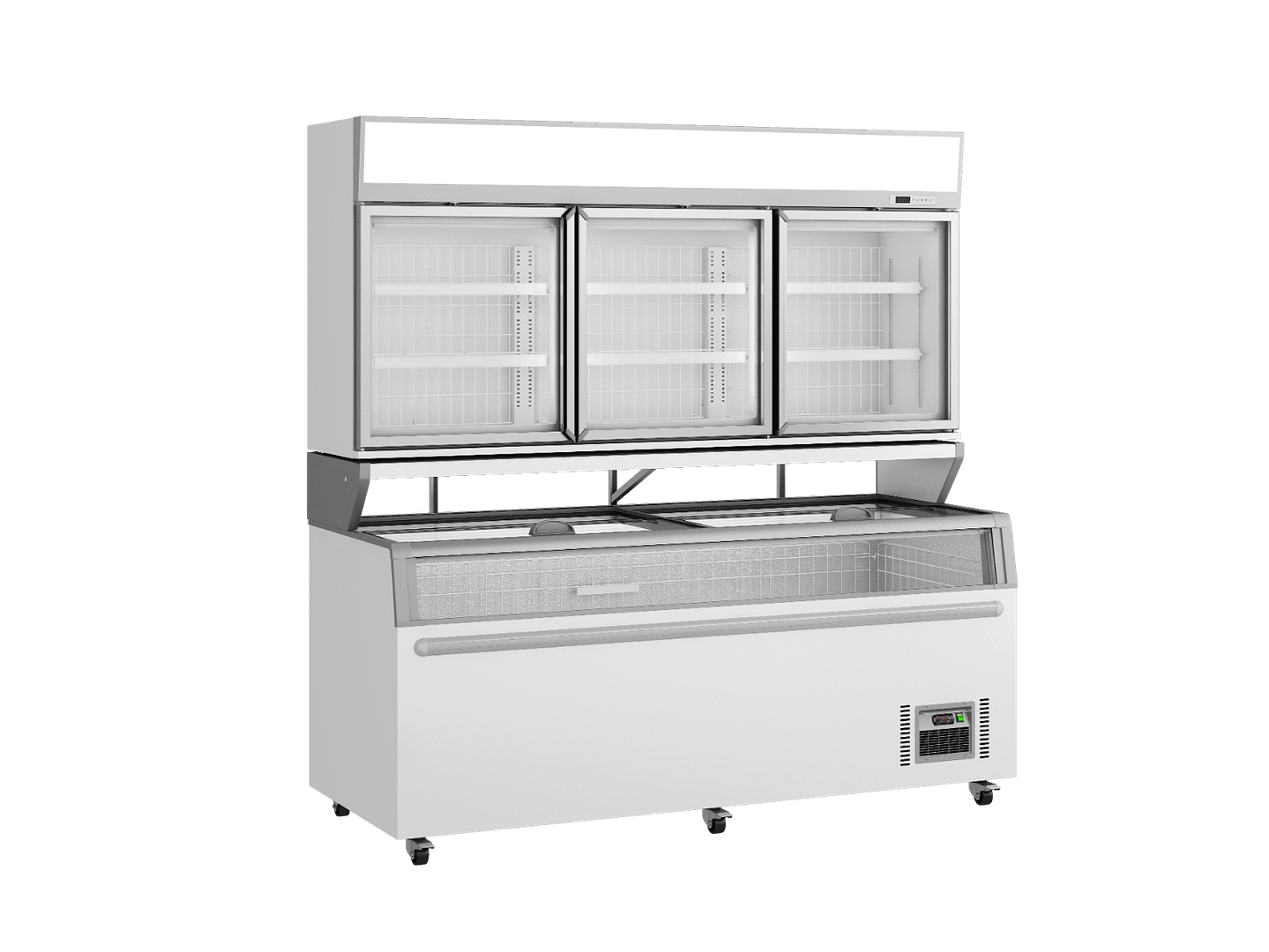

Thermaster ZCD-TD210 Supermarket Combined Freezer – High-Impact LED Display & Large Storage
Updated:
At KW Commercial Kitchen, the Thermaster ZCD-TD210 is a flagship supermarket combined freezer engineered to maximise sales with powerful LED-lit product displays. With a 559–900 L capacity, auto-defrost and dual cooling systems, it’s perfect for ice cream, frozen foods and retail merchandising.
Built for Australian supermarkets & high-traffic stores
The ZCD-TD210 combines a top freezer with hinged triple-glazed self-closing doors and illuminated canopy, with a bottom sliding-glass chest freezer. It uses eco-friendly R290 natural refrigerant, fan cooling on top, and static cooling below for reliable temperature performance.
Key features & specifications
- Capacity: 559–900 L
- Temperature range: Frozen storage (-18°C to -22°C typical)
- Power/Voltage: Top 820 W, Bottom 500 W; one 10 A plug + one 15 A plug
- Dimensions (W×D×H): 2104 × 850 × 1080 mm
- Net weight: 346 kg
- Construction: Colourbond body; stainless steel inner base; hinged triple-glazed glass doors with heat film; bottom Low-E tempered glass sliding lids with baskets
- Cooling system: Top fan cooling; bottom static cooling with auto-defrost (manual defrost option for ice cream storage)
- Lighting: LED canopy illumination and internal LED lighting
- Warranty: 2 Years Parts & Labour + 2 Years Parts Only (with registration within 14 days)
Compliance & safety (AU)
- Electrical: RCM compliant.
- Energy: GEMS/MEPS where applicable.
- Food safety: FSANZ-aligned frozen storage; HACCP-compatible design.
Convenience & usage advice
- Advertising ready: Use the LED canopy to display branding or promotions to increase impulse purchases.
- Flexible cooling: Auto-defrost as standard; optional manual defrost model for ice cream storage.
Ideal applications
- Supermarkets & grocery retailers
- Convenience stores & petrol stations
- Frozen food outlets & specialty shops

Frequently Asked Questions
1) How do I clean it daily without harming finishes?
Clean with neutral detergent and a soft cloth; avoid abrasives; dry the glass doors to maintain clarity.
2) What routine maintenance keeps performance stable?
Weekly door seal checks; monthly condenser cleaning; defrost as required; inspect canopy LEDs and fans quarterly.
3) What are the power requirements and typical energy use?
Operates with one 10 A and one 15 A circuit; combined power top 820 W, bottom 500 W; energy varies by ambient load.
4) What about installation and Australian compliance?
RCM certified; ensure proper ventilation and clearances; installation and assembly are not covered under warranty.
5) Are spare parts and accessories available?
Yes—baskets, doors, gaskets and digital controllers are available. Quote model and serial for ordering.
Specs source: supplier datasheet for Thermaster ZCD-TD210 combined freezer.
