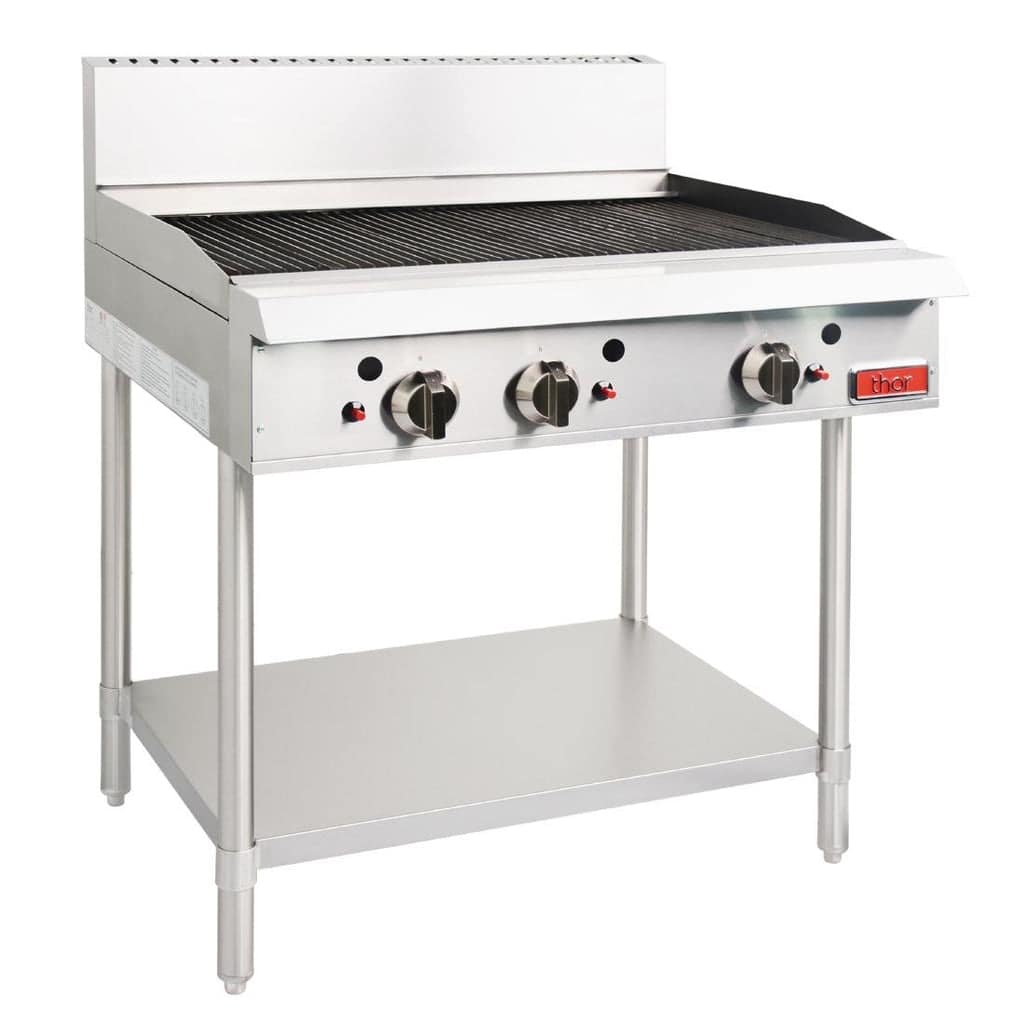

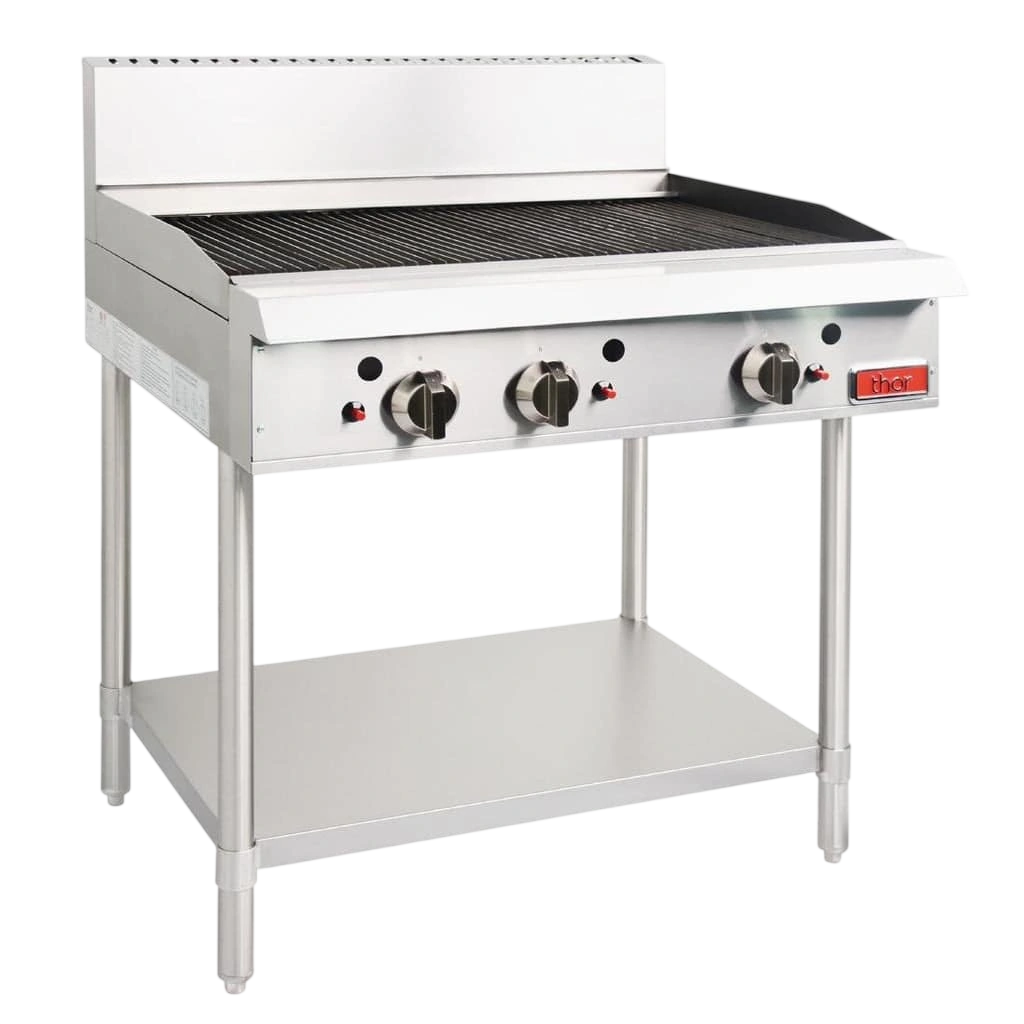

Thor GH104-P Gas Char Broiler 36″ – Radiant Power, Built for Daily Service

Updated: 27 Oct 2025

At KW Commercial Kitchen, we supply the Thor GH104-P 36″ LPG radiant char broiler with heavy cast iron grates, manually controlled independent zones and integrated flame failure safety—supplied on a sturdy stand to save bench space and speed service.

Built for Australian cafés, restaurants & QSRs

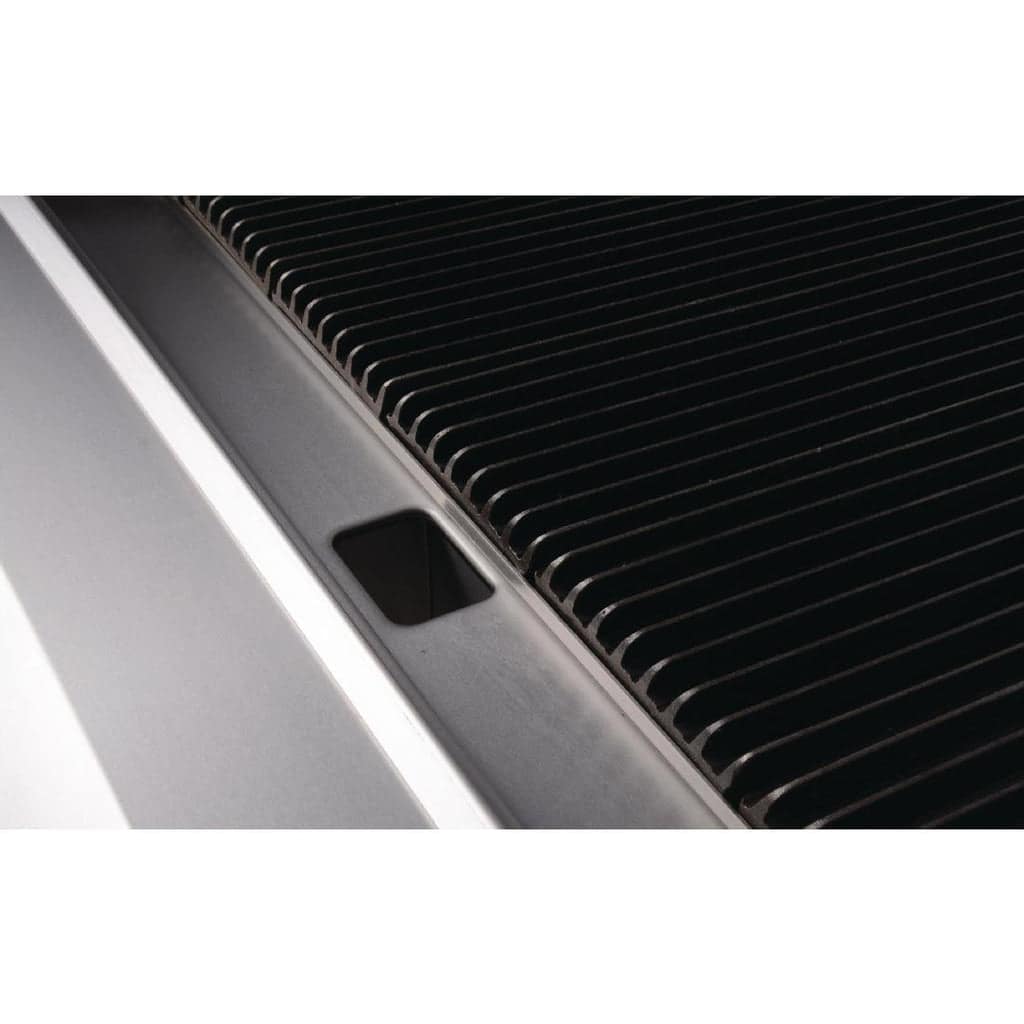

The Thor GH104-P combines radiant heat over stainless burners, cast iron grilling grates and manual dial control per zone for consistent sear marks and dependable output all day.

Key features & specifications

• Cooking area: 915 (W) × 510 (D) mm
• Fuel / Control: LPG, manually controlled independent zones with flame failure
• Gas connection: 3/4″ rear connection
• Dimensions (W×D×H): 915 × 835 × 1175 mm (on stand)
• Weight: 83.5 kg
• Construction: Stainless steel body, heavy duty cast iron grates, removable waste tray, robust dial controls, adjustable heavy feet; supplied with stand
• Certification: AGA approved; SAI Global AS4563-2004
• Warranty: 2 years (manufacturer warranty)

Compliance & safety (AU)

• Gas: Must be installed by a licensed gas fitter per AS/NZS 5601.1.
• Electrical: RCM (if ancillary electrics apply).
• Food safety: Align use with FSANZ guidelines and your local council requirements.

Convenience & usage advice

• Season the grates: Lightly oil and preheat to reduce sticking and improve grill marks.
• Plan for airflow: Keep rear/side clearances for ventilation; place near extraction for safer, cleaner operation.

Ideal applications

• Burgers, steaks and skewers at high turnover
• Char-grilled vegetables and seafood
• Restaurant, café and takeaway grill stations

Frequently Asked Questions

1) How do I clean it daily without harming finishes?

While warm (not hot), brush grates with a grill brush, wipe surfaces with a pH-neutral degreaser and microfibre cloth, avoid abrasives/chlorine, and dry thoroughly.

2) What routine maintenance keeps performance stable?

Empty and clean the waste tray daily; inspect burners and radiation plates weekly; check gas hose/connection and fasteners quarterly.

3) What are the gas requirements and typical energy use?

Connect to a compliant LPG supply via 3/4″ rear connection and a dedicated isolation valve; actual gas use depends on heat setting and duty cycle.

4) What about installation and Australian compliance?

Install by a licensed gas fitter per AS/NZS 5601.1 with adequate clearances and extraction; keep compliance records for council/insurer.

5) Are spare parts and accessories available?

Common items include grates, burner components, valves and knobs. Quote model “GH104-P / TR-CBR36F LPG” and serial for exact parts.

Specs source: supplier literature for Thor GH104-P / TR-CBR36F LPG.
