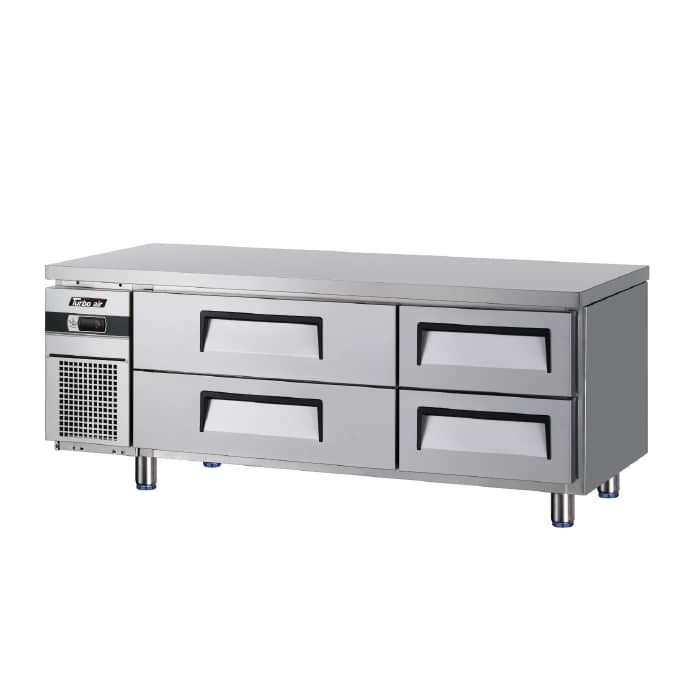

Turbo Air TCB12-4-N Chef Base Fridge – 4 Drawer, 1200mm
Updated:
Built for Australian commercial kitchens
The Turbo Air TCB12-4-N is a durable chef base fridge with 4 heavy-duty drawers capable of holding up to 12 × 1/1 GN pans (150mm deep, not included). With a -1°C to +7°C range, side-mounted compressor, front breathing design, and eco-friendly R290 refrigerant, it’s engineered for high performance and efficiency in compact kitchen layouts
Key features & specifications
- Capacity: 62 GN pans (max depth 140mm)
- Temperature range: -1°C to +7°C
- Ambient rating: 30°C
- Dimensions (W×D×H): 1200 × 700 × 585 mm
- Construction: Stainless steel SUS439 exterior; stainless floor with AL sides & liners
- Drawers: 4, max 12 × GN1/1 pans (150mm deep, not included)
- Compressor: 1/2 HP, side-mounted
- Refrigerant: Hydrocarbon R-290 (eco-friendly)
- Controls: Digital temperature control & monitor
- Cooling: Fan cooling with hot gas condensate system
- Energy consumption: 3.27 kWh/24h
- Power: 240V; 325W; 2.8 Amps; 10A plug
- Weight: 97 kg
- Warranty: 3 years parts & labour
Compliance & safety (AU)
- Electrical: RCM certified, 240V plug-in.
- Food safety: FSANZ aligned for commercial food storage.
- Environment: CFC-free, R290 refrigerant with low GWP.
Convenience & usage advice
- Space saver: Front-breathing side compressor allows installation in tight spaces.
- Heavy-duty drawers: Hold up to 50kg each, perfect for busy kitchens.
Ideal applications
- Restaurants & cafés
- Catering kitchens
- Hotels & cafeterias

Frequently Asked Questions
1) How do I clean it daily without harming finishes?
Clean stainless steel with warm soapy water and a soft cloth; avoid abrasives and harsh chemicals; dry after cleaning.
2) What routine maintenance keeps performance stable?
Clean condenser coils every 3 months; check drawer gaskets monthly; keep vents clear for airflow.
3) What are the power requirements and typical energy use?
240V / 325W / 10A plug; approx. 3.27 kWh/24h
4) What about installation and Australian compliance?
RCM compliant; allow ventilation space; FSANZ food safety aligned.
5) Are spare parts and accessories available?
Yes – drawers, gaskets, and controllers are stocked. Quote model and serial number for accuracy.
Specs source: Turbo Air TCB12-4-N datasheet
