Turbofan EC40M10 – 10 Tray Manual Electric Combi Oven
Updated:
Full-size combi performance with simple manual control

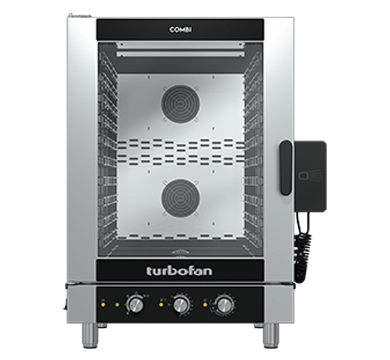

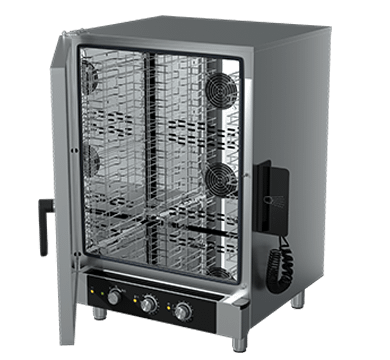

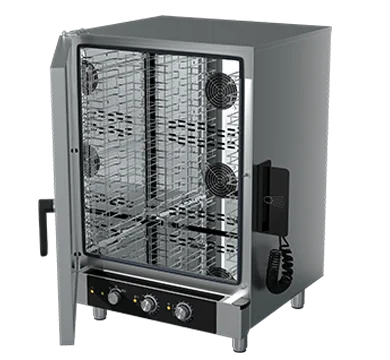

The Turbofan EC40M10 is a robust 10 × 1/1 GN tray electric combi oven with direct steam injection, delivering versatile performance in a compact 777 mm wide footprint. Featuring electro-mechanical controls for intuitive operation and three manual cooking modes, it’s ideal for kitchens seeking reliable, straightforward combi-steaming.
Key features & specifications
- Capacity: 10 × 1/1 GN trays or 10 × 600 × 400 mm trays, 70 mm spacing
- Cooking modes: Convection (50–260°C), Steam (50–130°C), Combi (50–260°C)
- Heating power: 14 kW with auto-reverse fan for even cooking

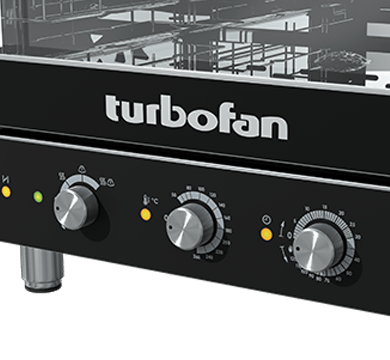

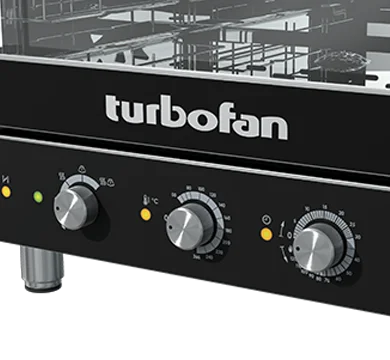

- Controls: Electro-mechanical dials for time, temperature, and mode selection; 120 min manual timer
- Door: Double-glazed thermo-reflective tempered glass, adjustable hinges, door-open rapid cool down
- Cleaning: Manual system with included hand shower and triple action water filter cartridge
- Construction: Stainless steel chamber with smooth rounded edges; LED chamber lighting
- Dimensions (W×D×H): 777 × 835 × 1152 mm
- Electrical: 400–415V, 50Hz, 3P+N+E, 14.5 kW, 22 A/ph
- Water: R3/4” connection; 200–500 kPa cold water
- Warranty: 24 months parts & labour
Compliance & safety (AU)
- Electrical: RCM compliant; installation by a licensed electrician required.
- Water quality: Meets FSANZ standards; hardness 60–90 ppm, pH > 7.5, chloride < 30 ppm.
Convenience & usage advice
- Reliable performance: Ideal for busy commercial kitchens with simple, robust controls
- Uniform results: Auto-reversing fan ensures even heat distribution
Ideal applications
- Restaurants and cafés
- School and hospital kitchens
- Catering facilities
Frequently Asked Questions
1) How do I install the EC40M10?
Install on a level surface with 50 mm clearance at rear and sides (500 mm on one side for recessed installation). Connect to water and power as per the manual.
2) Can I cook and steam at the same time?
Yes, the Combi mode allows simultaneous cooking and steaming for precise results.
3) What cleaning is required?
Manual cleaning using the included hand shower; wipe chamber walls after use and clean filters regularly.
4) What water quality is recommended?
Total hardness 60–90 ppm, pH above 7.5, chloride below 30 ppm, water temperature under 50°C.
5) Are stands available?
Yes, compatible with Turbofan SK40-10A stainless steel stand with 6 tray runners.
Specs source: official datasheet for Turbofan EC40M10:contentReference[oaicite:0]{index=0}.
