Turbofan EC40T10 – Full Size 10 Tray Touch Electric Combi Oven
Updated:

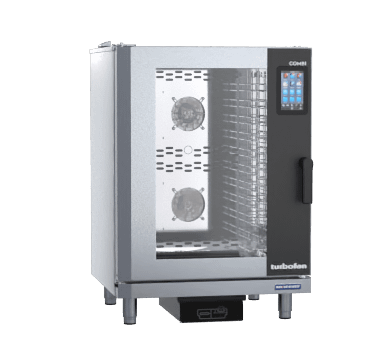

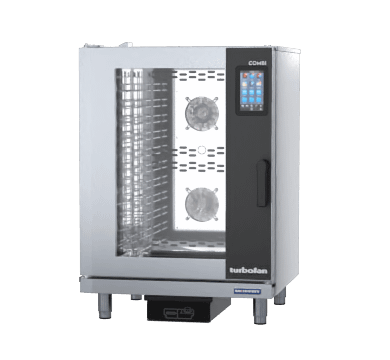

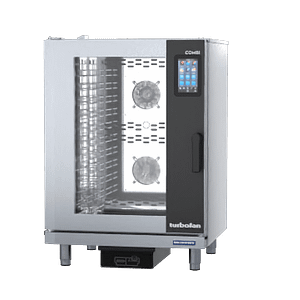

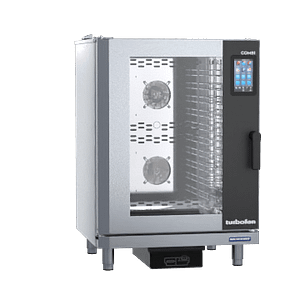

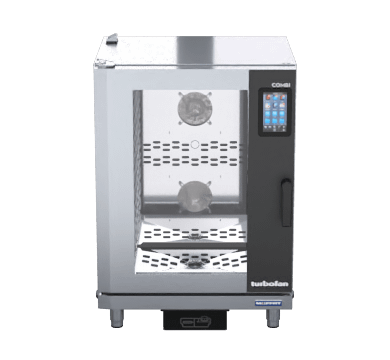

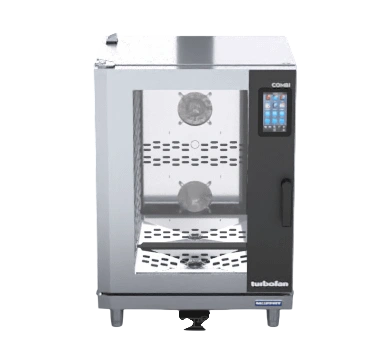

The Turbofan EC40T10 is a powerful 10-tray electric combi oven engineered
for high-output professional kitchens. Featuring a 7-inch capacitive touch screen,
direct steam injection, Autoclima climate control, MULTILEVEL PLUS loading
intelligence and ICS automatic cooking, it delivers speed, consistency and precision
for any commercial operation.
Why Turbofan?
Designed by the Moffat Group, the EC40T10 offers premium combi cooking with
ISO9001-certified manufacturing, ensuring consistency, safety and durability.
According to the official technical sheet, this model includes advanced energy and
steam-control technology that significantly improves cooking uniformity and efficiency.
- High-speed, auto-reversing fan for even airflow
- Advanced climate management with Autoclima®
- Energy optimization via ECOSPEED and ECOVAPOR
- Automatic cleaning with built-in LCS liquid clean system
- Wi-Fi + USB for HACCP, updates & recipe management
10-Tray High-Output Electric Combi Oven
With capacity for 10 × GN 1/1 trays or 10 × 600 × 400 bakery trays on
70mm spacing, the EC40T10 boosts production while maintaining precise results for
roasting, steaming, baking, combi cooking, proofing and regeneration.
Key Features & Specifications
- Tray Capacity: 10 × GN 1/1 or 10 × 600 × 400 mm
- Tray Spacing: 70mm
- Heating Power: 14.5kW electric
- Fan: 2-speed fan with auto reverse for uniform cooking

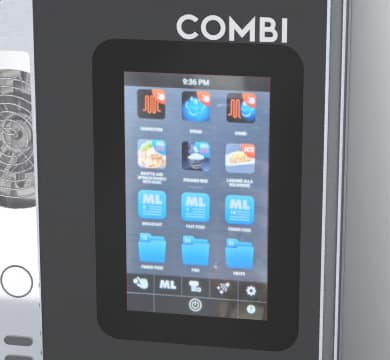

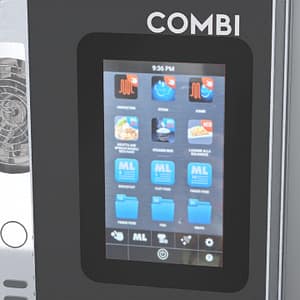

- Touch Screen: 7-inch HD capacitive display, fully configurable
- Cooking Modes:
Convection 30–260°C
Steam 30–130°C
Combi 30–260°C - Automatic Features:
ICS Automatic Cooking (intelligent presets)
MULTILEVEL PLUS (cook different recipes on each shelf)
Autoclima® humidity management
ECOVAPOR steam modulation
ECOSPEED energy optimisation - Manual Modes: Convection, Steam, Combi
- Core Probe: Included
- Cleaning System: LCS Liquid Clean System with auto dosing
- Connectivity: Wi-Fi + USB (HACCP download, updates, recipe sync)
- Door: Double-tempered glass with air chamber + heat-reflective inner glass
- Lighting: Low-consumption LED chamber lighting
- Chamber Material: AISI 304 stainless steel, 1mm, fully rounded corners
- Water Filter: Triple-action cartridge + filter head included
- Dimensions (W×D×H): 777 × 744 × 1097mm
- Nett Weight: 104kg
- Packed Weight: 117kg
- Packed Volume: 0.63m³
- Electrical Requirements:
400–415V • 50Hz • 3P+N+E • 14.5kW • 22A - Water Requirements:
2 × R3/4 inlets
200–500kPa pressure
Cold water max 30°C
Hardness 60–90ppm
Chloride ≤ 30mg/L
Free chlorine ≤ 0.1mg/L - Drain: 40mm outlet, funnel trap/turndish required
- Installation Clearances:
50mm rear / 50mm left / 50mm right (one side must have 500mm for service) - Warranty: 1 year parts & labour
Compliance & Safety (AU)
- RCM electrical compliance
- Install with multi-pole circuit breaker + isolator
- Meets commercial kitchen hygiene & airflow standards
Convenience & Usage Benefits
- High-volume output with fully even cooking
- Automatic humidity control for precise results
- Energy saving via intelligent ECOSPEED system
- LCS cleaning system simplifies end-of-day shutdown
- Wi-Fi and USB streamline recipe management & HACCP compliance
Ideal Applications
- Restaurants & hotels
- Cafés & bakeries
- Catering & banqueting kitchens
- Hospitals, schools and large institutions
- High-output production kitchens
Smart Energy & Sustainability (Electric)
Daily Energy Use (Estimated)
Typical 3–5 hour daily operation at duty cycle: 20–35 kWh/day.
Running Cost Estimate
At $0.30/kWh → approx. $6–$10.50 per day.
CO₂ Output (AU Grid)
20–35 kWh × 0.79kg = 15.8–27.7 kg CO₂/day.
Sustainability Highlights
- ECOSPEED reduces peak energy draw
- ECOVAPOR prevents wasteful over-steaming
- Optimised airflow increases thermal efficiency
- Triple-action water filtration prolongs boiler life
Eco Badges: ⚡ Smart Energy | 💧 Eco Steam | 🔧 Long-Life Stainless Interior
At a glance
- 10 × GN 1/1 capacity
- 14.5kW heating power
- Three cooking modes + ICS auto cooking
- Autoclima® humidity control
Need expert help with sizing or accessories?
Call 1300 001 366 or
Contact our team.
Explore more
Combi Ovens
.
Data sourced from the official Turbofan EC40T10 technical sheet
