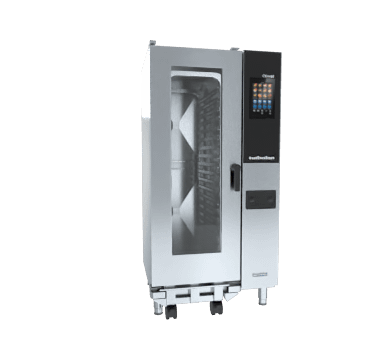

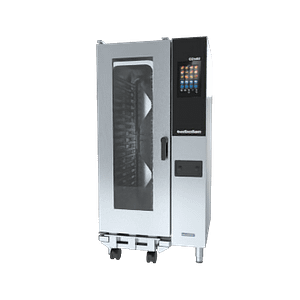

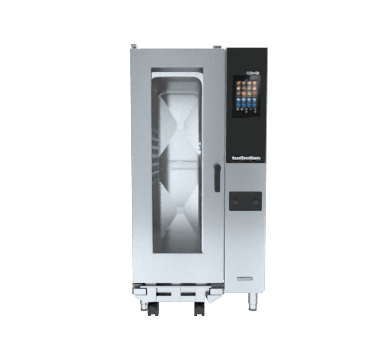

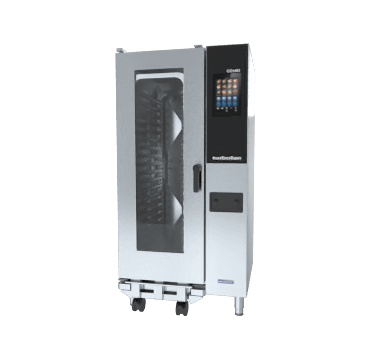

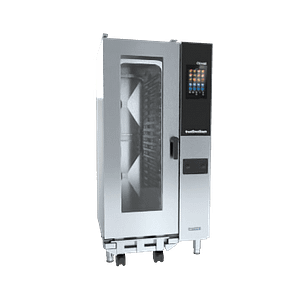

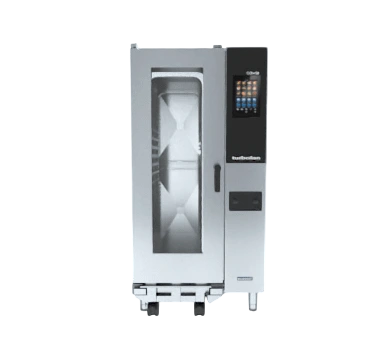

Turbofan EC40T20 – Full Size 20 Tray Touch Electric Combi Oven
Updated:
The Turbofan EC40T20 is a high-capacity 20-tray electric combi oven designed for
large commercial kitchens and institutional food production. Featuring a
10-inch HD capacitive touch screen, direct steam injection,
6-speed auto-reversing fan, advanced climate automation and intelligent cooking
systems, it provides exceptional productivity, consistency and energy efficiency.
Why Turbofan?
Designed by the Moffat Group under an ISO9001-certified production system,
the EC40T20 delivers top-tier reliability, precise humidity management and
advanced cooking automation. The technical sheet highlights Autoclima®, Fast-Dry
Boosted®, MULTILEVEL PLUS and ICS — combining to ensure uniform, repeatable and
efficient cooking at scale.
- High-volume throughput in a compact footprint
- 10-inch touch screen with deep configurability
- Advanced steam & climate control for perfect cooking conditions
- Energy-saving algorithms via ECOSPEED & ECOVAPOR
- Automatic washing through VCS + WMS scheduling
20-Tray Combi Oven for Serious Commercial Production
With 20 × GN1/1 tray capacity on 63mm spacing, the EC40T20 is ideal for
banqueting, corporate catering, hotels, hospitals, aged care and central kitchens
requiring large batch consistency and automation.
Key Features & Specifications
- Capacity: 20 × GN1/1 trays (63mm spacing)
- Heating Power: 37.2kW
- Fan: Up to 6-speed auto-reversing fan

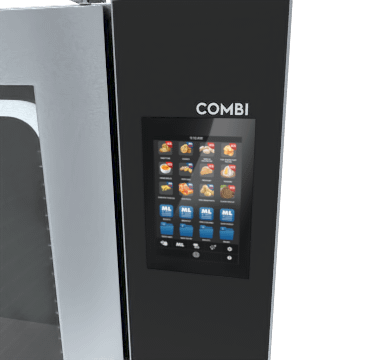

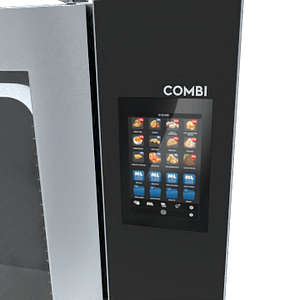

- Touch Screen: 10-inch high-definition capacitive LCD
- Cooking Modes:
Convection 30–300°C
Steam 30–130°C
Combi 30–300°C
Boosted preheat 320°C - Automatic Cooking Systems:
ICS Interactive Cooking System
MULTILEVEL PLUS intelligent shelf grouping
Autoclima® humidity control
Fast-Dry Boosted® dehumidification
Night Cooking (low-temp + hold)
JIT synchronous finish mode
ECOVAPOR steam optimisation
ECOSPEED adaptive energy control - Probe: Core temperature probe included
- Cleaning:
VCS Vapour Cleaning System
7 automatic wash cycles (manual, rinse, fast, soft, medium eco, hard eco, grill)
WMS Wash Management System for scheduled washing - Connectivity: Wi-Fi + USB for HACCP, recipes & updates
- Door: Vented rear, double tempered glass with air chamber & reflective glass
Inner glass folds open for cleaning - Lighting: Low-consumption LED cooking chamber lights
- Chamber: 1mm AISI 304 stainless steel, rounded edges
- Hand Shower: External spray hose included
- Dimensions (W×D×H): 892 × 862 × 1812mm
- Nett Weight: 273kg
- Packed Weight: 316kg
- Packed Volume: 2.49m³
- Electrical Requirements:
400–415V • 50Hz • 3P+N+E • 37.2kW • 58A - Water Requirements:
2 × R3/4 inlets
200–500kPa
Water ≤ 30°C
Hardness 60–90ppm
Chloride ≤ 30mg/L
Free chlorine ≤ 0.1mg/L
Iron ≤ 0.1mg/L
Monochloramine ≤ 0.2mg/L
Conductivity 50–200µS - Drain: 50mm outlet, min 4° fall, must be outside oven perimeter
- Installation Clearances:
50mm rear
50mm left
500mm right (service side)
Not for recessed installation
Keep ≥ 400mm from nearby heat sources - Warranty: 1 year parts & labour
Compliance & Safety (AU)
- RCM electrical compliance
- Requires multi-pole isolator & circuit breaker
- Food-safe stainless-steel interior
Convenience & Usage Benefits
- Large batch capacity for professional catering
- Uniform cooking across 20 shelves with auto-reverse airflow
- Reduced energy consumption through ECOSPEED algorithms
- Night cooking lowers daytime workload & operating cost
- Automatic washing saves labour and chemical use
Ideal Applications
- Hotels & banqueting kitchens
- Hospitals & aged care
- Production kitchens
- Large restaurants and catering operations
- Institutional foodservice

Smart Energy & Sustainability (Electric)
Estimated Energy Use
Typical large-scale daily operation: 25–40 kWh/day.
Operating Cost Estimate
25–40 kWh × $0.30 ≈ $7.50–$12/day.
CO₂ Emissions (AU Grid)
25–40 kWh × 0.79kg = 19.7–31.6 kg CO₂/day.
Sustainability Highlights
- ECOSPEED adaptive power control
- ECOVAPOR limits excess steam output
- Fast-Dry Boosted® improves crisping with minimal energy
- VCS + WMS optimise cleaning water & detergent use
Eco Badges: ⚡ Energy Smart | 💧 Eco Steam | 🔧 Long-Life Chamber
At a glance
- 20 × GN1/1 capacity
- 37.2kW heating
- 10-inch touchscreen
- Autoclima® + MULTILEVEL PLUS + ICS
