Turbofan EC40T40 – Full Size 40 Tray Touch Electric Combi Oven
Updated:
The Turbofan EC40T40 is a heavy-duty 40-tray electric combi oven engineered for
large-scale commercial and institutional kitchens. With 73.2kW of heating power,
a 10-inch capacitive touch display, 6-speed auto-reversing fan and advanced
humidity and climate control systems, it delivers exceptional capacity, precision
and efficiency for high-volume food production.
Why Turbofan?
Built by the Moffat Group under an ISO9001-certified manufacturing system,
the Turbofan EC40T40 provides elite combi performance with robust components,
smart automation and world-leading cooking uniformity.
The official technical sheet highlights premium features such as Fast-Dry Boosted®,
Night Cooking, MULTILEVEL PLUS, ICS auto-cooking and ECOVAPOR steam intelligence.
- 40 × GN1/1 capacity for maximum output
- 6-speed fan with auto-reversing airflow
- Full climate automation via Autoclima®
- Energy-optimised cooking with ECOSPEED & ECOVAPOR
- Automatic chemical-saving cleaning with VCS + WMS
High-Volume Electric Combi Oven for Production Kitchens
The EC40T40 supports 40 × GN1/1 trays or 20 × GN2/1 trays with
63mm spacing, ideal for banqueting, hotels, hospitals, aged care, central kitchens
and large-scale catering.
Key Features & Specifications
- Capacity: 40 × GN1/1 or 20 × GN2/1 trays
- Tray Spacing: 63mm
- Heating Power: 73.2kW
- Fan: Up to 6 speeds, automatic reverse rotation

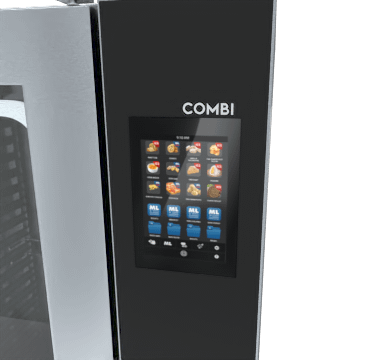

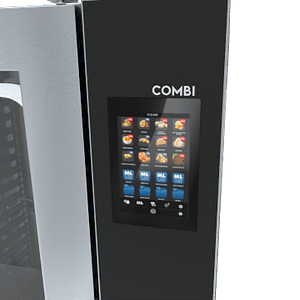

- Touch Screen: 10-inch capacitive colour LCD
- Cooking Modes:
Convection 30–300°C
Steam 30–130°C
Combi 30–300°C
Boosted preheat at 320°C - Automatic Cooking Systems:
ICS Interactive Cooking System
MULTILEVEL PLUS (patented)
Autoclima® humidity optimisation
Fast-Dry Boosted® dehumidification
Night Cooking (low temp + hold)
JIT (Just-In-Time) synchronous finish mode
ECOVAPOR & ECOSPEED smart energy control - Cleaning Systems:
VCS Vapour Cleaning System
7 auto wash programs (manual, rinse, fast, soft, medium eco, hard eco, grill)
WMS (Wash Management System) pre-scheduled washing - Probe: Core temperature probe included
- Connectivity: Wi-Fi + USB (HACCP, software updates, recipes)
- Door: Double tempered glass + air chamber + reflective inner glass
Internal glass folds open for cleaning - Interior: AISI 304 stainless chamber, rounded edges
- Lighting: Low-consumption LED lights
- Dimensions (W×D×H): 1102 × 932 × 1812mm
- Nett Weight: 315kg
- Packed Weight: 364.2kg
- Packed Volume: 3.11m³
- Electrical Requirements:
400–415V • 50Hz • 3P+N+E • 73.2kW • 110A - Water Requirements:
2 × R3/4 inlets
200–500 kPa
Cold/softened water max 30°C
Hardness 60–90 ppm
Chloride max 30 mg/L
Free chlorine max 0.1 mg/L
Iron ≤ 0.1 mg/L
Monochloramine ≤ 0.2 mg/L
Conductivity 50–200 µS - Drain: 50mm outlet, 4° minimum fall, drain outside oven perimeter
- Installation Clearances:
50mm rear • 50mm left • 500mm right (service side)
Keep ≥ 400mm from nearby heat sources
Not suitable for recessed installation - Warranty: 1 year parts & labour
Compliance & Safety (AU)
- RCM electrical compliance
- Requires multi-pole isolator & circuit protection
- Meets commercial hygiene & airflow standards
Convenience & Usage Benefits
- Maximum capacity for large-scale meal production
- Perfect cooking uniformity with auto-reversing airflow
- Night cooking reduces daytime workload & power draw
- Multilevel cooking separates recipes with different timing
- VCS + WMS automate cleaning & maintenance scheduling
Ideal Applications
- Hotels, banqueting halls, convention centres
- Hospitals, aged care & institutional kitchens
- Central production kitchens & catering operations
- Large restaurants and food manufacturing lines
Smart Energy & Sustainability (Electric)
Estimated Energy Use
Typical large-scale production: 40–60 kWh/day.
Operating Cost Estimate
40–60 kWh × $0.30 = $12–$18/day.
CO₂ Emissions (AU Grid)
40–60 kWh × 0.79 kg = 31.6–47.4 kg CO₂/day.
Sustainability Highlights
- ECOSPEED adjusts power for stable chamber temperature
- ECOVAPOR limits over-steaming waste
- Fast-Dry Boosted® reduces humidity quickly for crisp finishing
- VCS + WMS limit detergent usage and water waste
Eco Badges: ⚡ Smart Energy | 💧 Intelligent Steam | 🔧 Long-Life Stainless Chamber
At a glance
- 40 × GN1/1 / 20 × GN2/1 capacity
- 73.2kW power
- 10-inch touchscreen
- Fast-Dry, Autoclima®, MULTILEVEL PLUS, ICS
Need help selecting the right high-capacity combi oven?
Call 1300 001 366 or
Contact our team.
Browse
Combi Ovens
.
Technical data sourced from the official Turbofan EC40T40 datasheet.:contentReference[oaicite:1]{index=1}
