Turbofan EC40T7 – Full Size 7 Tray Touch Electric Combi Oven
Updated:

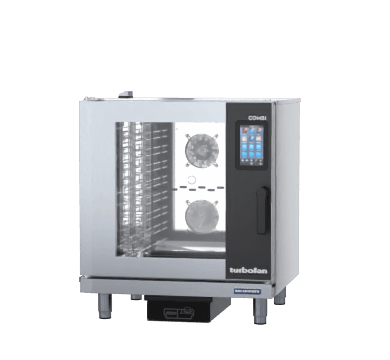

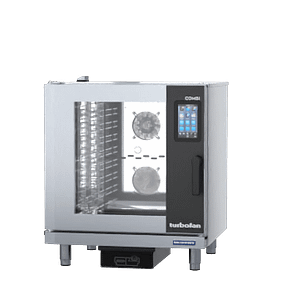

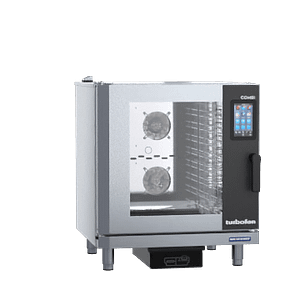

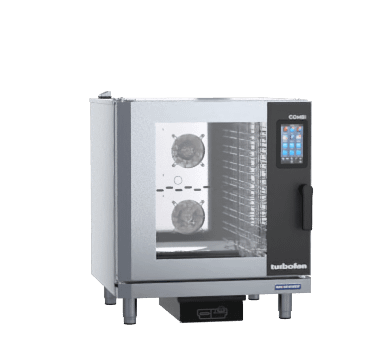

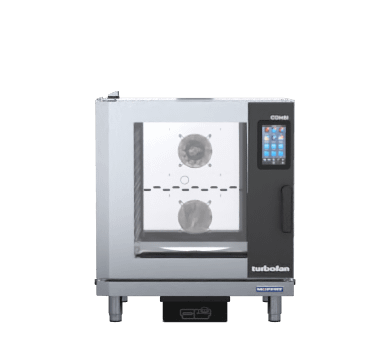

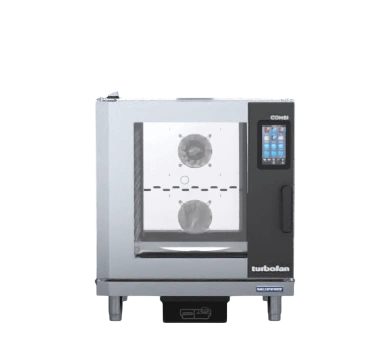

The Turbofan EC40T7 is a compact 7-tray electric combi oven delivering powerful
steam, convection and combi cooking within just 777mm of width. Featuring a

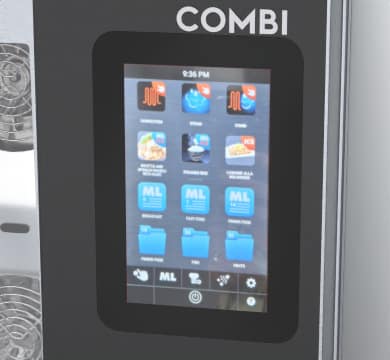

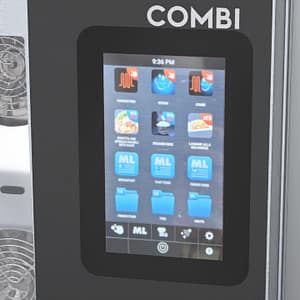

7-inch high-definition capacitive touch screen, multi-speed auto-reversing fan,
direct steam injection and advanced Autoclima® climate management, it is built
for professional kitchens requiring flexibility, speed and exceptional control.
Why Turbofan?
Engineered by the Moffat Group under an ISO9001-certified manufacturing system,
the EC40T7 delivers premium performance with energy efficiency and reliability.
The technical sheet highlights key advantages including Autoclima® dynamic humidity
management, MULTILEVEL PLUS shelf intelligence and ICS automatic cooking.
- Direct-steam combi with intelligent climate control
- Compact footprint — only 777mm wide
- Energy-optimised heating via ECOSPEED & ECOVAPOR
- LCS automatic cleaning with built-in chemical tank
- Wi-Fi + USB for HACCP, updates and recipe distribution
High-Performance 7-Tray Combi Oven
The oven holds 7 × GN1/1 trays or 7 × 600×400mm bakery trays on
70mm spacing—ideal for restaurants, bakeries, cafés and catering operations
requiring compact but high-output equipment.
Key Features & Specifications
- Tray Capacity: 7 × GN 1/1 or 7 × 600×400mm
- Tray Spacing: 70mm
- Heating Power: 12.5kW
- Fan: 2-speed auto-reversing fan for even airflow

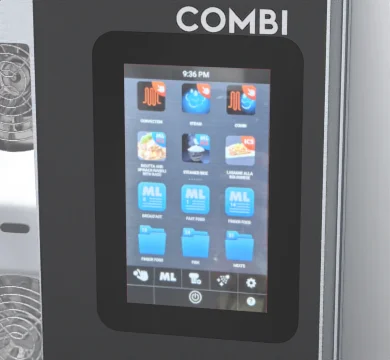

- Touch Screen: 7-inch capacitive LCD, fully configurable
- Manual Cooking:
Convection 30–260°C
Steam 30–130°C
Combi 30–260°C - Automatic Cooking Systems:
ICS Interactive Cooking System
MULTILEVEL PLUS intelligent shelf management
Autoclima® humidity control
ECOVAPOR steam optimisation
ECOSPEED energy optimisation - Probe: Core temperature probe included
- Cleaning: LCS Liquid Clean System with automatic dispensing
- Door: Double tempered glass with air chamber + heat-reflective inner glass
- Lighting: Low-consumption LED lighting
- Chamber: 1mm AISI 304 stainless steel with fully rounded edges
- Frame: Suitable for bench mount or SK40A stainless stand
- Dimensions (W×D×H): 777 × 744 × 887mm
- Nett Weight: 90kg
- Packed Weight: 102kg
- Packed Volume: 0.51m³
- Electrical Requirements:
400–415V • 50Hz • 3P+N+E • 12.5kW • 18A - Water Supply:
2 × R3/4 inlets
200–500kPa
Max 30°C water
Hardness 60–90ppm
Chloride ≤ 30mg/L
Free chlorine ≤ 0.1mg/L
Iron ≤ 0.1mg/L - Drain:
40mm outlet
funnel trap/turndish outside oven perimeter
Minimum fall 4° - Installation Clearances:
50mm rear / 50mm left / 50mm right
One side must maintain 500mm for service access
Avoid recess installation
Keep ≥ 400mm from external heat sources - Warranty: 1 year parts & labour
Compliance & Safety (AU)
- RCM electrical compliance
- Requires multi-pole circuit breaker + isolator
- Food-safe AISI 304 stainless steel interior
Convenience & Usage Benefits
- Small footprint with powerful full-size combi performance
- Fast, precise climate-controlled cooking
- Easy daily cleaning via fully automated LCS system
- Touch-screen operation reduces training time
- Multilevel cooking boosts productivity in compact kitchens
Ideal Applications
- Restaurants & cafés
- Bakeries & pastry kitchens
- Catering & banquet operations
- Hotels, hospitals, schools
- Production and ghost kitchens
Smart Energy & Sustainability (Electric)
Estimated Energy Use
Typical 3–5 hour daily use: 15–28 kWh/day.
Operating Cost Estimate
15–28 kWh × $0.30 ≈ $4.50–$8.40/day.
CO₂ Emissions (AU Grid)
15–28 kWh × 0.79kg = 11.8–22.1 kg CO₂/day.
Efficiency Highlights
- ECOSPEED reduces peak energy load
- ECOVAPOR limits unnecessary steam saturation
- Auto-reversing fan improves heat uniformity & reduces run time
Eco Badges: ⚡ Energy Optimised | 💧 Eco Steam | 🔧 Long-Life Stainless Chamber
At a glance
- 7 × GN1/1 / 7 × 600×400 trays
- 12.5kW electric heating
- Seven-inch touch screen with ICS & multilevel cooking
- Autoclima® steam/humidity control
Need choosing between EC40T7 and EC40T10?
Call 1300 001 366 or
Contact our team.
Browse
Combi Ovens
.
Technical specifications sourced from the official Turbofan EC40T7 datasheet.:contentReference[oaicite:1]{index=1}
