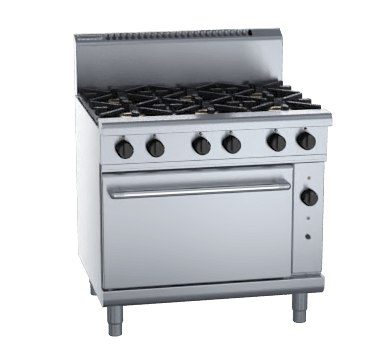

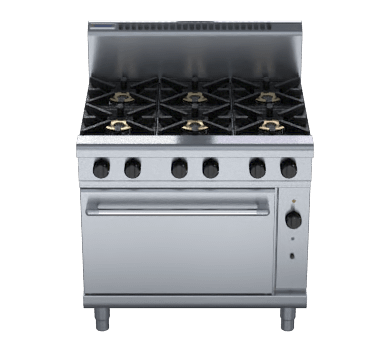

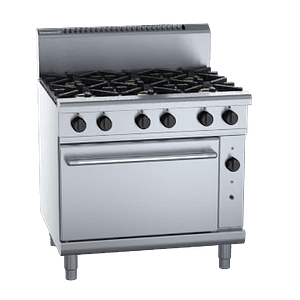

Waldorf RN8610GC Gas Range – 900 mm, 6 Burners with GN2/1 Convection Oven
Updated:
At KW Commercial Kitchen, we supply the Waldorf RN8610GC,
a professional-grade 900 mm gas range featuring six 28 MJ/hr open burners and an integrated
GN2/1 convection oven. Designed for performance and reliability, it’s the preferred solution for
restaurants, hotels, caterers and institutional kitchens seeking robust, high-output cooking capability.
Built for Australian heavy-duty kitchens
The RN8610GC delivers precision heat control, a durable 304 stainless-steel body and
a powerful 30 MJ oven burner with fan-assisted convection for even heat circulation.
Every component is engineered for continuous commercial use and simple daily cleaning.
Key features & specifications
- Burners: 6 × 28 MJ/hr open burners with dual-flame ring and simmer control
- Oven: GN2/1 convection oven, 30 MJ/h burner, 4-position racking, 100 W fan motor
- Total power: 198 MJ/h gas | 0.13 kW electric (230–240 V, 0.6 A)
- Temperature range: Up to 320 °C
- Dimensions (W×D×H): 900 × 805 × 1130 mm (incl. splashback)
- Oven cavity size: 665 × 590 × 385 mm (fits GN2/1 trays)
- Construction: 304 stainless steel with vitreous-enamelled oven linings
- Controls: Piezo ignition, heat-resistant reinforced knobs, flame-failure protection
- Gas connection: ¾″ BSP male | NG or LPG (conversion kit supplied)
- Warranty: 12-month parts & labour (AU)
Compliance & safety (AU)
- Gas: AS/NZS 5601.1 compliant – must be installed by a licensed gas fitter.
- Electrical: RCM certified 230–240 V connection for convection fan.
- Construction: Meets Australian standards for commercial kitchen safety and hygiene.
Convenience & usage advice
- Easy cleaning: Removable burners, spill trays and oven racks for fast wash-down.
- Flexible gas setup: Supplied with NG/LP regulator and conversion kit.
- Efficient service: Fan-assisted oven provides rapid recovery for batch cooking.
Ideal applications
- Restaurants & bistros
- Hotel & resort kitchens
- Institutional & aged-care facilities
- Commercial catering operations
At a glance
- 900 mm width | 198 MJ/h total input
- 6 × 28 MJ burners | GN2/1 convection oven
- NG / LPG kit included | 304 stainless steel
- AS/NZS 5601.1 compliant | 12-month warranty
Frequently Asked Questions
1) What is the oven size and capacity?
The oven fits GN2/1 trays and features 4 rack positions with internal size 665 × 590 × 385 mm.
2) Can it operate on both Natural Gas and LPG?
Yes – the RN8610GC is supplied ready for NG and includes an LPG conversion kit.
3) How do I clean the range daily?
All burner heads, spill trays and oven shelves lift out easily. The stainless exterior wipes clean with a neutral detergent.
4) Does it include flame-failure safety?
Yes – all burners are fitted with flame-failure devices and piezo ignition for safe operation.
5) Is service available nationwide?
Yes – KW Commercial Kitchen and Waldorf service partners provide Australia-wide support and parts availability.
Ready to order or need expert advice?
Call 1300 001 366 or Contact our team.
