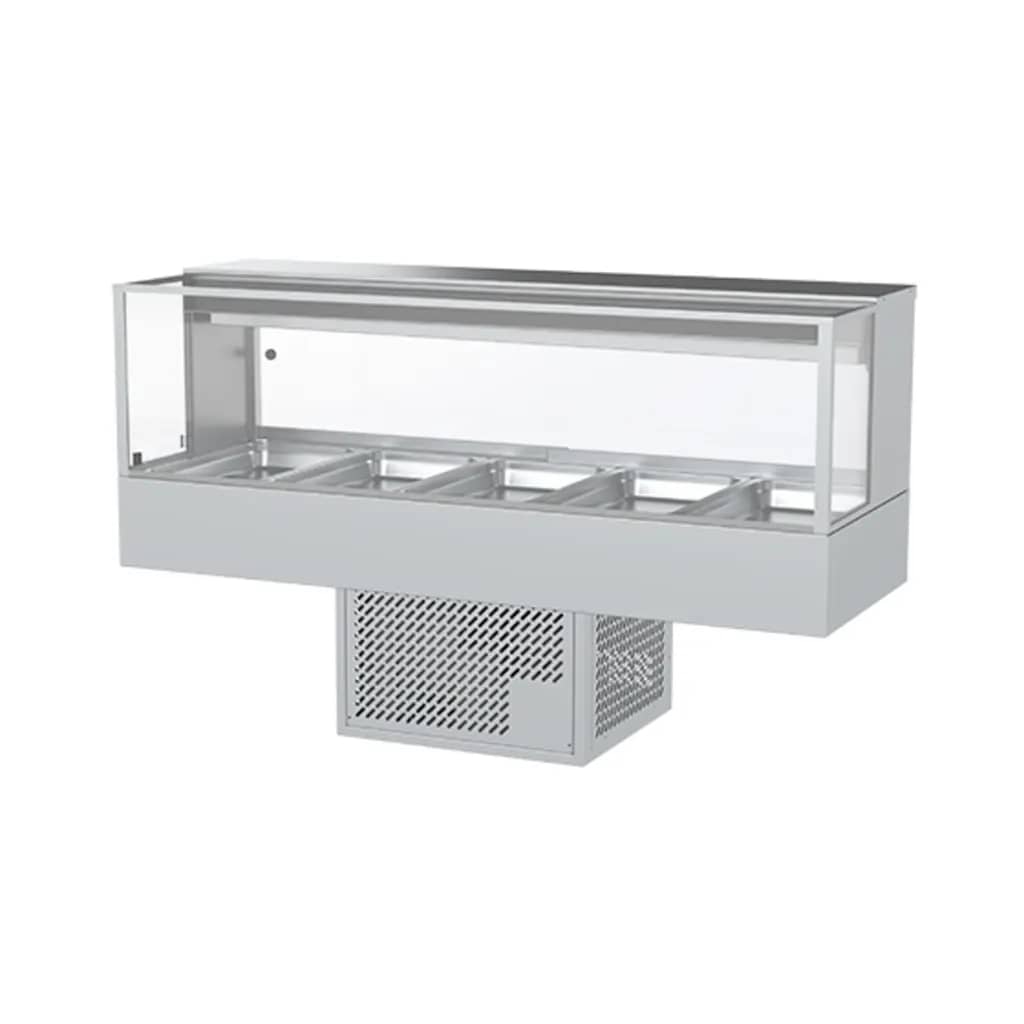

Woodson WR.CFSQ25 Cold Food Display – 5 Module, 1680mm Wide, Square Glass
The Woodson WR.CFSQ25 is a premium square-glass cold food display unit, featuring five refrigerated modules across 1680mm. Engineered for visual appeal and efficient food safety, it uses a cold plate with cross-fin coil design to circulate air evenly across the well surface, ensuring food stays between 2°C and 5°C.
With top-mounted LED lighting, double-glazed glass panels, and rear roller doors, this display cabinet is ideal for salad bars, cafés, and buffets. The air-insulated tank helps reduce energy consumption while maintaining chilled performance throughout service.
Key Features
- 5-module refrigerated food display – 1680mm wide
- Square profile with double-glazed toughened glass
- Cold plate and cross-fin coil system for even chilling
- Digital controller with adjustable temp range: 2°C to 5°C
- Rear roller doors with toughened glass panels
- Top-mounted LED strip lights for enhanced visibility
- Air-insulated, double-skinned stainless steel tank
- GN 1/1 pan compatible up to 65mm deep (pans sold separately)
- R134a refrigerant, 10A plug for easy install
- Made in Australia by Woodson
Specifications
| Specification | Details |
|---|---|
| Model | WR.CFSQ25 |
| Modules | 5 |
| Dimensions | 1680mm (W) x 608mm (D) x 660mm (H) |
| Temperature Range | 2°C to 5°C |
| Refrigeration Type | Cold plate with cross-fin coil |
| Refrigerant | R134a |
| Power | 0.84kW / 240V / 10A plug |
| Ambient Rating | Up to 32°C |
| Pan Compatibility | GN 1/1 x 65mm deep (not included) |
| Warranty | 12 Months Onsite (Australia) |
Applications
- Commercial salad bar and sandwich preparation
- Cold service counters in cafés and delis
- Hotel breakfast buffets
- Front-of-house cold food presentation
Important Notes
- Unit requires proper ventilation – not suitable for fully enclosed cabinetry
- GN pans sold separately – use Woodson pans for guaranteed fit
- Optional cutting board (Woodson W.CB25) available separately
Frequently Asked Questions
What power does the WR.CFSQ25 use?
It operates on a standard 240V, 10A plug – no hard wiring needed.
Does the WR.CFSQ25 come with pans included?
No. GN 1/1 pans are sold separately. The unit supports up to 65mm depth per pan.
Is this model suitable for built-in installation?
Only if sufficient ventilation is provided. Undermount refrigeration needs airflow for efficient performance.
