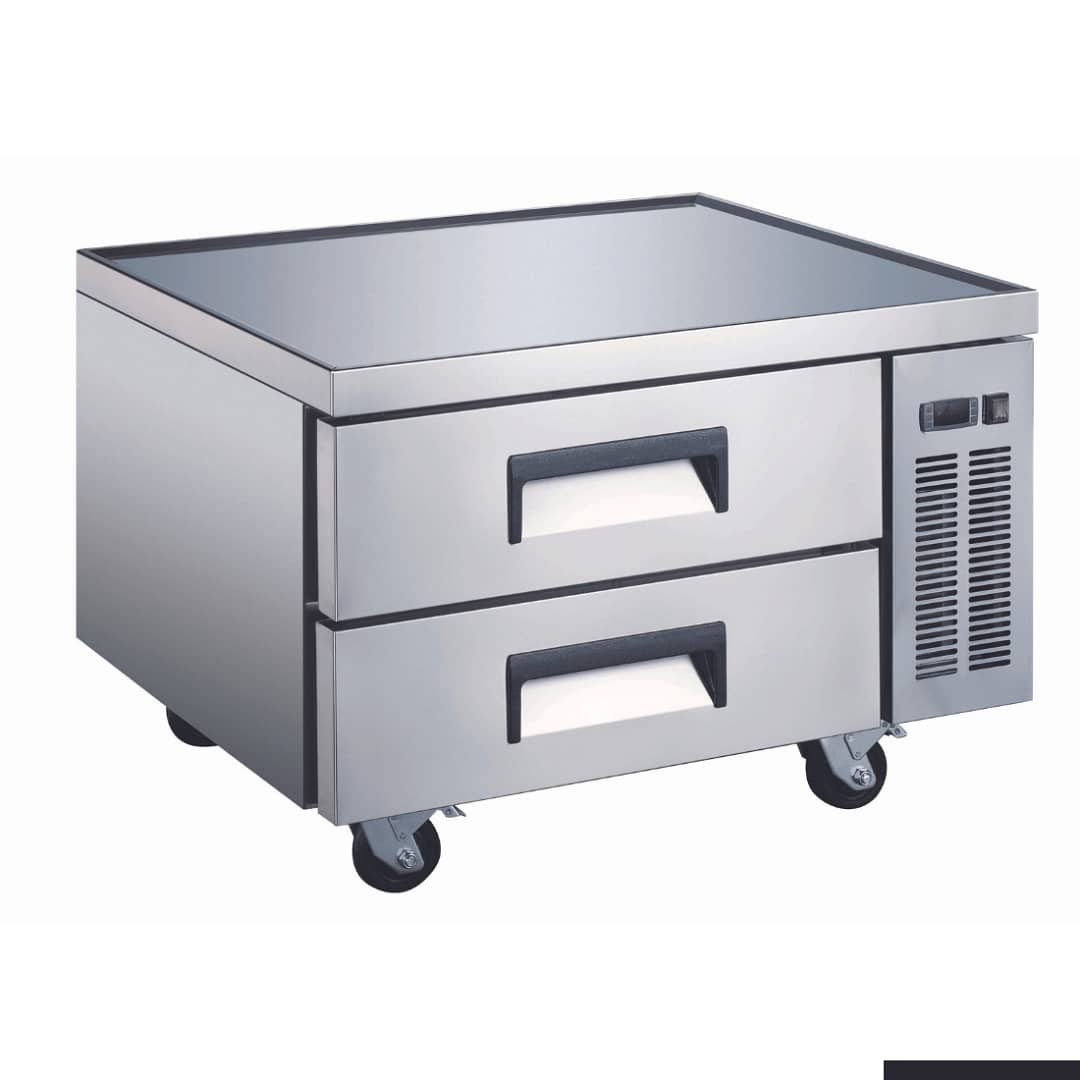

FED-X XCB-36 Chef Base Refrigerated Drawer Bench 184L

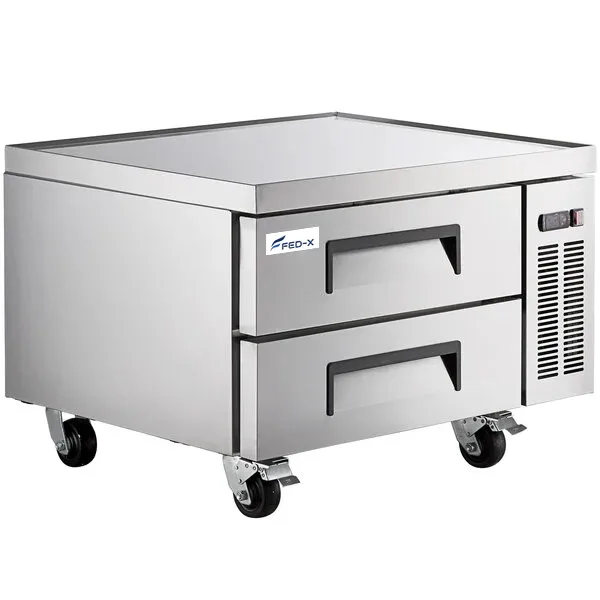

The FED-X XCB-36 is a chef-base fridge with two drawers, 184 L gross and 162 L net storage. A reinforced raised-edge top and GN-pan drawer storage suit a cooking line with chilled ingredients close at hand.

XCB-36 suits a cooking station that places refrigerated drawer storage beneath compatible benchtop equipment. Confirm the cooking appliance's support, ventilation and heat-clearance requirements before pairing the two units.

• Cooking lines needing chilled GN-pan drawer storage.
• Stations using a reinforced chef-base top beneath suitable benchtop equipment.

• Choose a standard door counter fridge when shelf storage is preferable to drawers.
• Choose a larger chef base when the required cooking equipment or pan layout exceeds this model's supported arrangement.

Check the cooking appliance's footprint and support requirements against the top and its load rating. Confirm heat and ventilation clearances for both pieces of equipment.

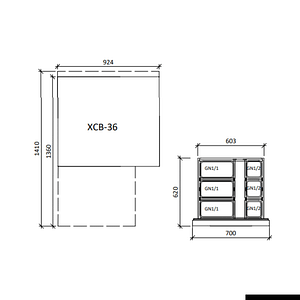

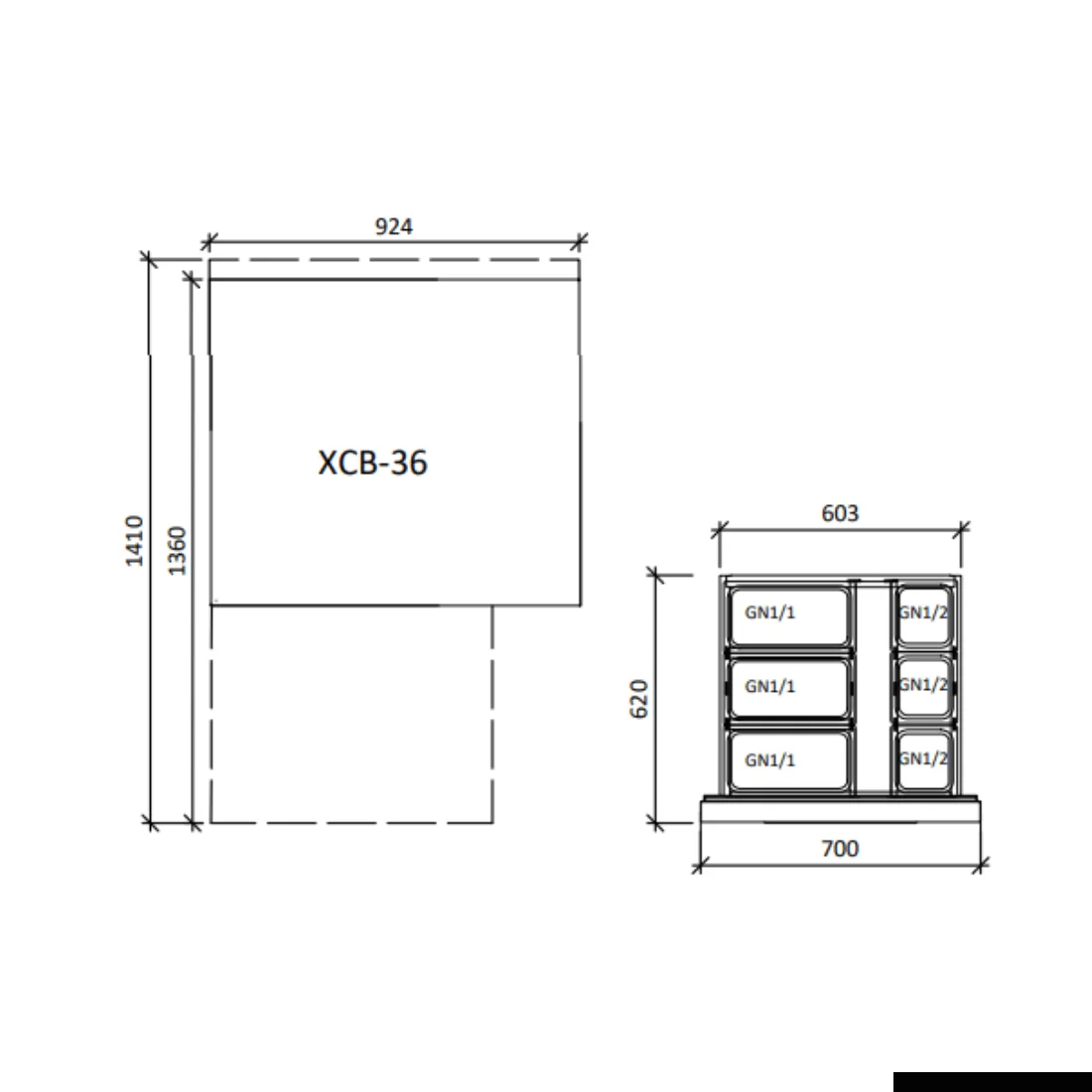

Plan the GN-pan layout before ordering: pans are separate and limited to 100 mm depth. Use 162 L net volume and the internal compartment dimensions to assess storage.

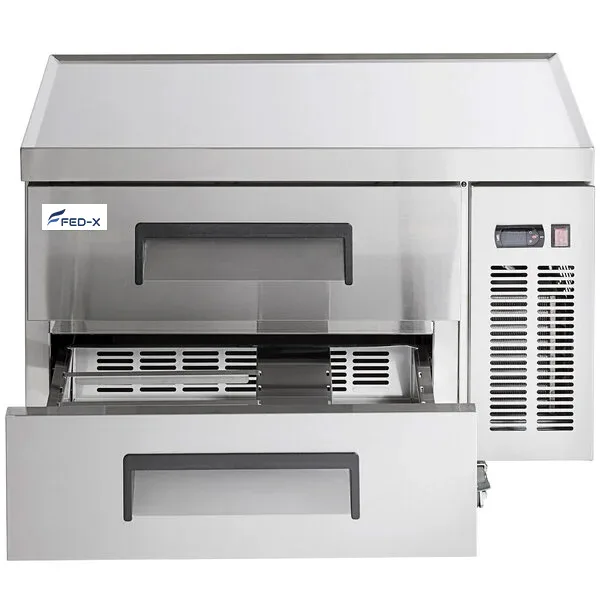

• Two refrigerated drawers with removable magnetic gaskets.
• Reinforced raised-edge top with a stated load limit.
• GN 1/3 and GN 1/6 pan support.

• GN pans are required and sold separately.
• The cooking appliance needs its own support and clearance checks.

• FED-X XCB-48 Chef Base Refrigerated Drawer Bench 263L: XCB-48 provides a larger chef-base format with a listed 263 L gross capacity.
• Airex AXR.CB.2W Refrigerated Chef Base – 2 Drawer - Wide: AXR.CB.2W offers a wide two-drawer chef-base arrangement.

• Installation layout. Check the dimensions in Key Specifications above, drawer opening space and the cooking appliance's requirements. Retain access to refrigeration components.

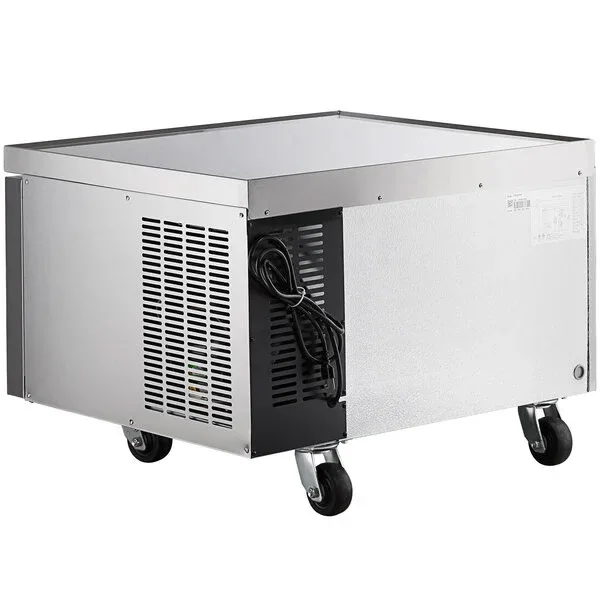

• Connection and care. Provide a 240 V, 50 Hz supply suitable for the 10 A plug and lead. Clean drawer seals, internal corners and the water tray routinely; apply the front castor brakes after positioning.

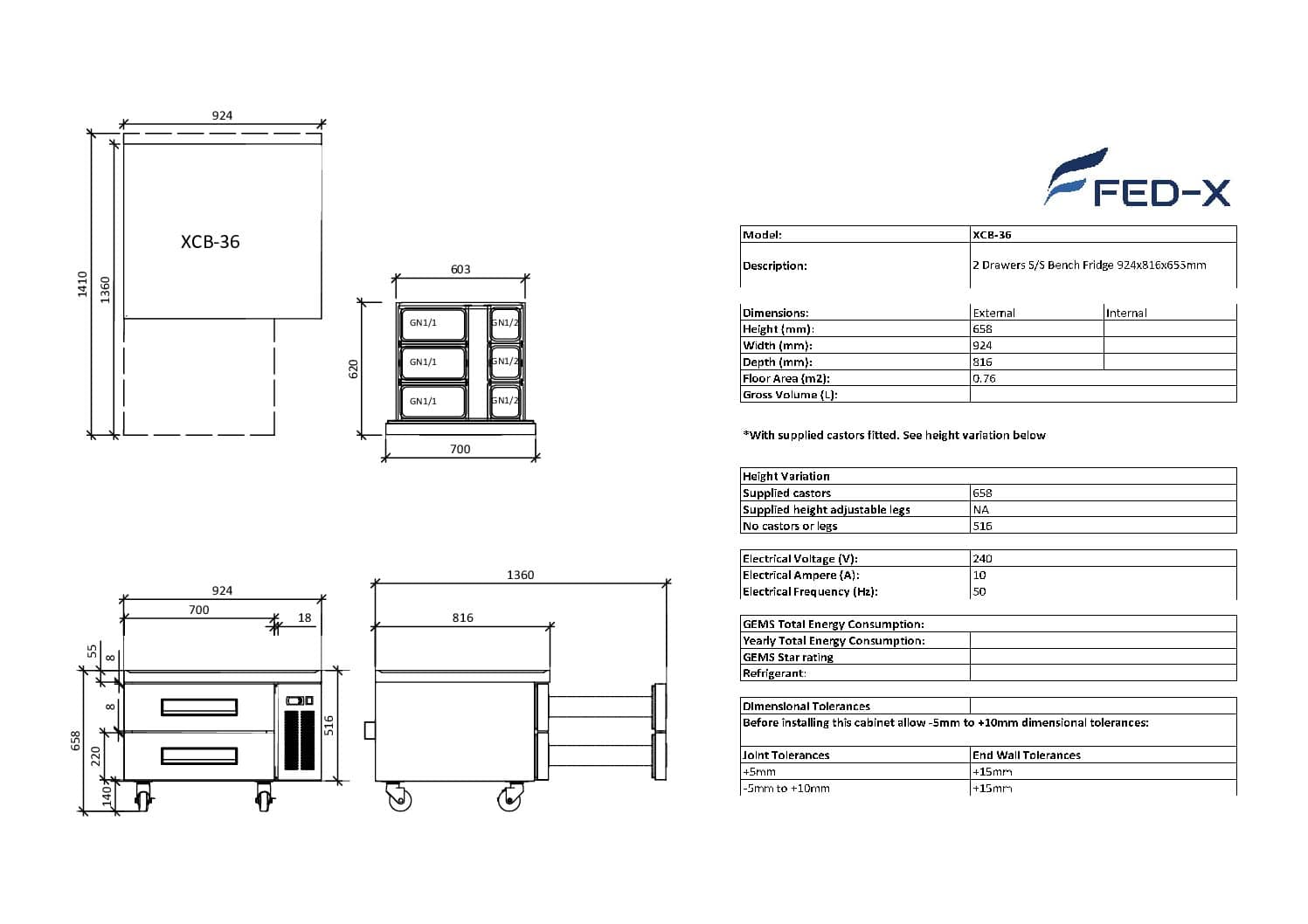

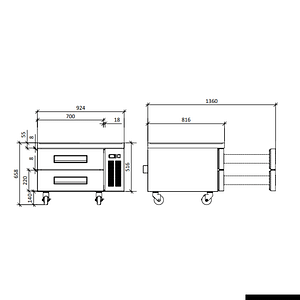

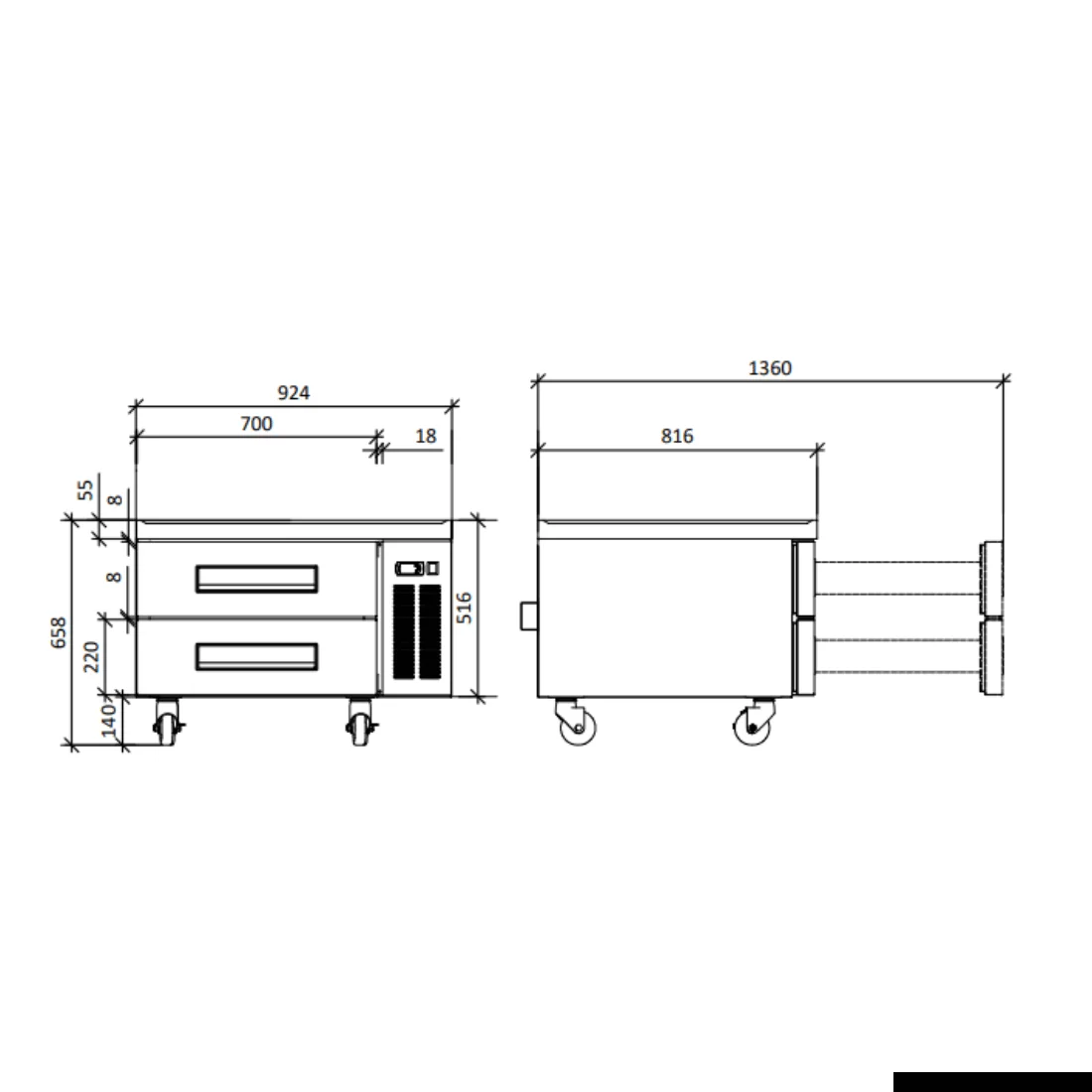

For body dimensions, see Key Specifications above.
