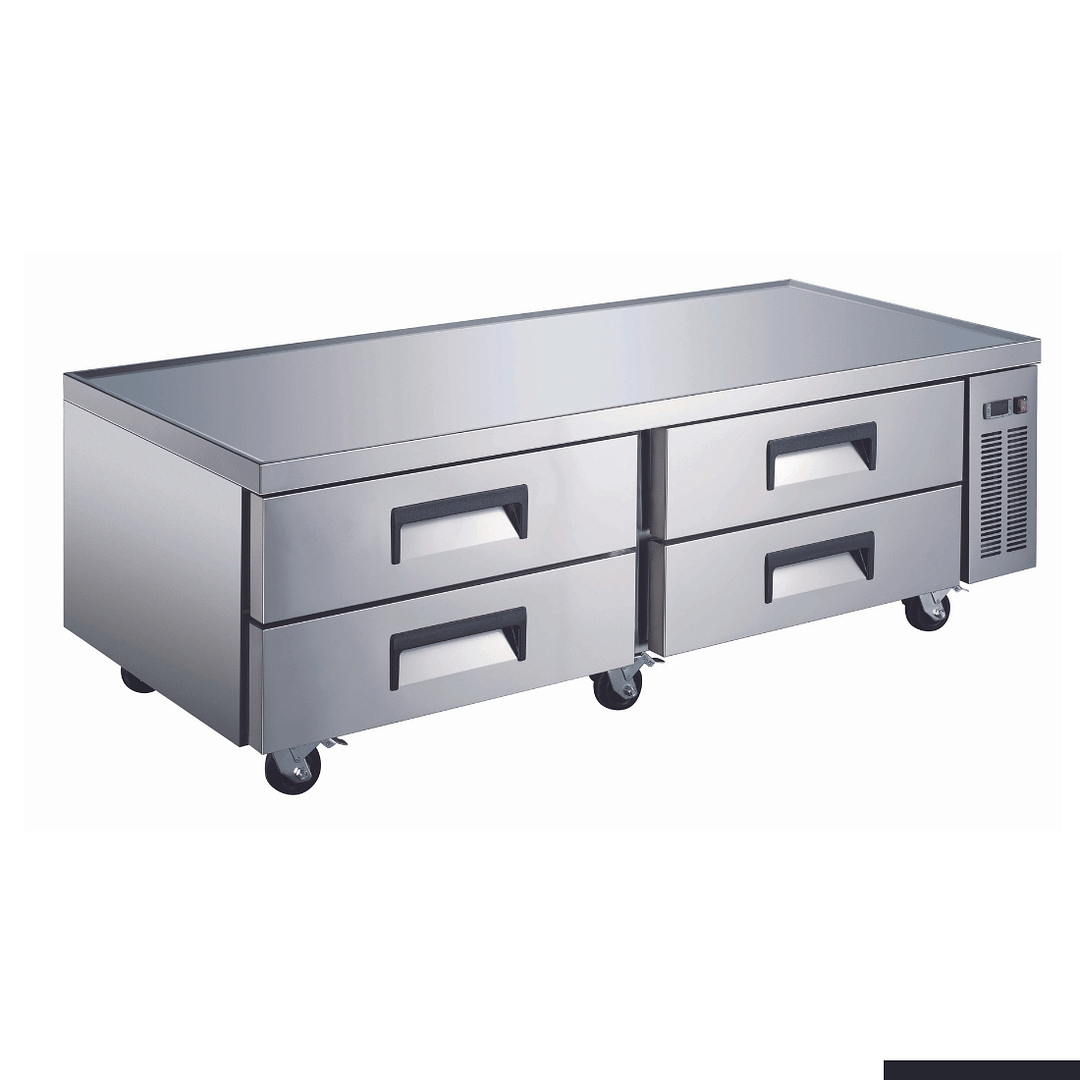

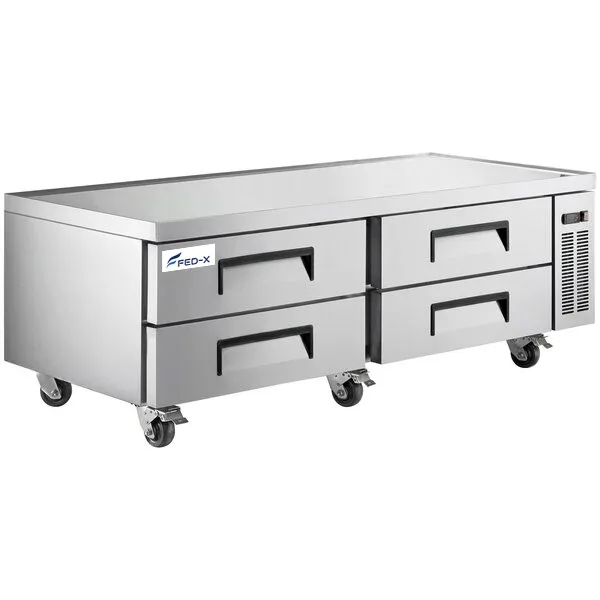

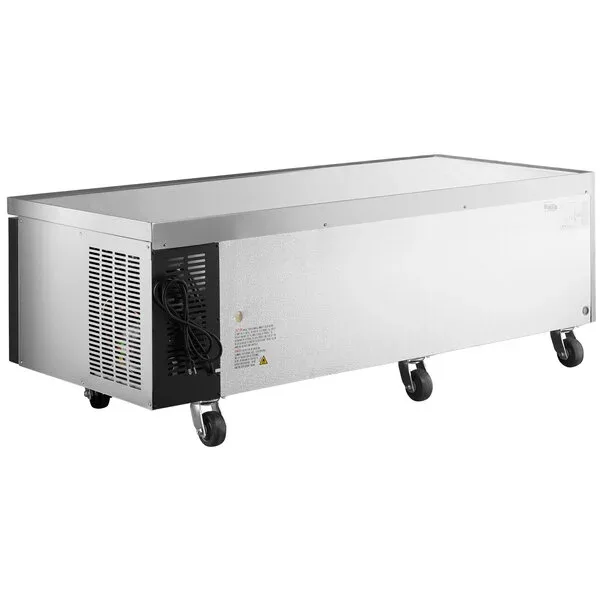

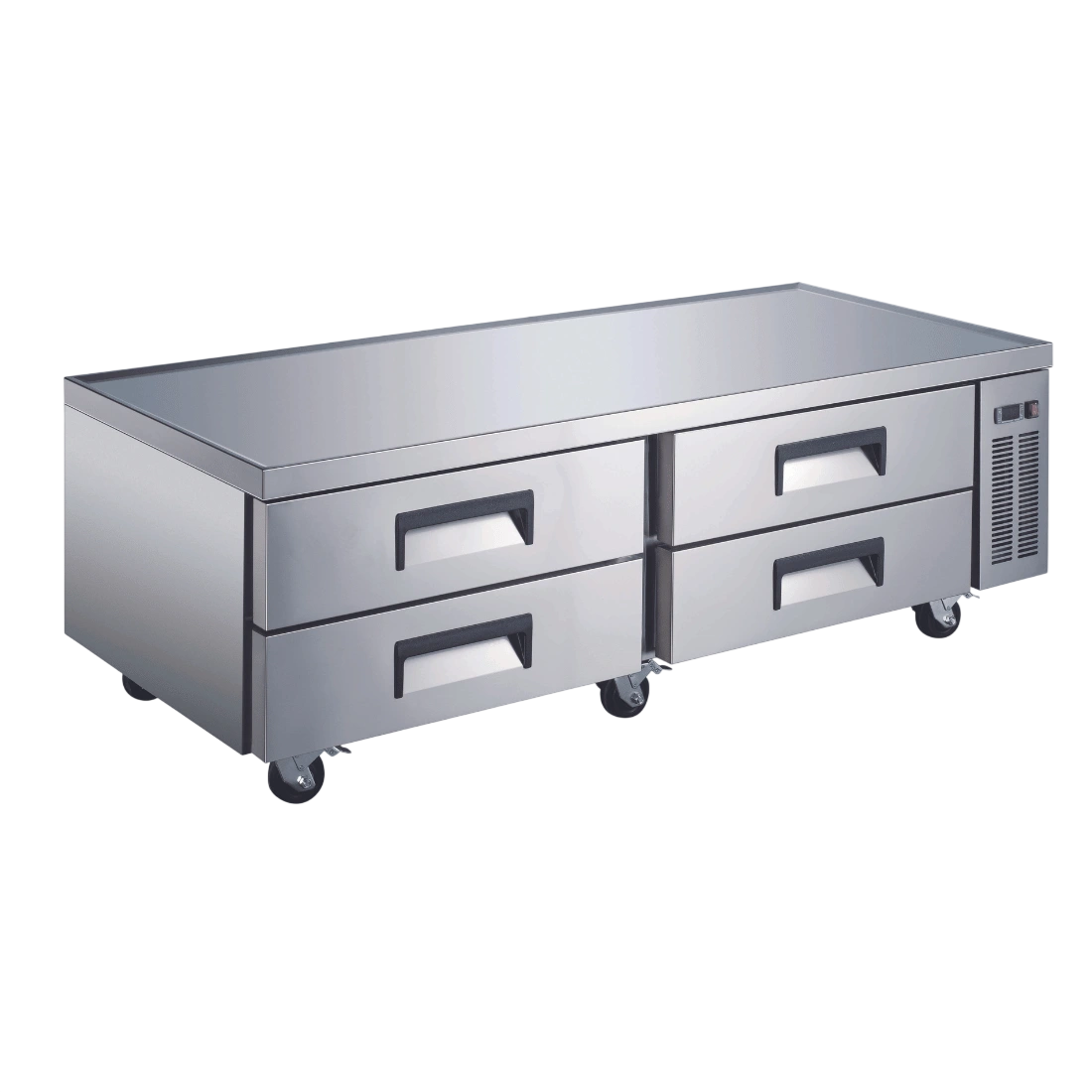

FED-X XCB-72 Chef Base Refrigerated Drawer Bench – 453L, 4 Drawers
Built for Gaxmax Equipment | Compact, Cool, & Reliable
The FED-X XCB-72 Refrigerated Drawer Bench is a powerful 453L chef base designed for commercial cooking stations. With four refrigerated drawers and a flat surface to support countertop equipment, this unit maximizes kitchen workflow, space, and cooling efficiency.
Key Features

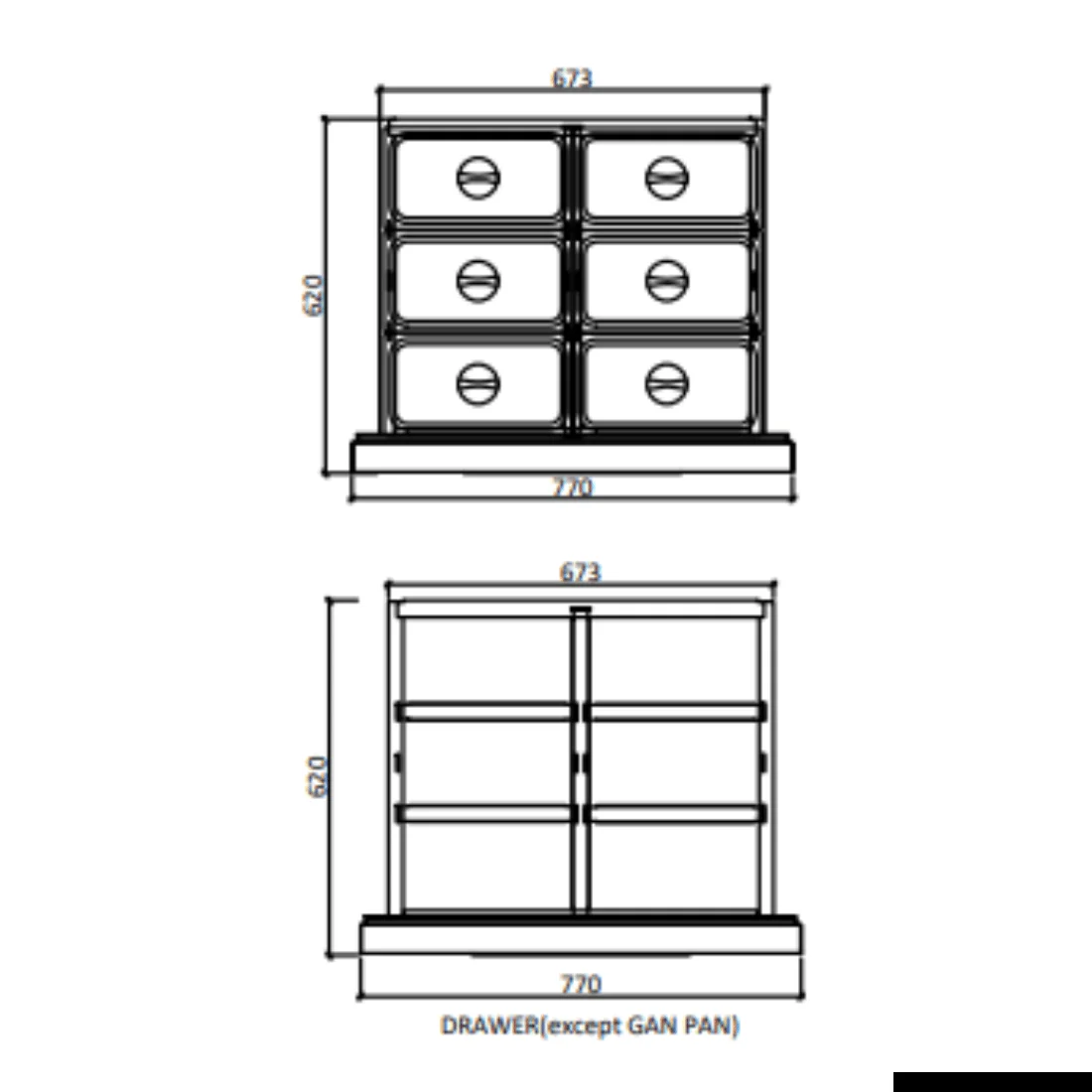

- 4 refrigerated drawers, compatible with GN pans (sold separately)
- Stainless steel construction with round corners for hygiene
- 60mm CFC/HFC-free foam insulation – tropical rated
- Digital controller for precise temp adjustment (0°C to +5°C)
- Fan-forced evaporator cooling for rapid recovery
- Front-locking castors for mobility and security
- Austrian Fulterer runners for smooth drawer movement
- Removable drawer gaskets for easy maintenance
- Raised edge top to prevent spills
Technical Specifications
- Capacity: 453 Litres
- Drawers: 4
- Temperature Range: 0°C to +5°C
- Pan Depth: Up to 100mm
- Ambient / RH: 32°C / 60%

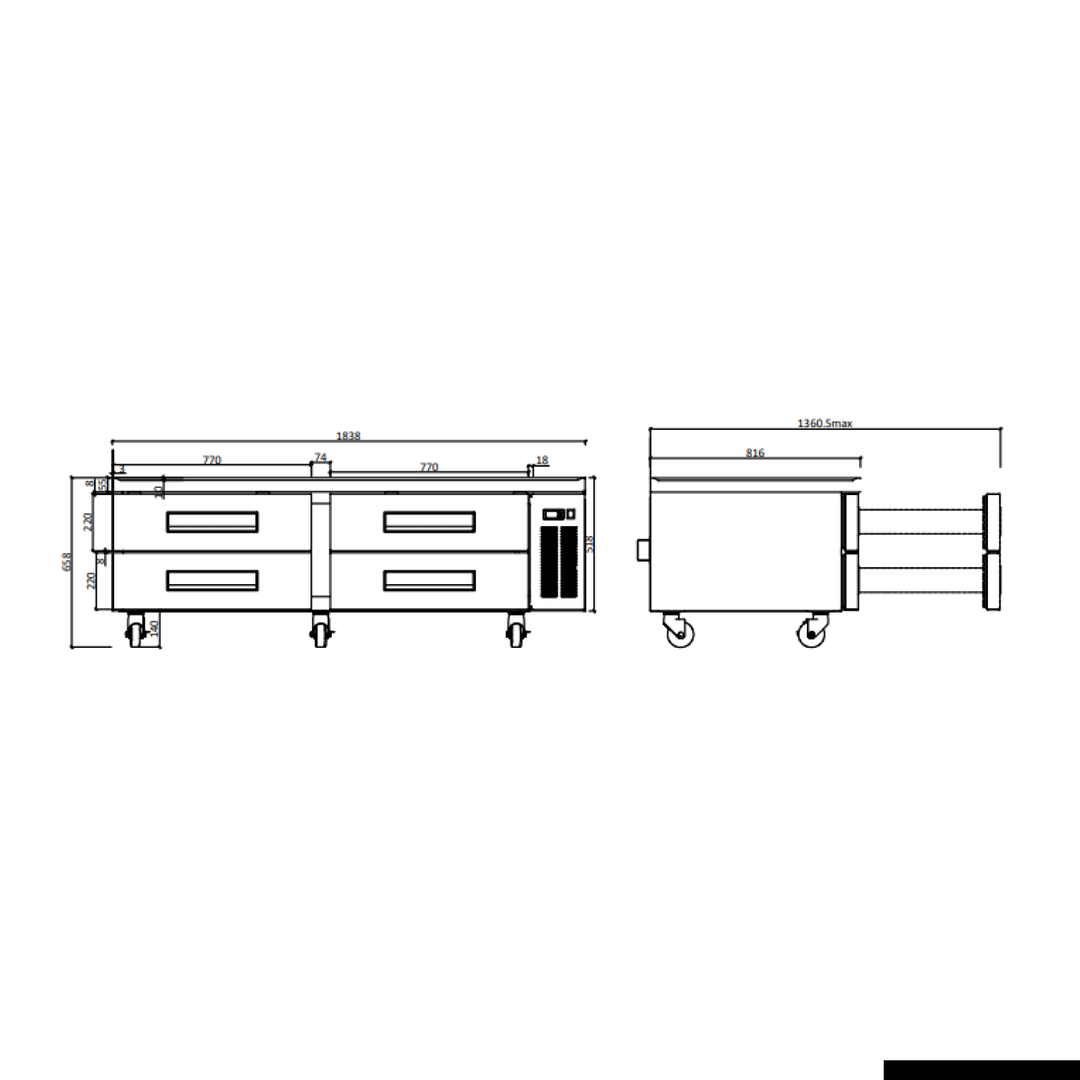

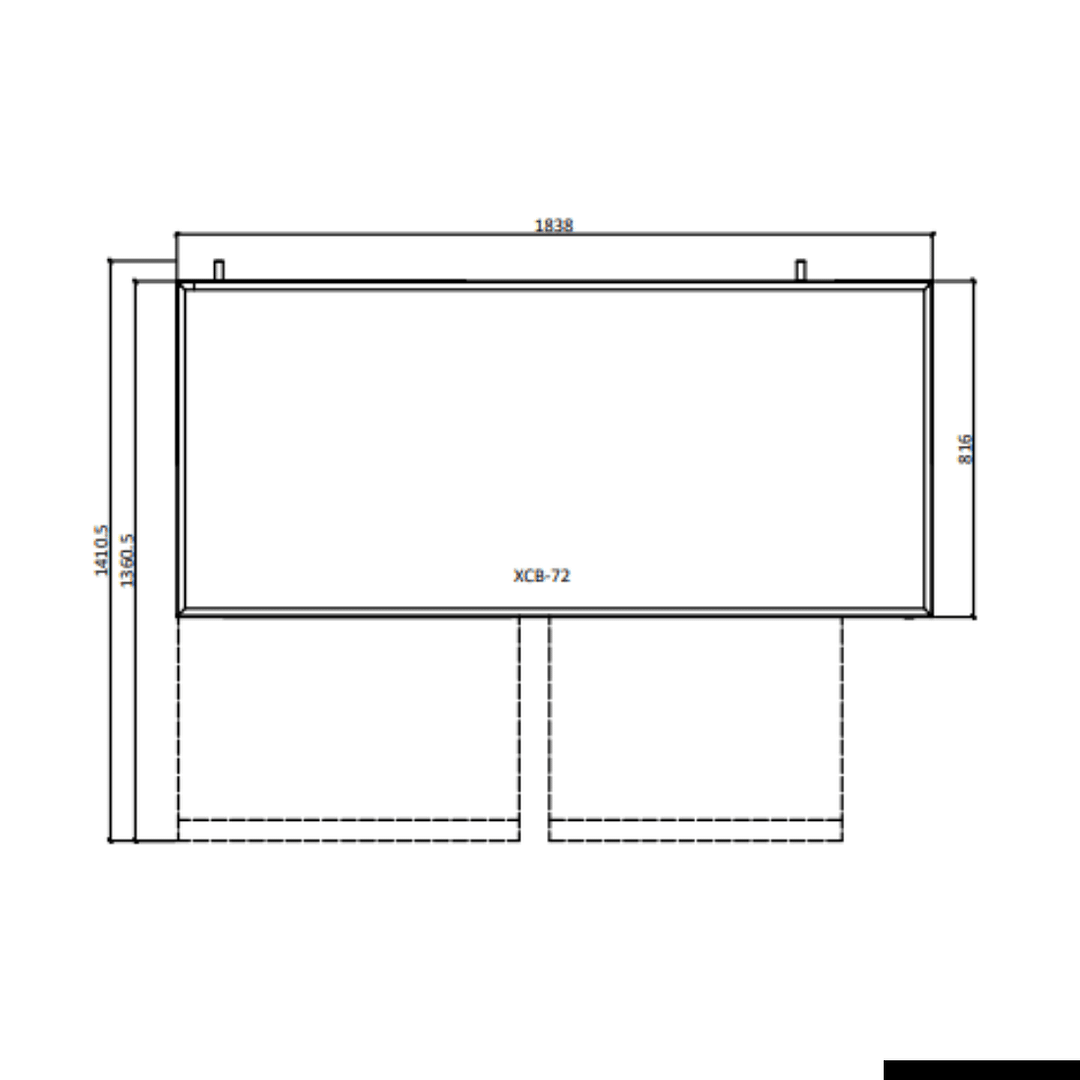

- Dimensions: 1838(W) × 816(D) × 658(H) mm
- Packing Dimensions: 1905 × 886 × 724 mm
- Power: 240V, 660W, 10A
- Net Weight: 125kg
- Warranty: 2 Years Parts & Labour + 2 Years Parts Only (register in 14 days)
Why Choose This Unit?
- Space-saving design supports cooking equipment
- Reliable cooling in tough Australian conditions
- Long-life components and efficient operation
How do I install the XCB-72 Chef Base?
Place on level flooring, plug into a 240V socket, and ensure airflow around the vents. Use a certified technician for commercial installs.
Is this unit compatible with standard GN pans?
Yes, each drawer supports standard GN pans up to 100mm deep (not included).
What maintenance does it require?
Clean condenser coils monthly, check gaskets for seal integrity, and wipe interiors daily. Have a technician service it yearly.
