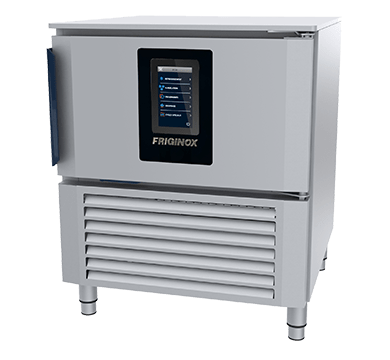

Friginox MX20ATS7 4 Tray Blast Chiller/Freezer – Precision Cooling
Updated:
At KW Commercial Kitchen, we supply the Friginox MX20ATS7, a high-performance blast chiller/freezer designed for 4×1/1 GN trays with 74mm spacing. Built for premium food preservation, it chills up to 20kg or freezes 10kg rapidly, ensuring HACCP compliance and consistent kitchen workflow.
Built for Australian restaurants, cafés & catering kitchens
The MX20ATS7 integrates a 7″ touch screen, 40 programmable cycles and 5 chilling/freezing modes (soft/hard chill, soft/hard freeze, adaptive I-Chilling) with eco-friendly R452A refrigerant in a compact stainless steel footprint.
Key features & specifications
- Tray capacity: 4 × 1/1 GN trays (74mm spacing)
- Load capacity: 20kg chill / 10kg freeze
- Temperature range: +90°C down to −18°C
- Power/Voltage: 1.6kW, 230–240V, 50/60Hz
- Dimensions (W×D×H): 770 × 790 × 945 mm
- Weight: 115kg
- Construction: 304 stainless steel with 60mm polyurethane insulation; adjustable legs
- Control panel: 7″ touch screen; 40 programs; quick recall of last 9
- Probe: 3-point core temperature probe for accuracy
- Extras: USB, printer, UV lamp, thawing & low fan options
- Warranty: 2 years parts & labour
Compliance & safety (AU)
- Electrical: RCM compliant; 230–240V 10A plug.
- Energy: GEMS/MEPS where applicable; eco R452A refrigerant.
- Food safety: HACCP process-ready; FSANZ-aligned practices.
Convenience & usage advice
- Save time: Use programmable cycles for consistent repeat results during service.
- Hygienic care: Clean probe and chamber after each use; wipe touchscreen with mild detergent.
Ideal applications
- Restaurants & cafés
- Catering kitchens
- Bakeries & patisseries
Frequently Asked Questions
1) How do I clean it daily without harming finishes?
Wipe stainless steel with a pH-neutral cleaner and microfibre cloth; clean probe after use; avoid abrasives and chlorine.
2) What routine maintenance keeps performance stable?
Vacuum condenser monthly; check seals quarterly; sanitise chamber regularly; schedule annual service for peak efficiency.
3) What are the power requirements and typical energy use?
230–240V, 1.6kW; approx. 10A plug; energy use varies by cycle and load.
4) What about installation and Australian compliance?
Free-standing; allow ventilation space; RCM compliant; meets HACCP and FSANZ safety guidelines.
5) Are spare parts and accessories available?
Yes – probes, touch screens, fans, gaskets and optional accessories are stocked. Quote model MX20ATS7 for exact parts.
Specs source: official Friginox MX20ATS7 datasheet.
