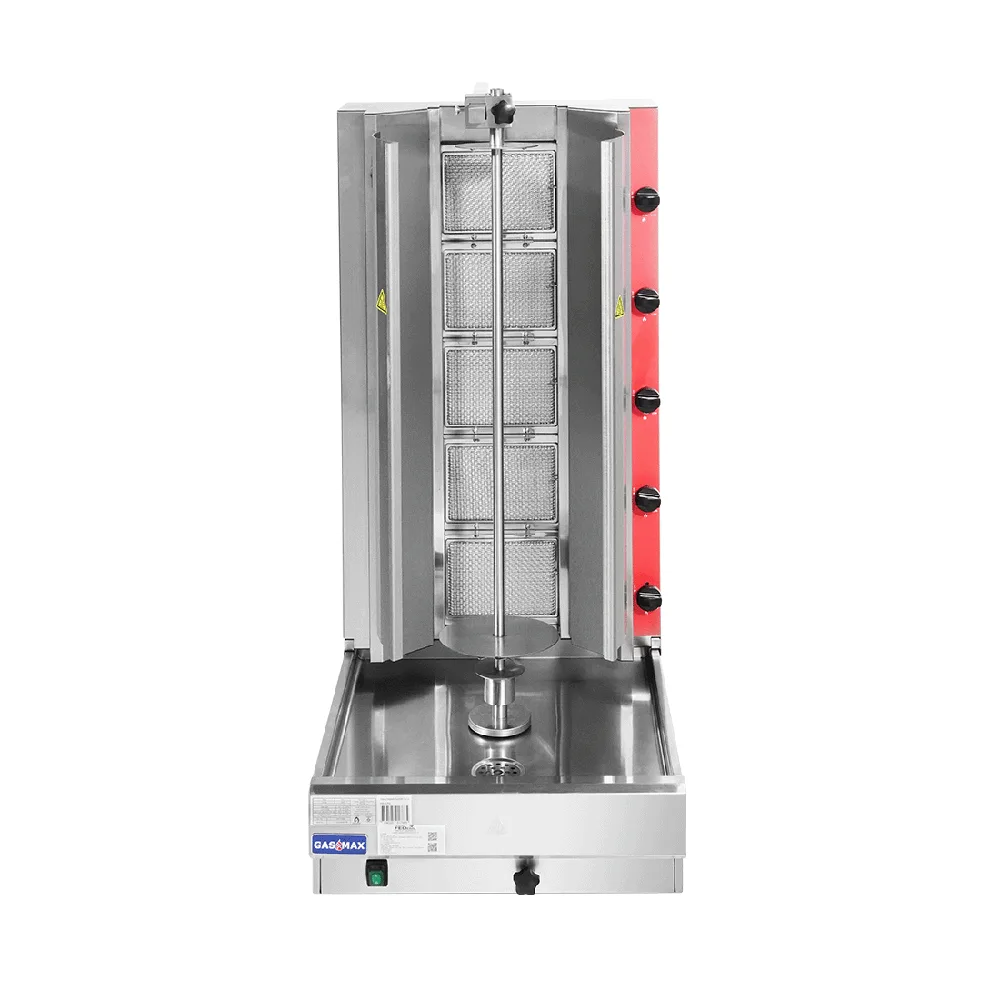

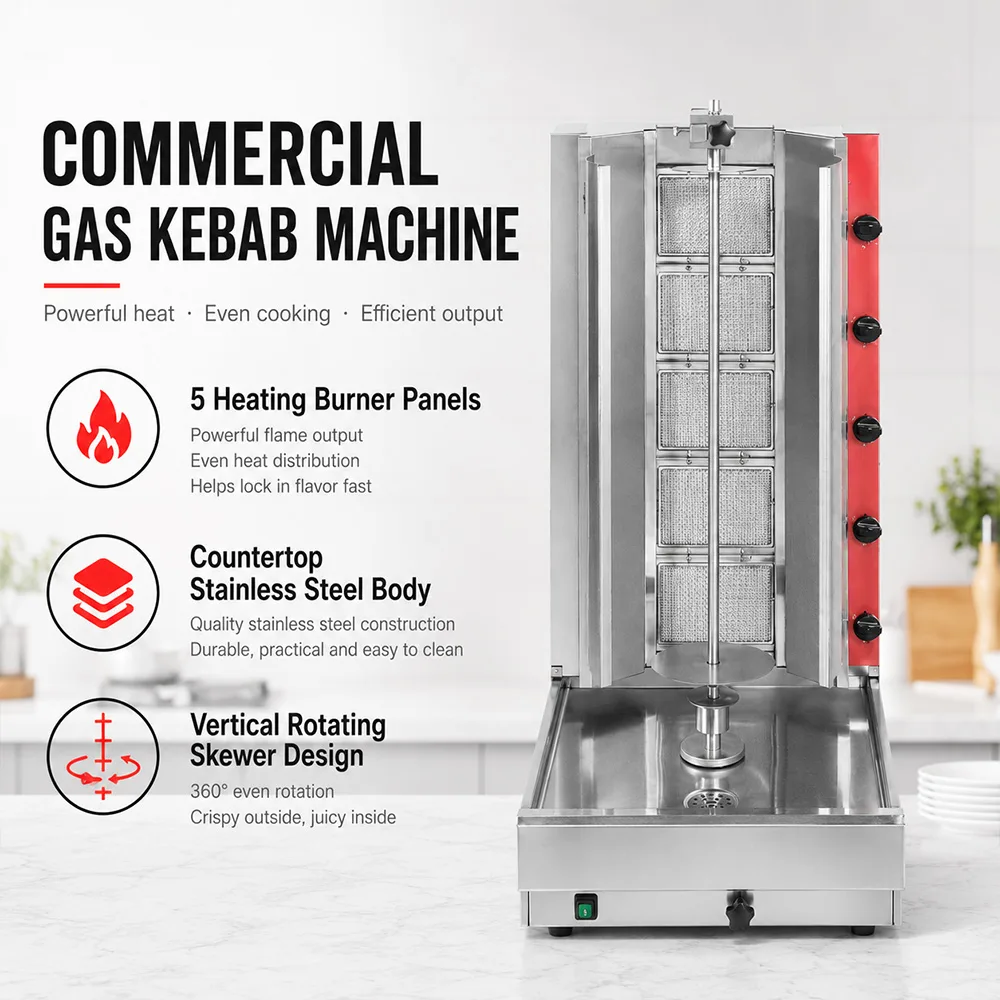

Gasmax KB-5 Semi-automatic 5 Burner NG Kebab Machine

• Sites using LPG should choose the Gasmax KB-5LPG instead.
• Buyers seeking a three-burner natural-gas configuration should compare the Gasmax KB-3.
• Operations planning meat loads above 56 kg should choose a kebab machine with a higher rated capacity.

Start with the meat load you intend to prepare. Match it to the 56 kg capacity, then assess the menu, carving routine and service demand separately.

Choose the gas version for the site before ordering: KB-5 uses natural gas, while KB-5LPG is the LPG alternative. Include the 65 MJ/h gas rating and 10A electrical connection in the installation plan.

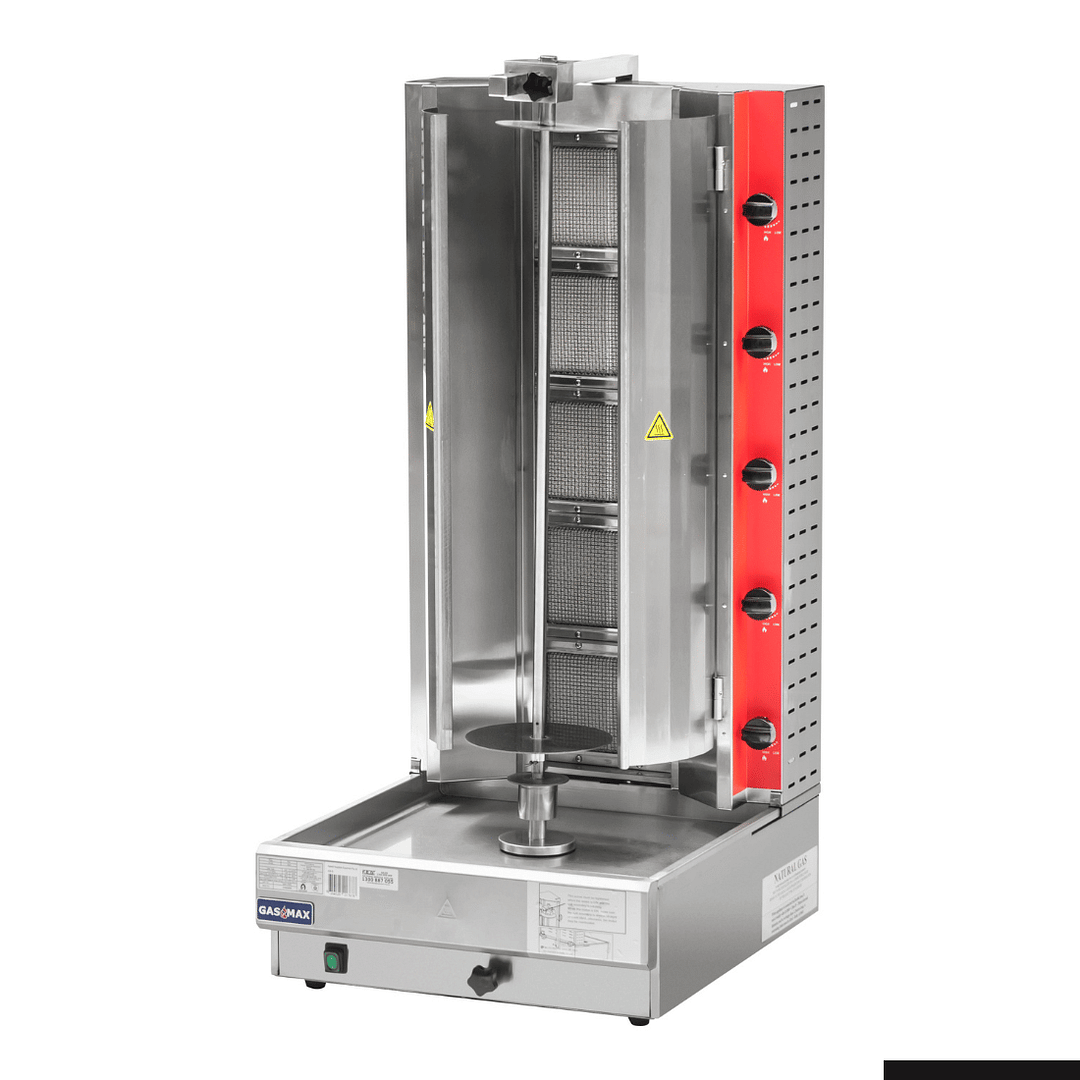

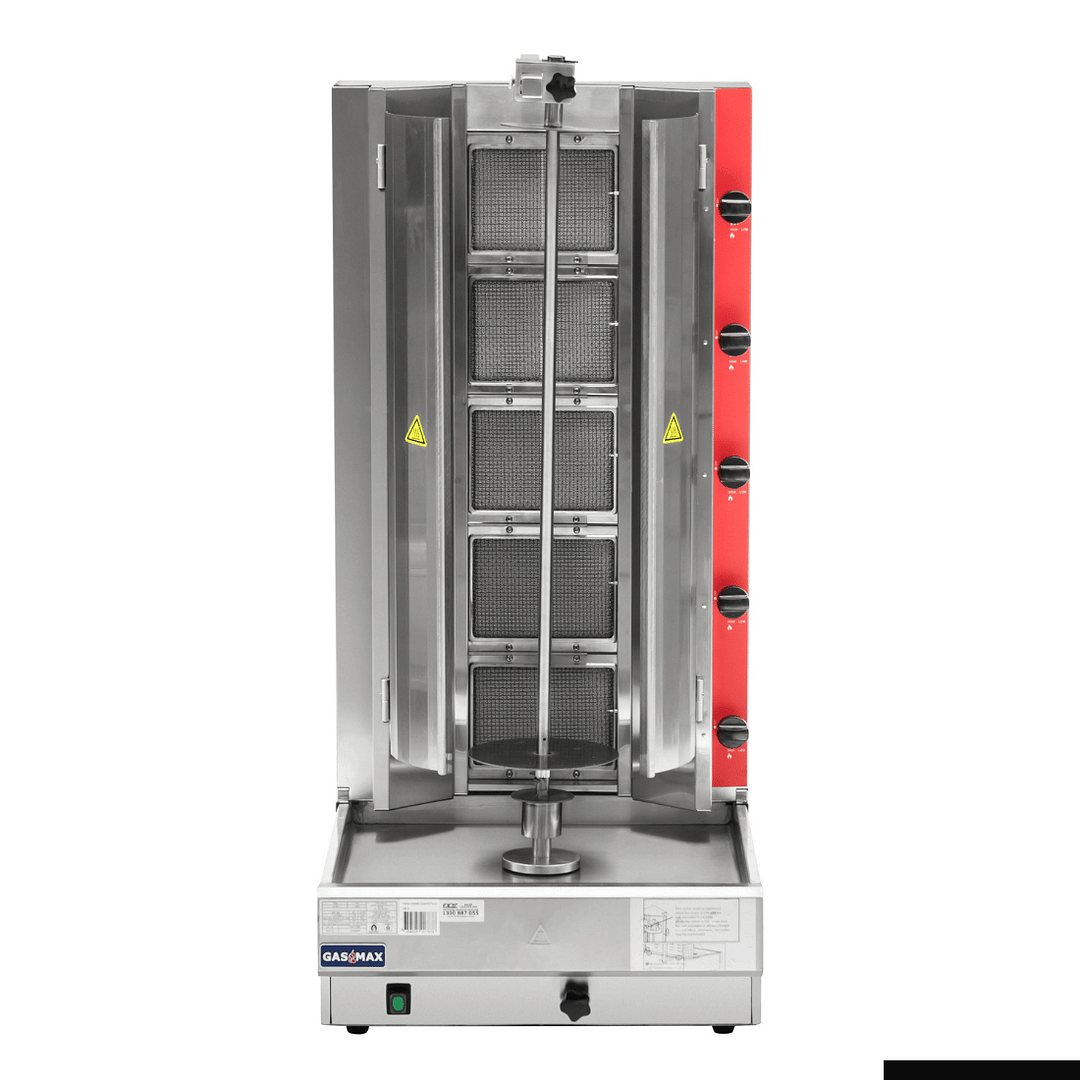

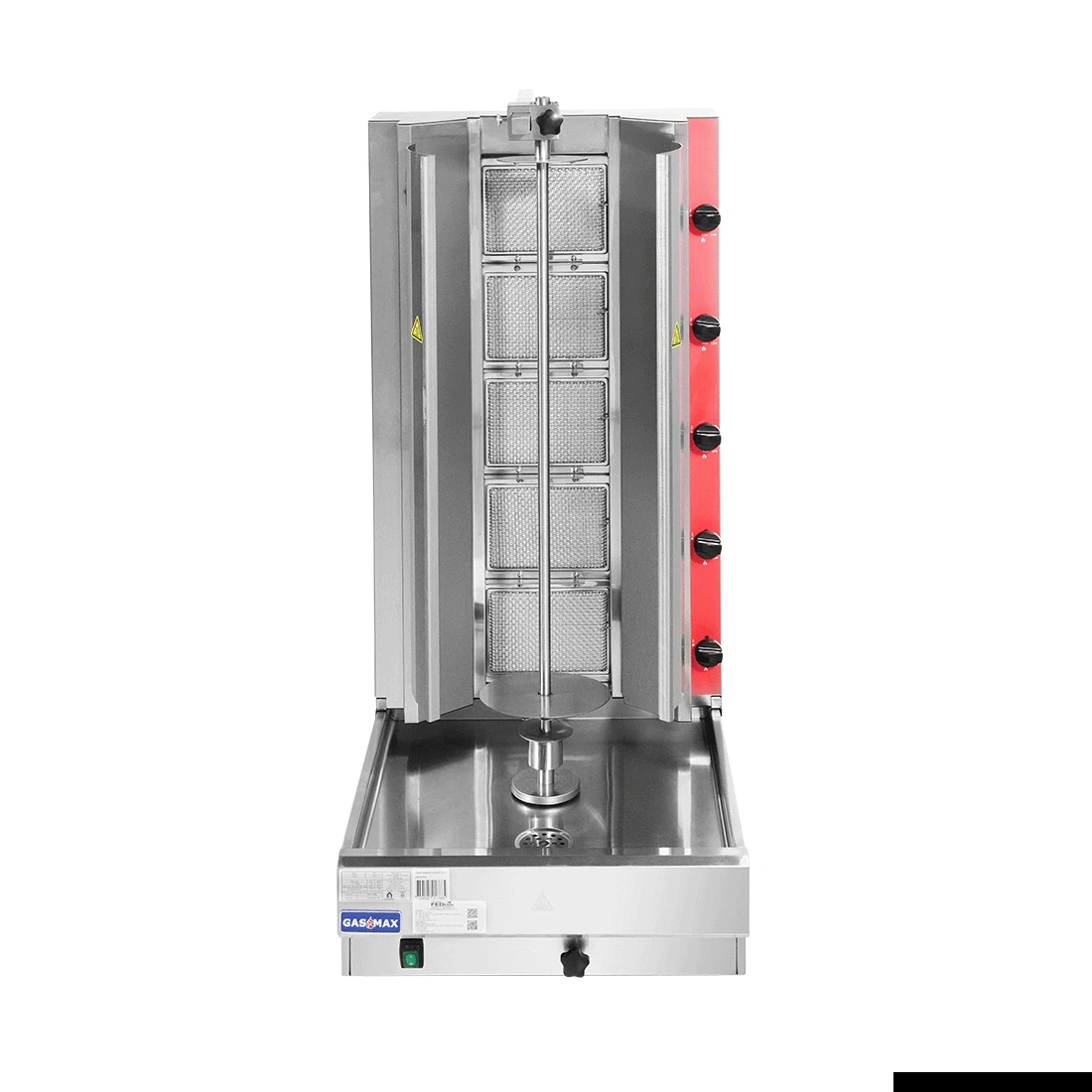

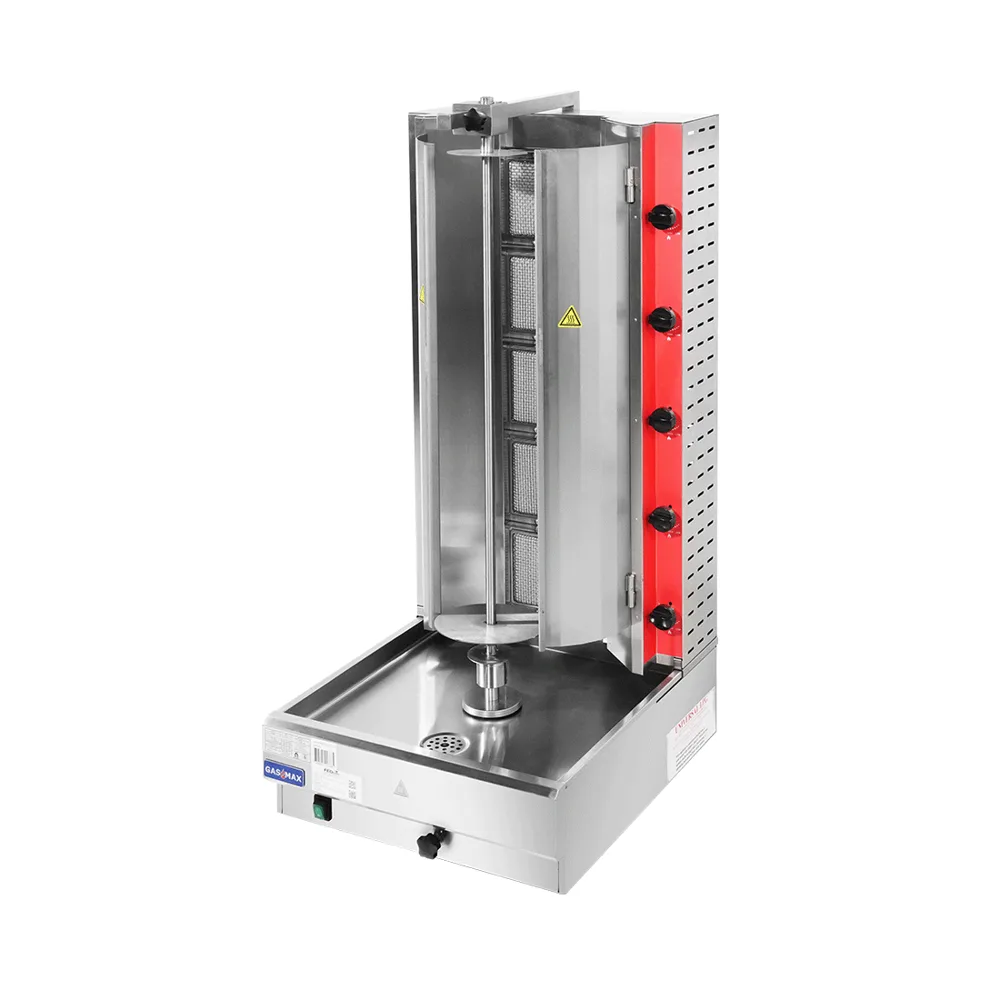

Compare the burner configuration as well as capacity. The KB-3 offers three burners on natural gas; the KB-5 provides five burners and five control knobs.

Check the dimensions in Key Specifications above against the access route and final cooking position. Allow additional room for the rear gas connection, ventilation, loading, carving, cleaning and servicing.

Watch the product video on this page to become familiar with the machine’s layout. Use the operating instructions for commissioning, lighting, cleaning and maintenance.

• 56 kg capacity for planning the meat load.

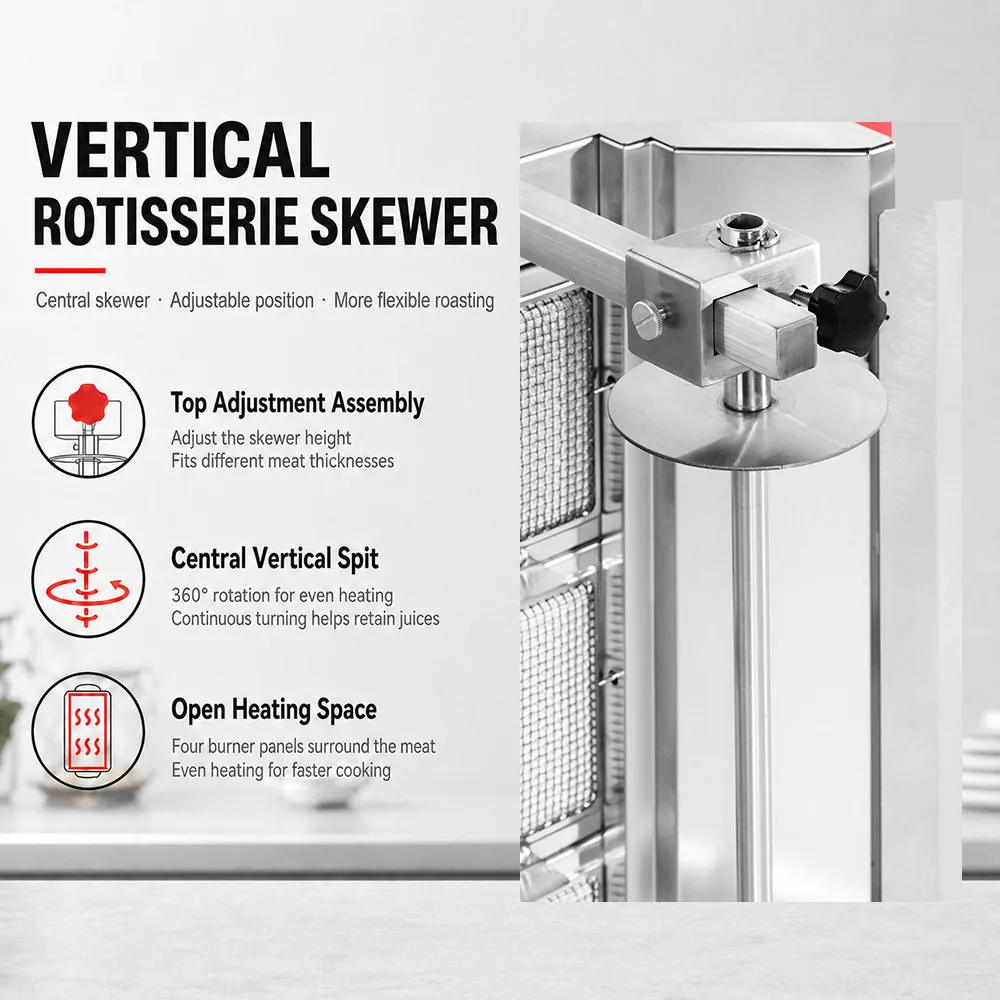

• Adjustable spit-to-burner distance provides control over heat exposure as the load becomes smaller.

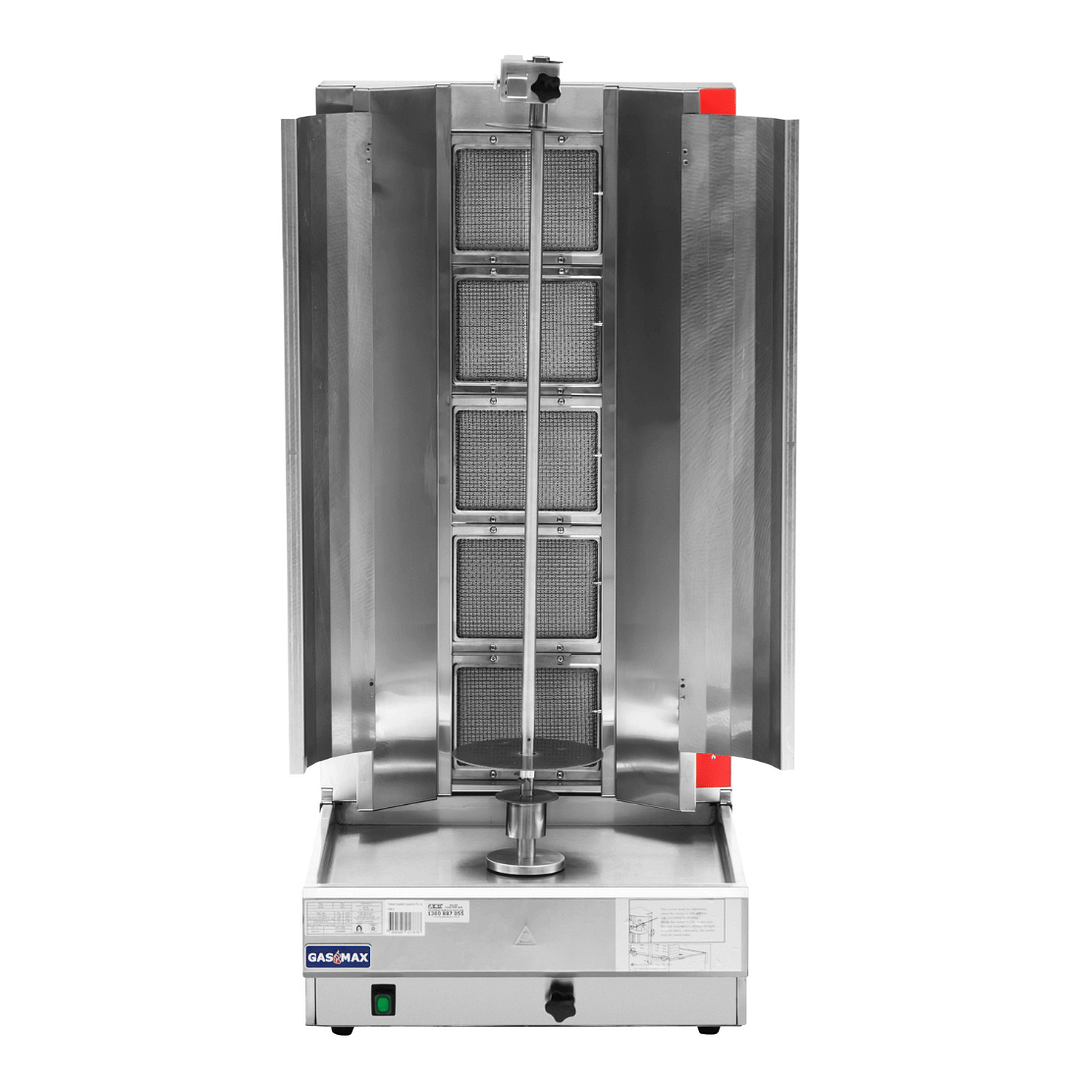

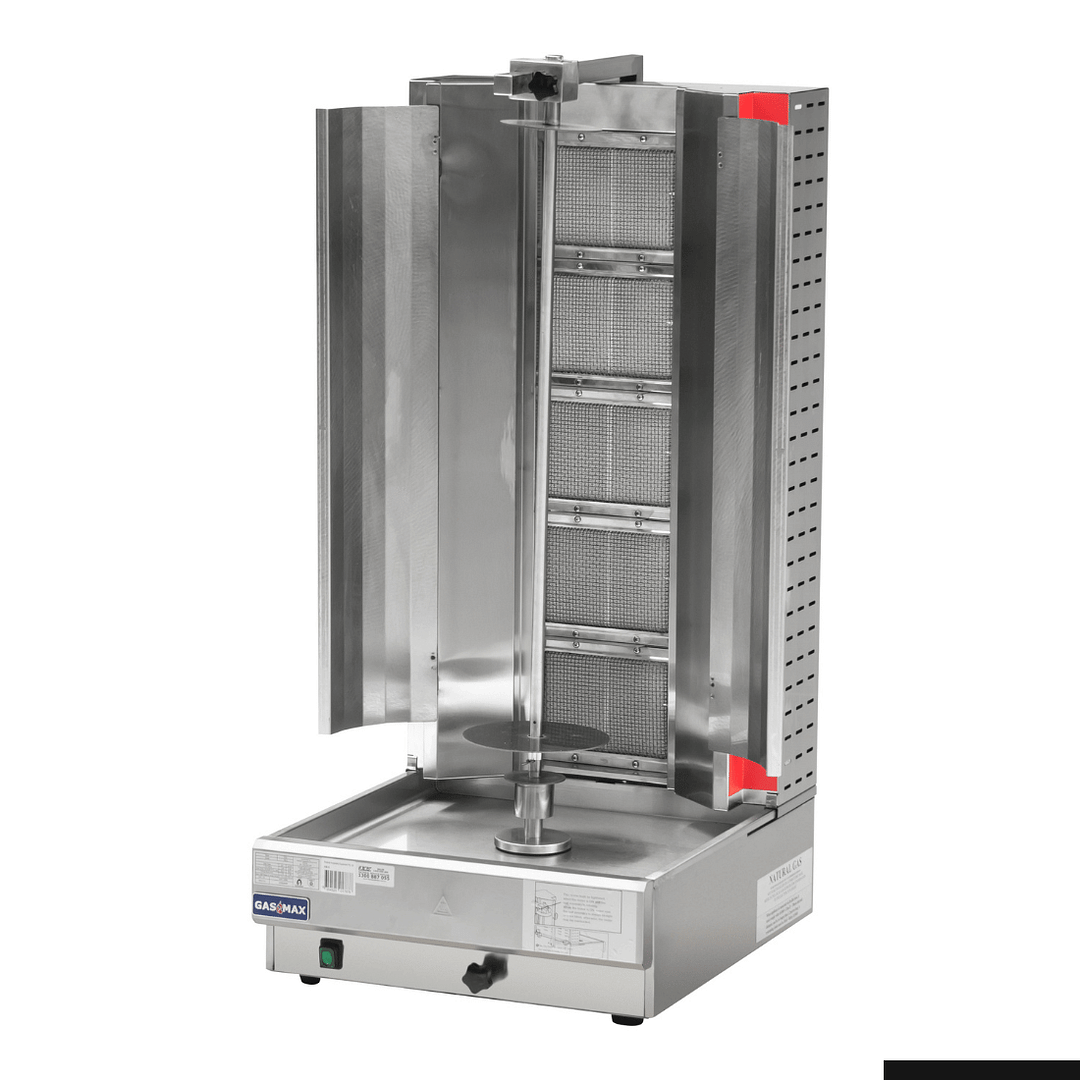

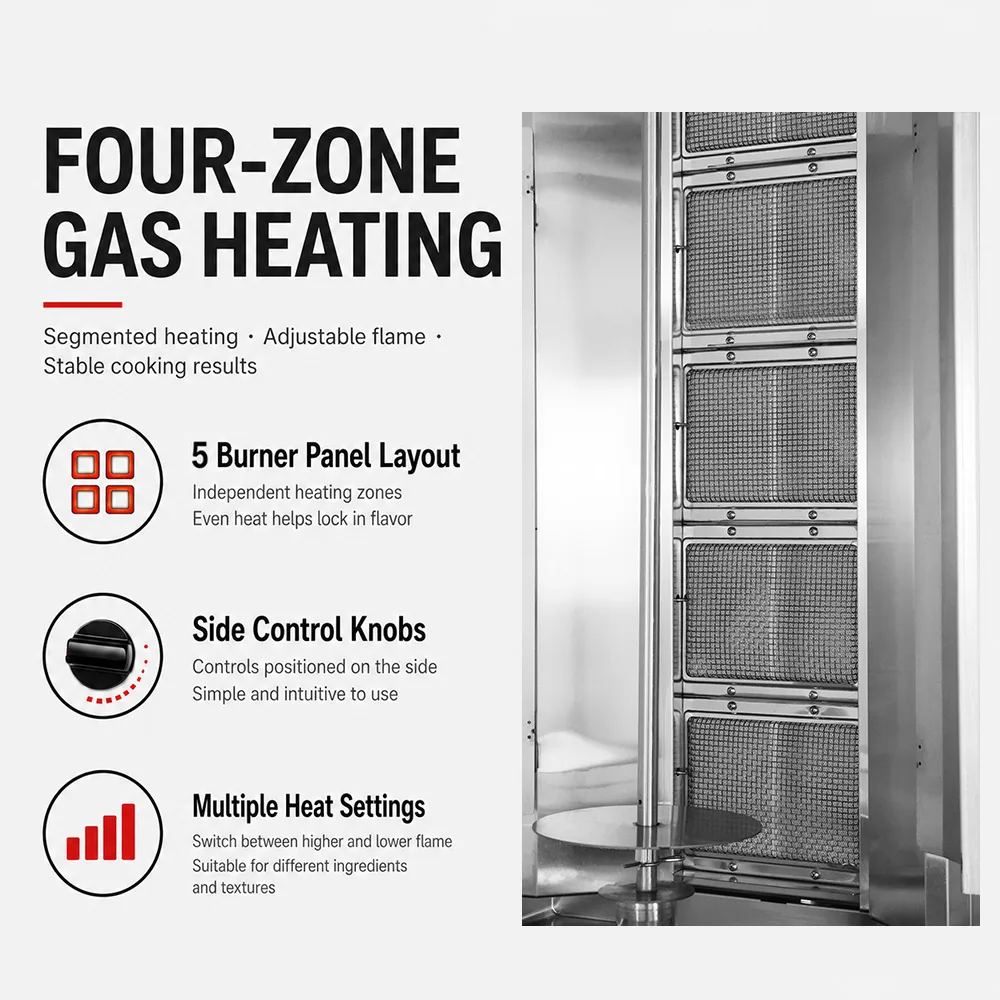

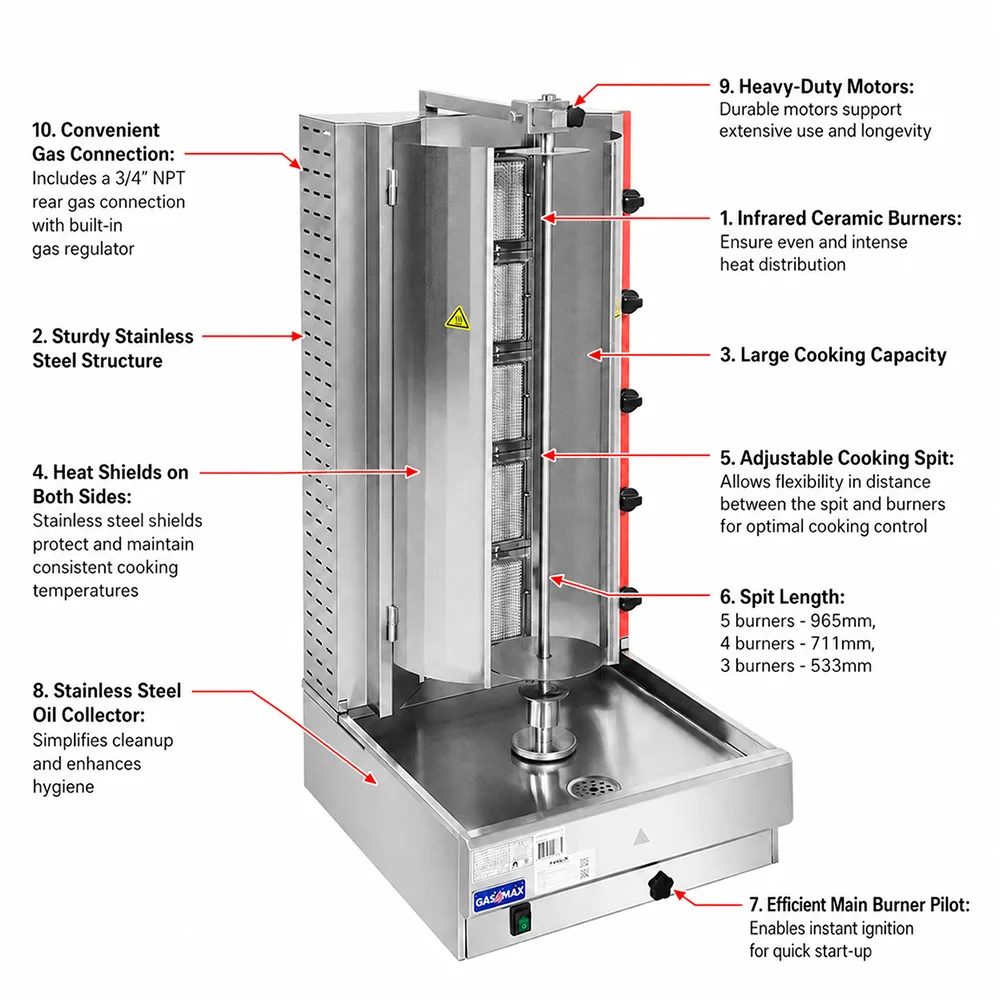

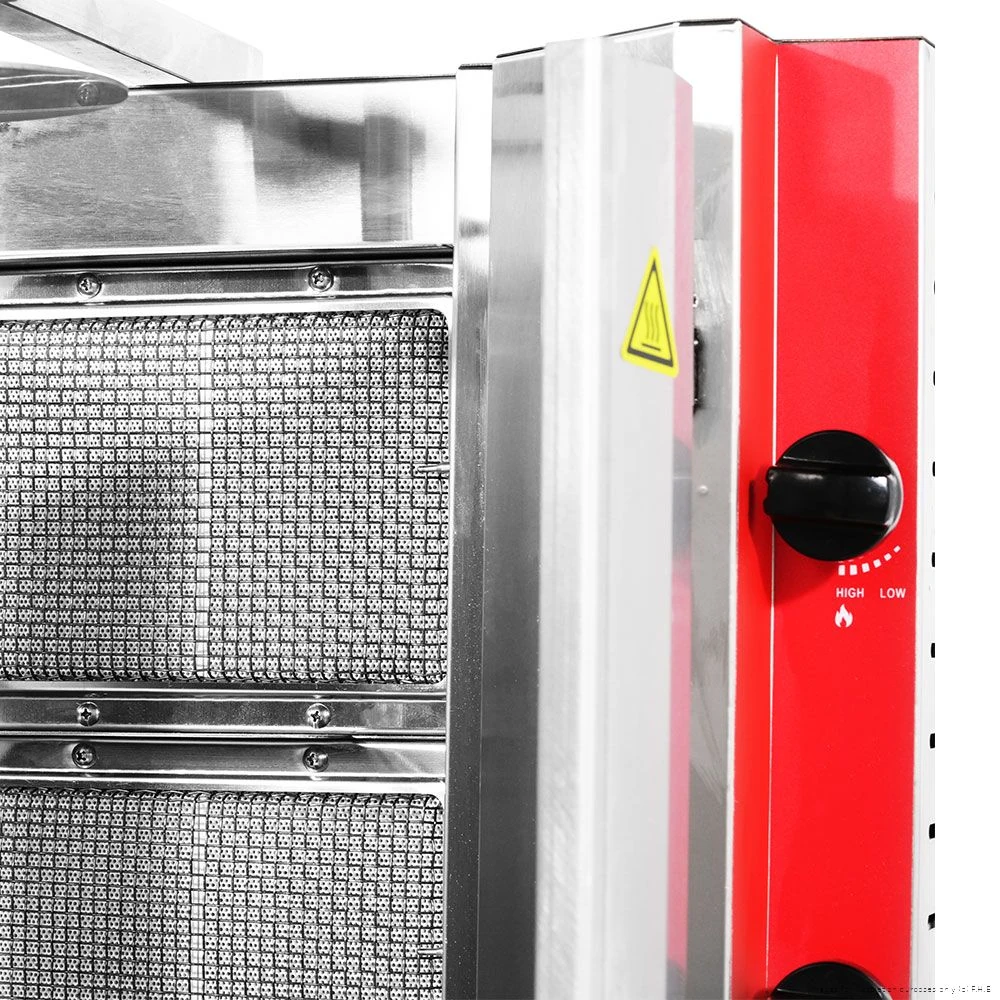

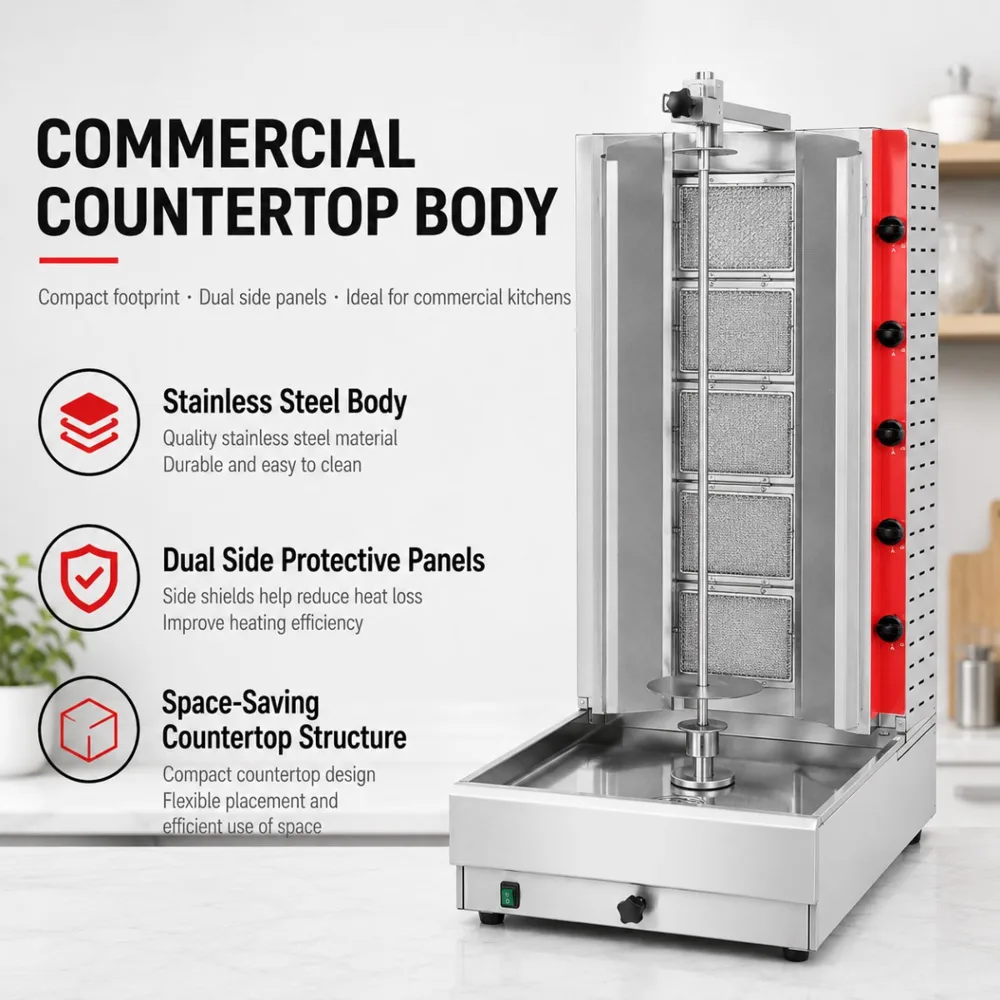

• Infrared ceramic burners and stainless steel side heat shields.

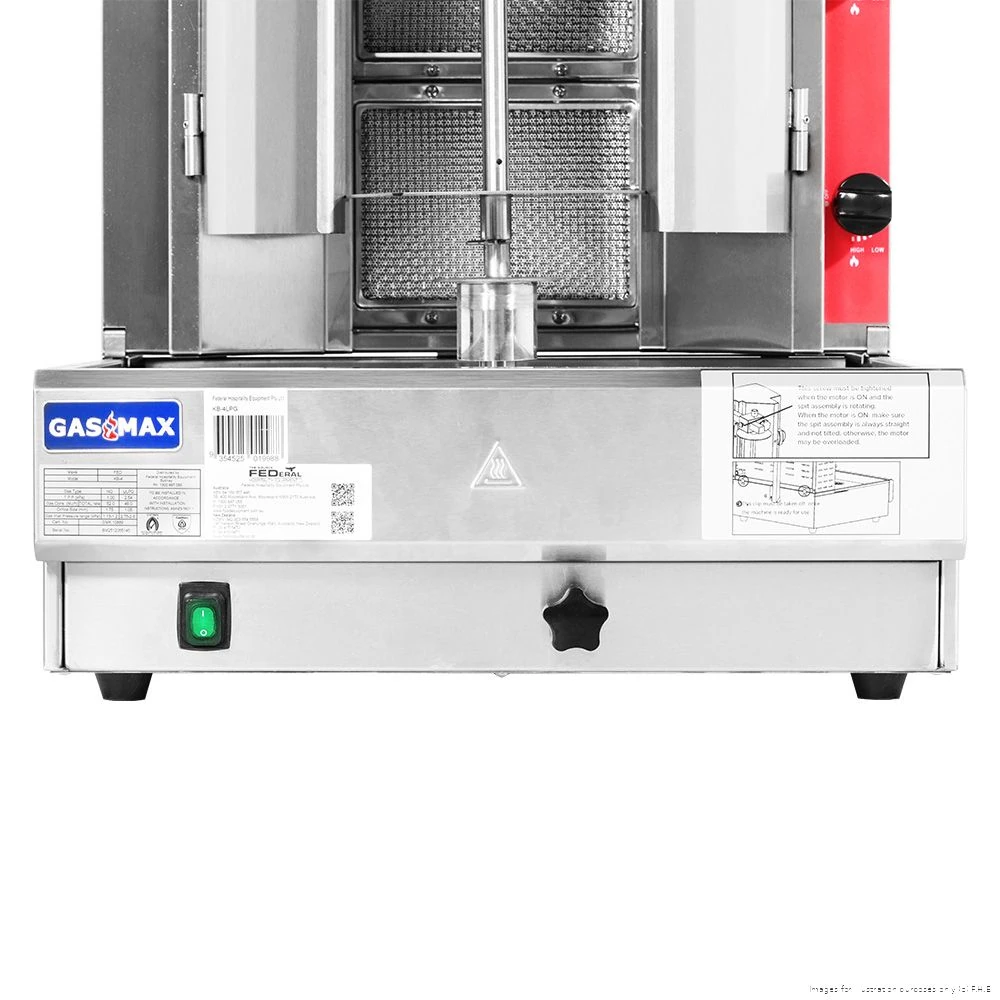

• Motor-driven rotation, pilot ignition and a built-in gas regulator.

• Requires natural gas and a 10A electrical connection.
• The 44 kg net weight needs to be included in handling and support planning.
• Requires a non-combustible installation position, ventilation and additional clearance for servicing.
• The semi-automatic format still requires operator attention to heat settings, carving and cleaning.

• GasMax KB-5LPG Semi-Automatic 5 Burner Kebab Machine – LPG, 56kg Capacity: The Gasmax KB-5LPG offers five burners and the same 56 kg capacity with LPG instead of the KB-5’s natural-gas configuration.
• Gasmax KB-3 Semi-automatic 3 Burner NG Kebab Machine: The Gasmax KB-3 is a semi-automatic natural-gas kebab machine with three burners, compared with the KB-5’s five burners.

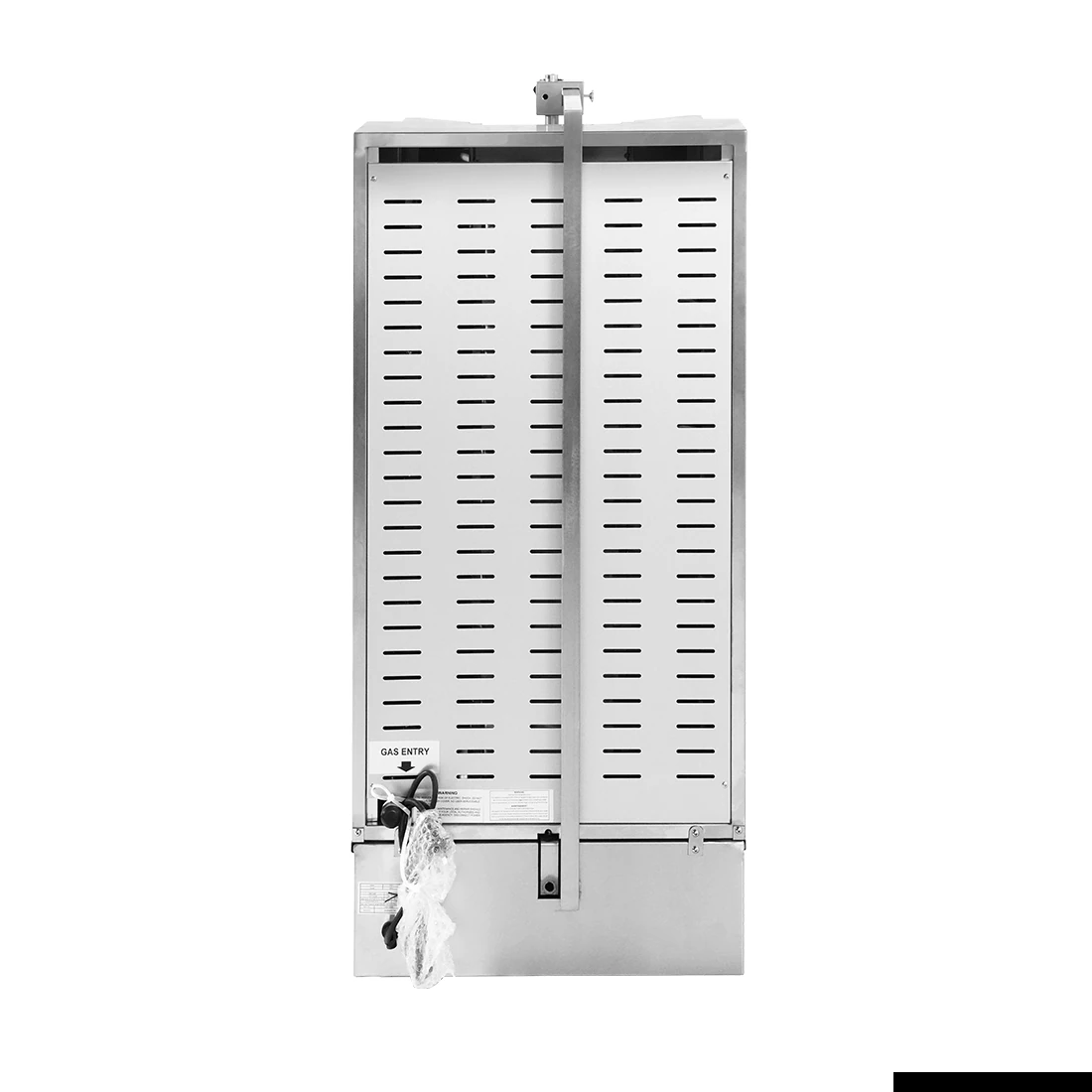

• Gas and electrical supply. Arrange licensed gas installation for the 65 MJ/h natural-gas appliance, its 3/4-inch NPT rear connection and built-in regulator. Provide a suitable 10A power connection and have the installer match the gas supply to the appliance data plate.
• Position and ventilation. Install on a firm, level, non-combustible surface with adequate ventilation and combustion air. Keep combustible materials away and leave airflow paths unobstructed.
• Clearance and gas isolation. Allow 100 mm clearance to non-combustible materials on all sides and 150 mm at the rear for servicing, subject to the installer’s assessment and applicable requirements. An upstream gas shut-off valve must be within the operator’s reach.
• Handling and access. Plan handling around the 44 kg net weight and check the packed dimensions of 650 × 780 × 1300 mm against the delivery access route. Allow working space beyond the dimensions in Key Specifications above.
• Commissioning and daily care. Have qualified personnel complete installation and commissioning, then follow the operating instructions and site procedures for lighting, cleaning and maintenance. Keep the instructions available for operator training and future reference.

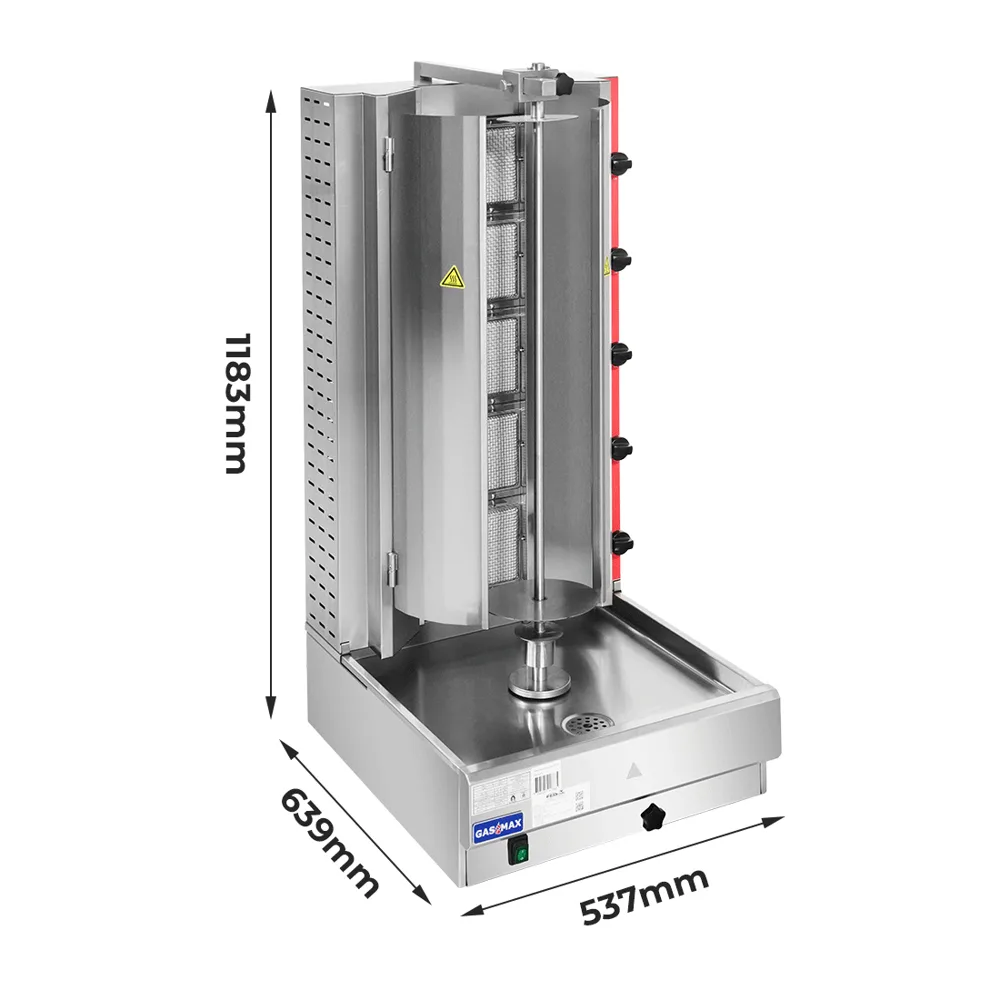

For body dimensions, see Key Specifications above.
