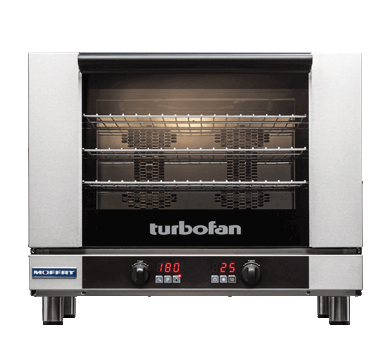

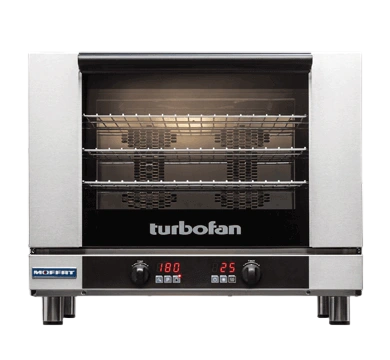

Turbofan E28D4 Digital Convection Oven – 4 Full-Size Trays
Updated:
At KW Commercial Kitchen, we supply the Turbofan E28D4, a full-size digital electric convection oven with capacity for 4 × 460×660 mm sheet pans or 4 × 600×400 mm trays. Designed for precision, it features 20 programmable settings, steam injection, and twin reversing fans for even cooking.
Built for Australian bakeries, cafés & commercial kitchens
The E28D4 combines electronic thermostat control, digital time/temperature display and a stay-cool safe-touch door with vented glass and heavy-duty hinges for long-term reliability.
Key features & specifications
- Pan capacity: 4 × 460×660 mm full-size sheet pans
- Tray capacity: 4 × 600×400 mm trays, 80 mm spacing
- Temperature range: 50°C – 260°C
- Cooking modes: Manual and programmable (20 programs, 3-stage cooking, alarms)
- Steam: Steam injection and manual injection
- Fans: Twin bi-directional reversing 180 mm stainless steel fans
- Lighting: Dual halogen oven lamps
- Door: Drop-down, vented, safe-touch glass with stay-cool handle
- Chamber: Vitreous enamelled interior
- Power/Voltage: 5.8kW, 230–240V, 25A single-phase
- Dimensions (W×D×H): 810 × 762 × 662 mm (including feet)
- Weight: 69.5 kg
- Warranty: 1 year parts & labour
Compliance & safety (AU)
- Electrical: RCM compliant.
- Food safety: FSANZ-aligned hot food preparation.
Convenience & usage advice
- Precise control: Digital display ensures exact timing and consistent results.
- Easy cleaning: Enamelled chamber and easy-clean glass simplify hygiene.
Ideal applications
- Bakeries and patisseries
- Cafés and coffee shops
- Restaurants and catering kitchens
Frequently Asked Questions
1) How do I clean it daily without harming finishes?
Clean chamber with mild detergent and damp cloth; avoid abrasives; clean glass only when cool.
2) What routine maintenance keeps performance stable?
Check door seals monthly; clean filters and fans quarterly; service annually for calibration.
3) What are the power requirements and typical energy use?
Single-phase 230–240V, 25A circuit required; rated at 5.8kW; energy use depends on cooking cycles.
4) What about installation and Australian compliance?
RCM compliant; ensure 100 mm clearance around unit; connect to dedicated 25A circuit.
5) Are spare parts and accessories available?
Wire racks, trays, seals and lamps are available; provide model and serial for exact matches.
Specs source: official datasheet for Turbofan E28D4.
