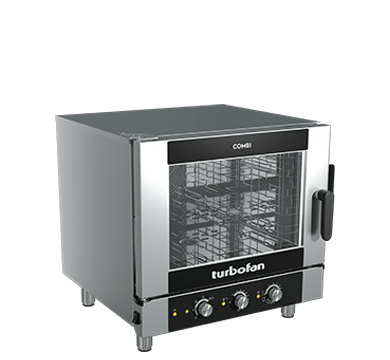

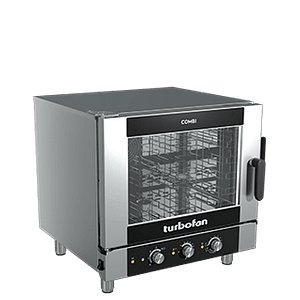

Turbofan EC40M5 Electric Combi Oven – 5 GN Tray Capacity, Manual Controls

Premium Electric Combi Oven for Commercial Kitchens

The Turbofan EC40M5 is engineered for restaurants, cafés, hotels, and catering services seeking exceptional performance in a compact footprint. With manual control over convection, steam, and combi modes, this oven gives chefs the versatility needed for high-quality, consistent cooking results in demanding kitchen environments.

Why Our Experts Recommend Turbofan EC40M5

KW Commercial Kitchen recommends the EC40M5 for its robust 7kW electric heating, 5 x GN1/1 tray capacity, and versatile cooking functions. The oven’s manual interface gives operators full control, while its auto-reverse fan ensures even cooking throughout the cavity. Ideal for roasting, steaming, baking, or combination cooking in professional settings.

Key Features & Expert Recommendations

• Tray Capacity: 5 x GN1/1 full-size trays
• Cooking Modes: Convection (50–260°C), Steam (50–130°C), Combi (50–260°C)
• Heating Power: 7kW
• Dimensions: 777mm (W) x 835mm (D) x 777mm (H)
• Weight: 85kg
• Electrical:
  • 400-415V, 3P+N+E, 7.25kW, 11A/ph
  • OR 230-240V, 1P+N+E, 7.25kW, 32A
• Timer: Manual up to 120 minutes
• Cleaning System: Manual with external hand shower
• Warranty: 12 months
• Optional Stand: Stainless steel with tray runners and adjustable feet (810mm W x 650mm D x 854mm H)

Convenience & Usage Advice

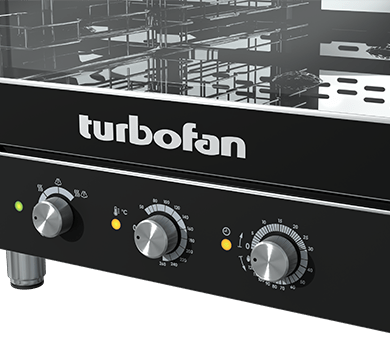

• Manual Simplicity: Ideal for chefs who prefer tactile control without digital complexity
• Even Heat Distribution: Auto-reverse fan ensures uniform cooking across all trays
• Cleaning Tip: Use included hand shower daily for best hygiene and performance

Ideal Applications

• Restaurants & Hotel Kitchens
• Catering & Function Centres
• Gastro Pubs & High-Volume Cafés

Frequently Asked Questions

Is this oven suitable for small commercial kitchens?

Yes. Its compact footprint and full GN tray capacity make it perfect for space-conscious operations without sacrificing performance.

Can I connect it to single-phase or three-phase power?

Yes. It supports both 400–415V 3-phase and 230–240V single-phase connections. Installation must be done by a qualified electrician.

Is the cleaning process automated?

No. This is a manual-clean model, but it includes an external hand shower for convenience and hygiene maintenance.
